Properties
| Version | SCHT, Terminal marker, 44.5 x 19.5 mm, Pitch in mm (P): 5.00 Weidmueller, beige |
| Order No. | 0292460000 |

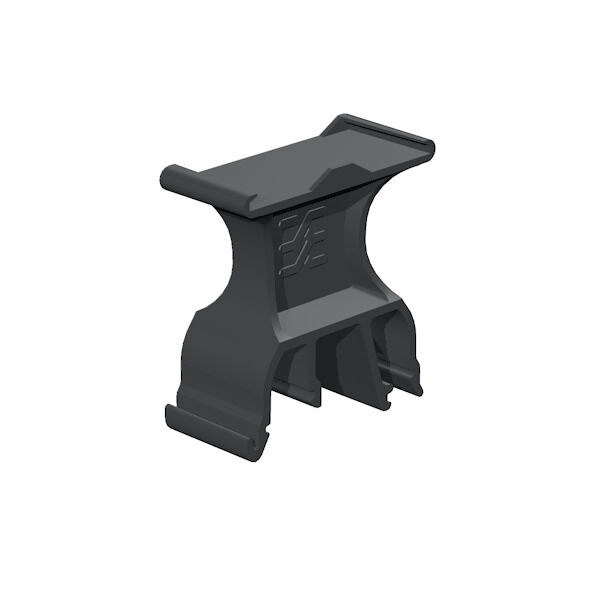

| Type | SCHT 5 |
| GTIN (EAN) | 4008190105440 |
| Qty. | 20 items |
| Height | 44.5 mm |
| Height (inches) | 1.752 inch |
| Width | 19.5 mm |
| Width (inches) | 0.768 inch |
| Net weight | 7.9 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Application/manufacturer | Weidmueller |
| Colour | beige |
| Halogen | No |
| Material | Polyamide 66 |
| Number of markers per combination | 1 Component part = Terminal marker |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Orientation of print | horizontal and vertical |
| Printed characters | without |
| Type of printing | neutral |
| UL 94 flammability rating | V-2 |
| Width | 19.5 mm |
| Pitch in mm (P) | 5 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_58946) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0292460000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0292460000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
Accessories
-
Item No.:1045630000Packaging unit:40 PC
ELS, Insert markers, 40 x 16 mm, yellow
-
Item No.:1045620000Packaging unit:40 PC
ELS, Insert markers, 40 x 16 mm, white
-
Item No.:1631350000Packaging unit:10 PC
Terminal markers, Insert markers, 40 x 16.5 mm, yellow
-
Item No.:1670380000Packaging unit:10 PC
Terminal markers, Insert markers, 40 x 16.5 mm, yellow
-
Item No.:1670370000Packaging unit:10 PC
Terminal markers, Insert markers, 40 x 16.5 mm, white
-
Item No.:1607710000Packaging unit:10 PC
Terminal markers, Insert markers, 40 x 16.5 mm, white
-
Item No.:0294000000Packaging unit:20 PC
Terminal markers, Protective cap, 40 x 16.5 mm, Transparent
