SCM 4CO N

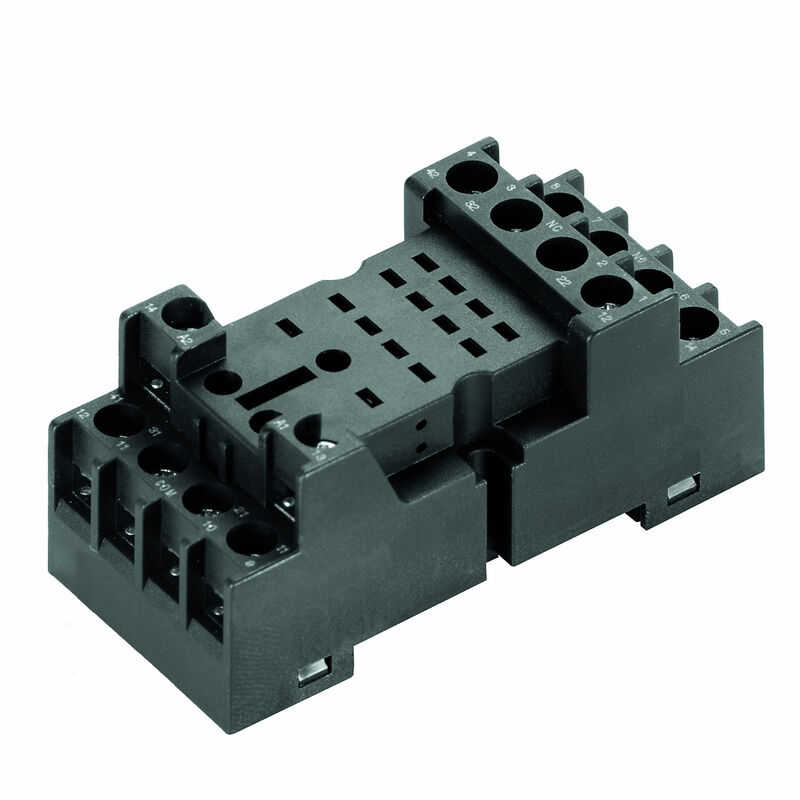

Product image

SCM 4CO N

Tämä tuote ei ole pian enää saatavana.

Vaihtoehtoinen tuote: 3053160000

RIDERSERIES RCM, Relay socket, Number of contacts: 4, CO contact, Continuous current: 10 A, Screw connection

Tuotteen tunnus 8694500000
Lataa tietosivu Descargas de productos Tekninen tuki
Lisävarusteet 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Bemessungsdaten UL Load side General data Insulation coordination Further details of approvals / standards Connection data Classifications

Approvals

认证
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223759

General ordering data

Версия
RIDERSERIES RCM, Relay socket, Number of contacts: 4, CO contact, Continuous current: 10 A, Screw connection
Order No.
8694500000
Type
SCM 4CO N
GTIN (EAN)
4032248366248
Qty.
10 items
Leveransstatus
This article will no longer be available in the future.
Last order date
/Date(1774908000000)/
Alternative product
[3053160000](~/p/3053160000)

Dimensions and weights

深
42 mm
Depth (inches)
1,654 inch
Height
77 mm
Height (inches)
3,031 inch
Width
27 mm
Width (inches)
1,063 inch
Čistá hmotnost
48,96 g

Temperatures

Storage temperature
-40 °C...70 °C
Ambient temperature
-45 °C…70 °C
Humidity
Rel. vlhkost 40 °C / 93 %, bez kondenzace

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Bemessungsdaten UL

Zertifikat-Nr. (cURus)
E223759

Load side

Rated switching voltage
250 V AC
Continuous current
10 A
Max. switching voltage, AC
300 V
AC switching capacity (resistive), max.
2500 VA
Kontaktausführung
4 Wechsler

General data

Mounting rail
TS 35
Barevný
černá

Insulation coordination

Spannungsfestigkeit Eingang - Ausgang
2,5 KVeff / 1 Min.
Schutzart
IP20

Further details of approvals / standards

Standards
UL508
Zertifikat-Nr. (cURus)
E223759

Connection data

Ledaranslutningsteknik
Screw connection
Момент затяжки, мин.
0,5 Nm
Tightening torque, max.
0,7 Nm
Anslutningsområde, märkarea
2,5 mm²
Clamping range, min.
0,5 mm²
Upínací rozsah, max.
2,5 mm²
Klingenmaß
Gr. PH1

Classifications

ETIM 8.0
EC001456
ETIM 9.0
EC001456
ETIM 10.0
EC001456
ECLASS 14.0
27-37-16-03
ECLASS 15.0
27-37-16-03
