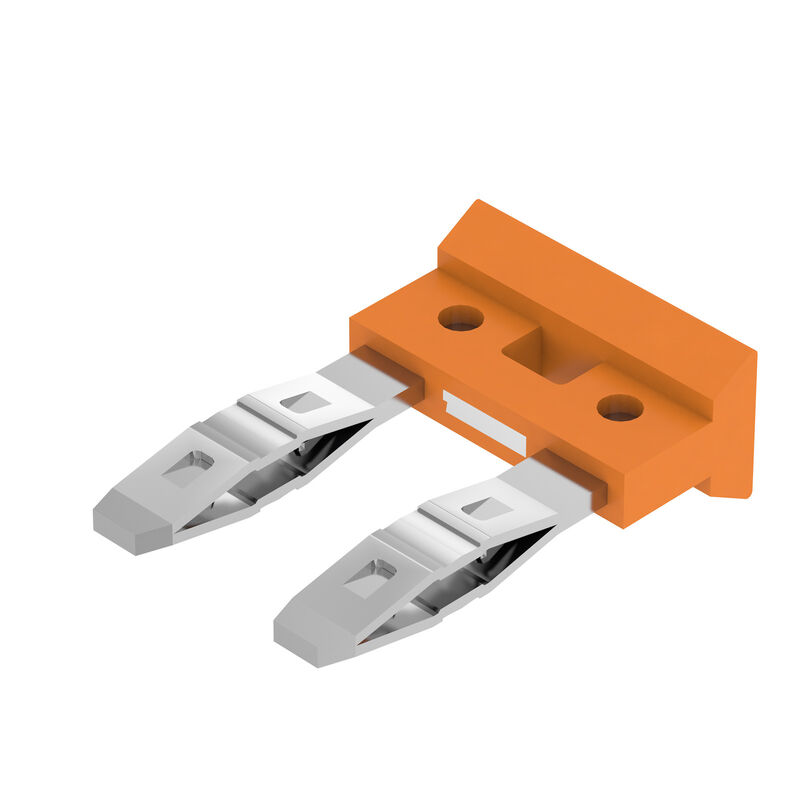

SCM/SDI P CC

D-SERIES, Cross-connector

Item No. 7760056366

Properties

General ordering data

Version	D-SERIES, Cross-connector
Order No.	7760056366
Type	SCM/SDI P CC
GTIN (EAN)	6944169773327
Qty.	10 items

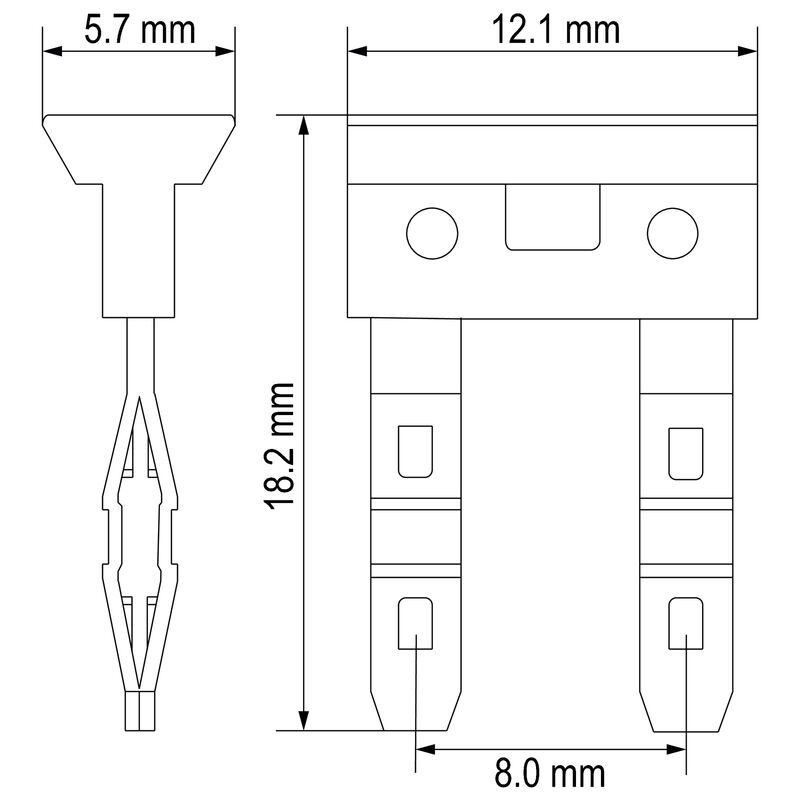

Dimensions and weights

Depth	18.2 mm
Depth (inches)	0.717 inch
Height	5.7 mm
Height (inches)	0.224 inch
Width	12.1 mm
Width (inches)	0.476 inch
Net weight	1 g

Cross-connection data

Rated voltage	250 V
Rated current	2 A
Insulation	Yes
Touch-safe protection	Yes
Colour	orange
Number of cross-connected terminals	2
Number of poles	2
Pitch in mm (P)	8 mm
Type of mounting	Plugged

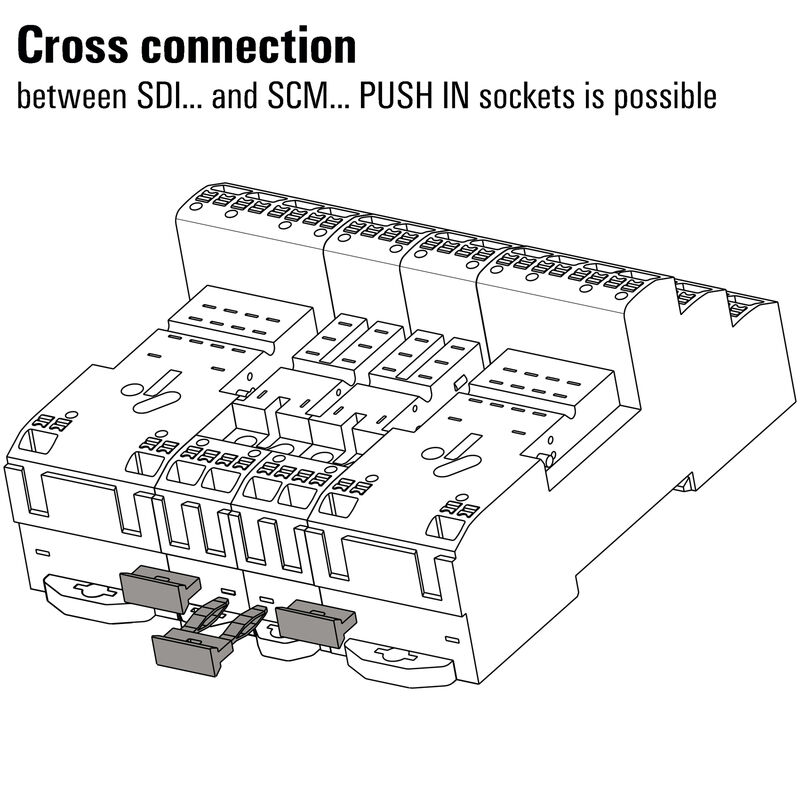

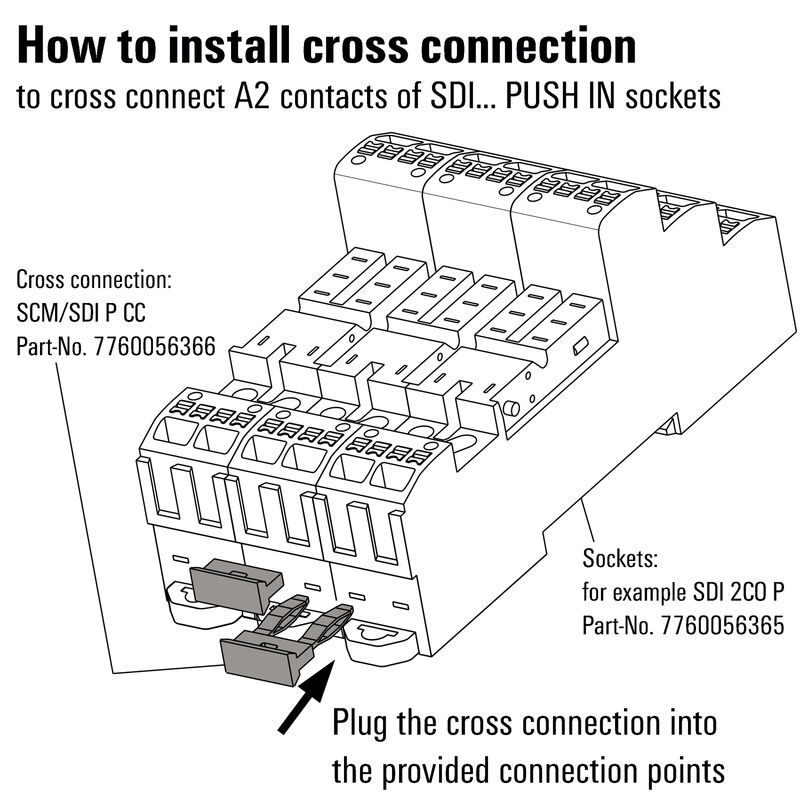

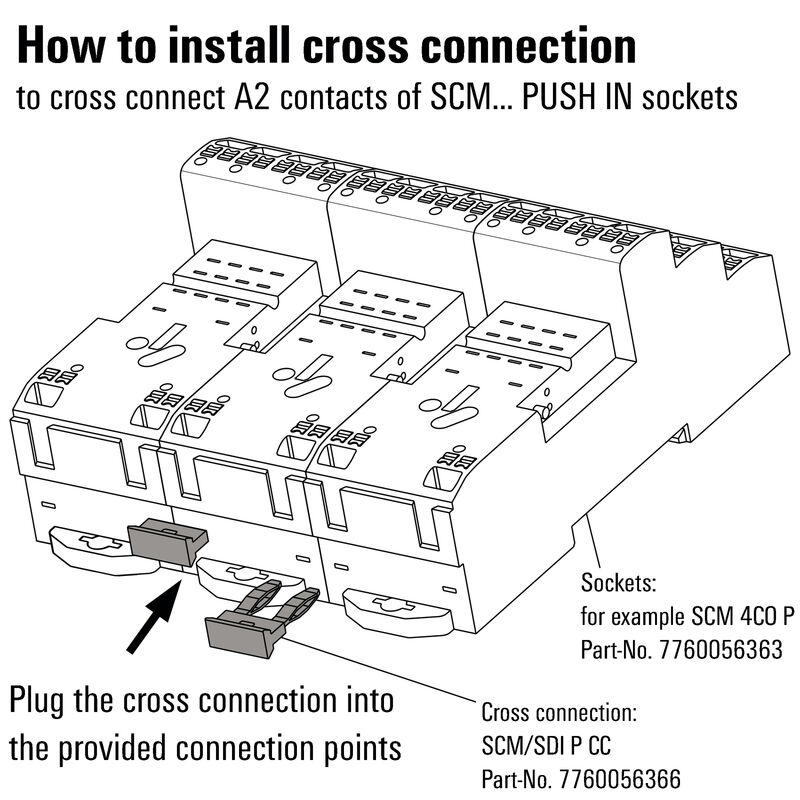

Version	for D-SERIES sockets with PUSH IN connection

General data

Version	for D-SERIES sockets with PUSH IN connection
Colour	orange

Insulation coordination

Rated voltage

250 V

Connection data

Pitch in mm (P)

8 mm

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_50300)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.7760056366)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=7760056366)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002586
ETIM 7.0	EC002586
ETIM 8.0	EC002586
ETIM 9.0	EC002586
ECLASS 9.1	27-37-16-92
ECLASS 10.0	27-37-16-92
ECLASS 11.0	27-37-16-92
ECLASS 12.0	27-37-16-92
ECLASS 13.0	27-37-16-92

Approvals

ROHS

Conform
