Properties

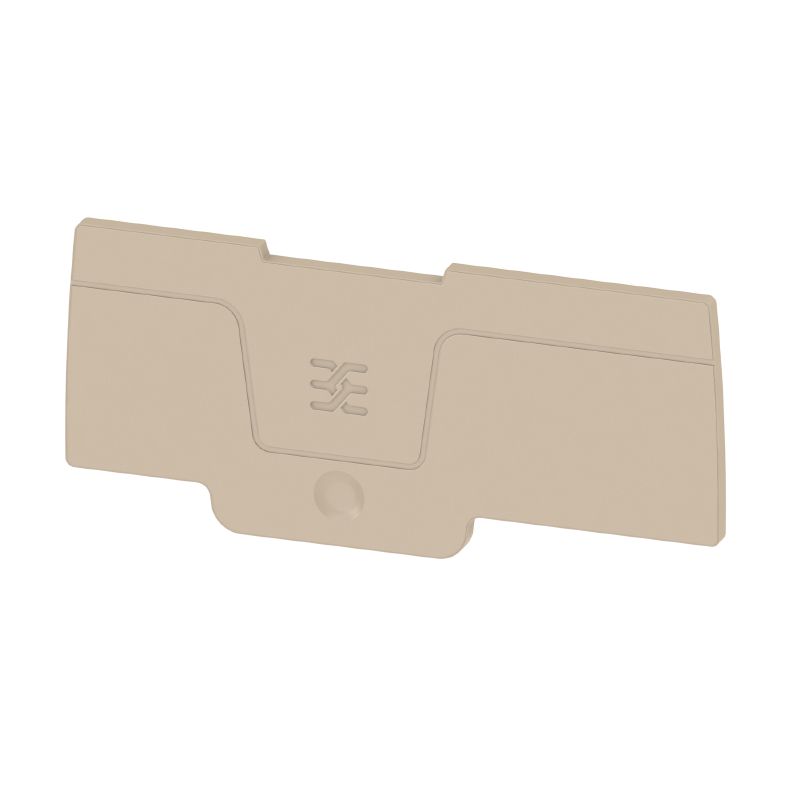

| Version | End plate (terminals), 2 mm, dark beige |
| Order No. | 2874800000 |
| Type | SEP 3C 4 |
| GTIN (EAN) | 4064675649830 |
| Qty. | 20 items |
| Width | 2 mm |
| Width (inches) | 0.079 inch |
| Net weight | 2.652 g |
| Storage temperature | -25 °C... |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_293221) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2874800000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
Is accessory of
-
Item No.:2874850000Packaging unit:50 PC
Feed-through terminal block, SNAP IN, 4 mm², 1000 V, 32 A, Number of connections: 3
-
Item No.:2874840000Packaging unit:50 PC
Feed-through terminal block, SNAP IN, 4 mm², 1000 V, 32 A, Number of connections: 3
-
Item No.:2874890000Packaging unit:50 PC
PE terminal, SNAP IN, 4 mm², 1000 V, Number of connections: 3, Number of levels: 1, Green/yellow, green
Terminal BlocksUniversal rangeSNAP IN technologyS-SeriesFeed-through terminal blocks1-tier4 mm²
Terminal BlocksUniversal rangeSNAP IN technologyS-SeriesModular PE terminal blocks1-tier4 mm²
