Properties

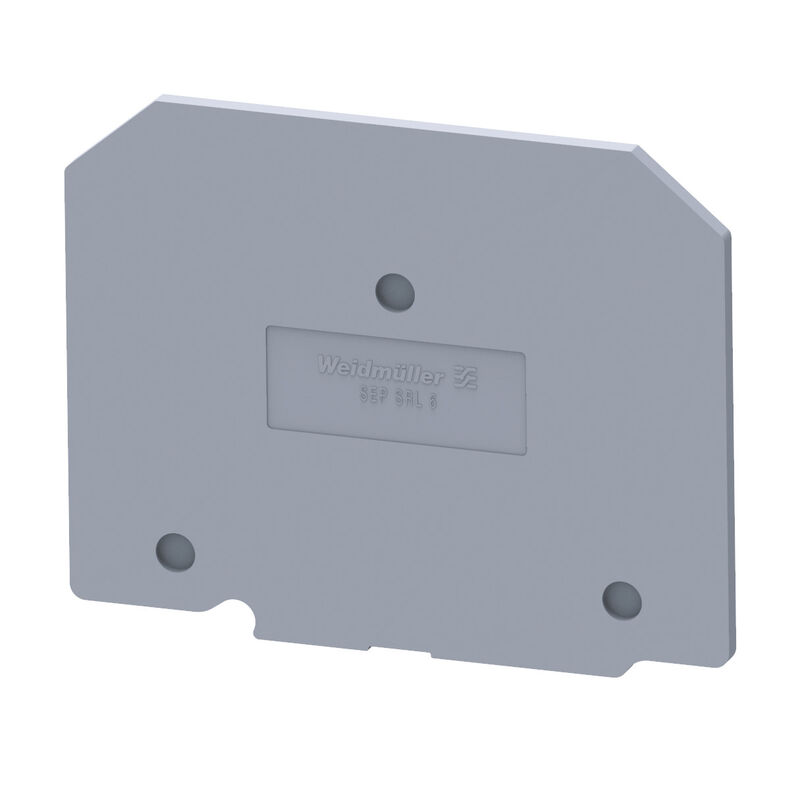

| Version | End plate (terminals), 63.5 mm x 2 mm |
| Order No. | 2615010000 |
| Type | SEP SRL 6 |
| GTIN (EAN) | 4050118653960 |
| Qty. | 50 items |
| Depth | 49 mm |
| Depth (inches) | 1.929 inch |
| Height | 63.5 mm |
| Height (inches) | 2.5 inch |
| Width | 2 mm |
| Width (inches) | 0.079 inch |
| Net weight | 2.6 g |
| Storage temperature | -25 °C...55 °C |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205554) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2615010000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2615010000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2615010000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ROHS | Conform |
Is accessory of
-
Item No.:2614960000Packaging unit:50 PC
Stud terminal, Threaded stud connection, 35 mm², 1000 V, 125 A, Number of connections: 2, M 6, TS 35, TS 32, grey
Terminal BlocksUniversal rangeStud technologySRL-Series35 mm²
