SET BSCZ/SSC 4.00/05/90/3.2 SN BK SO

Download data sheet Related products

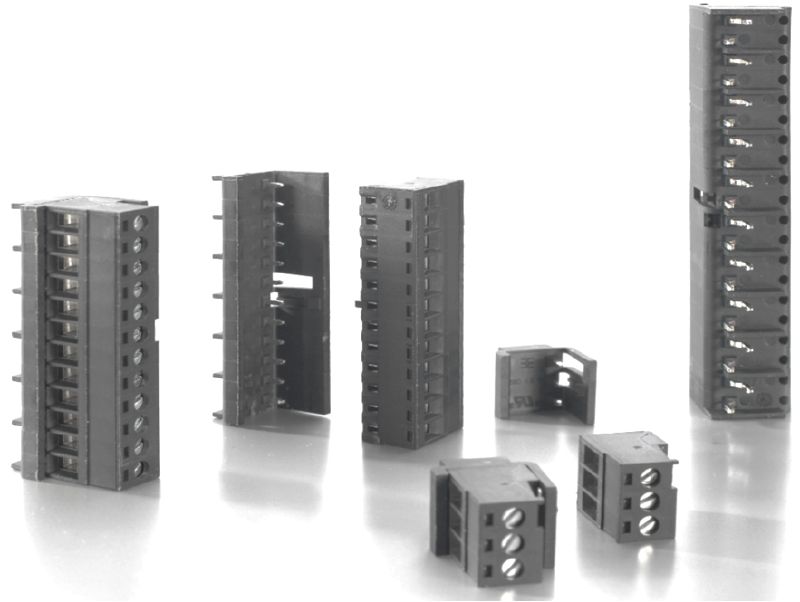

SET BSCZ/SSC 4.00/05/90/3.2 SN BK SO

Item No. 2760990000

Properties

General ordering data

Order No.	2760990000
Type	SET BSCZ/SSC 4.00/05/90/3.2 SN BK SO
GTIN (EAN)	4064675049104
Qty.	90 items
Packaging	Box

Dimensions and weights

Depth	15.7 mm
Depth (inches)	0.618 inch
Height	25.2 mm
Height (inches)	0.992 inch
Width	21.03 mm
Width (inches)	0.828 inch
Net weight	9.69 g

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	18d33292-e933-40ac-8dbe-4904ce2c4ae7

Insulating material	PA
Colour	black
Colour chart (similar)	RAL 9011
UL 94 flammability rating	V-0
Contact material	Cu-alloy
Contact surface	tinned
	-50 °C
Operating temperature, max.	120 °C

Rated data acc. to IEC

Rated current, max. number of poles (Tu=20°C)	13.5 A
Rated current, min. number of poles (Tu=40°C)	16.5 A
Rated voltage for surge voltage class / pollution degree II/2	600 V
Rated voltage for surge voltage class / pollution degree III/2	300 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4,000 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	4,000 kV

Rated data acc. to UL 1059

Institute (cURus)	CURUS
Certificate No. (cURus)	E60693
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Packaging	Box
VPE length	502 mm
VPE width	389 mm
VPE height	220 mm

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_295713)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2760990000)
User Documentation	[ROTARMATE 4.00mm catalog in PDF-format](https://mdcop.weidmueller.com/mediadelivery/asset/900_293850)

Classifications

ETIM 6.0	EC002643
ETIM 7.0	EC002643
ETIM 8.0	EC002643
ETIM 9.0	EC002643
ETIM 10.0	EC002643
ECLASS 9.0	27-44-04-01
ECLASS 9.1	27-44-04-01
ECLASS 10.0	27-44-04-01
ECLASS 11.0	27-46-01-01
ECLASS 12.0	27-46-01-01
ECLASS 13.0	27-46-01-01
ECLASS 14.0	27-46-01-01
ECLASS 15.0	27-46-01-01

Approvals	![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)	E60693
