Properties

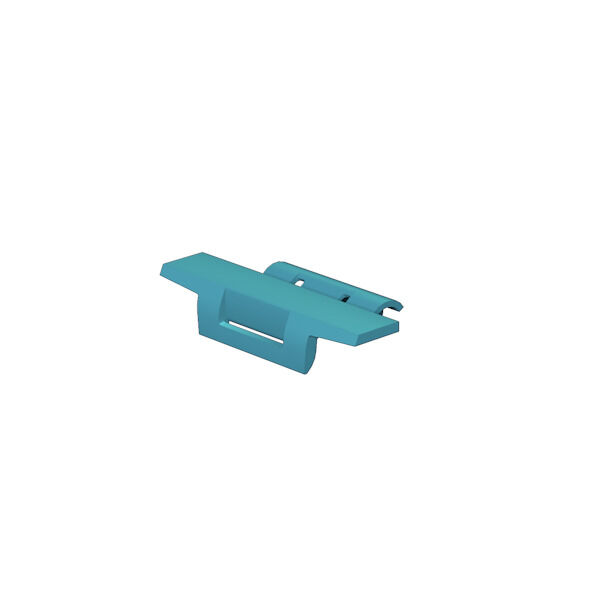

| Version | SlimFix Clip, Conductor and cable markers, 1.5 - 2.5 mm, 21 x 5.8 mm, blue |
| Order No. | 1813220000 |
| Type | SFC 0/21 MC NE BL |
| GTIN (EAN) | 4032248296965 |
| Qty. | 200 items |
| Depth | 7 mm |
| Depth (inches) | 0.276 inch |
| Height | 21 mm |
| Height (inches) | 0.827 inch |
| Width | 5.8 mm |
| Width (inches) | 0.228 inch |
| Net weight | 0.47 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | blue |
| compatible printer | [PRINTJET CONNECT](~/p/2715590000) |
| Halogen | No |
| Material | Polyamide 66 |
| Material colour according to resistance code | 6 |

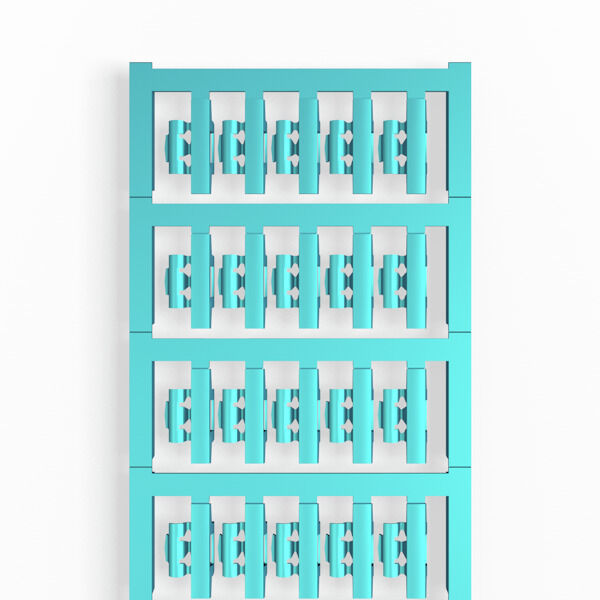

| Number of markers per combination | 1 MultiCard = Conductor and cable markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Recommended industries | Machinery |
| Size of labelling field | 21 x 4.1 mm |
| Type of printing | neutral |
| UL 94 flammability rating | V-2 |
| Width | 5.8 mm |
| Conductor cross-section, max. | 1 mm² |
| Conductor cross-section, min. | 0.5 mm² |
| Conductor O.D. | 1.5 - 2.5 mm |
| Conductor O.D., max. | 2.5 mm |
| Conductor O.D., min. | 1.5 mm |
| Cross-section for connected wire | 0.5 - 1 mm² |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64075) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1813220000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1813220000) |
| Product Change Notification |
[MultiCard Material modification](https://mdcop.weidmueller.com/mediadelivery/asset/900_308560)
[MultiCard Material Modifikation](https://mdcop.weidmueller.com/mediadelivery/asset/900_308561) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
