Properties

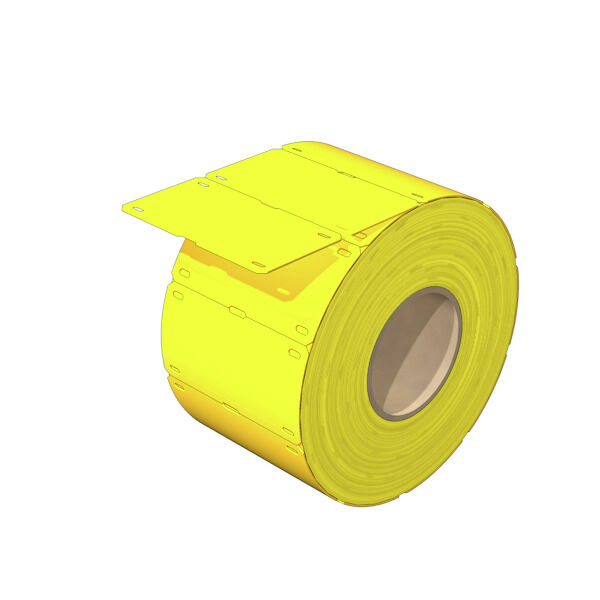

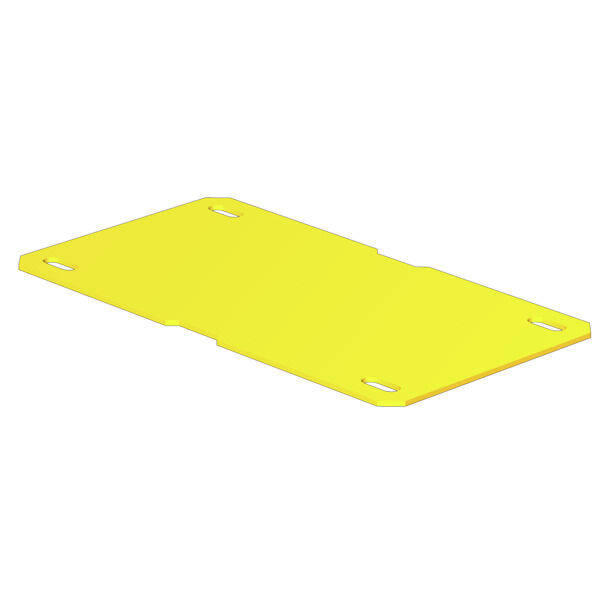

| Version | SlimFix, Conductor and cable markers, 7 - , 60 x 32 mm, yellow |
| Order No. | 2005420000 |
| Type | SFX 30/60 MM GE |
| GTIN (EAN) | 4050118390230 |
| Qty. | 300 items |
| Depth | 0.6 mm |
| Depth (inches) | 0.024 inch |
| Height | 60 mm |
| Height (inches) | 2.362 inch |
| Width | 32 mm |
| Width (inches) | 1.26 inch |
| Net weight | 1.483 g |
| Operating temperature range | -40...90 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | yellow |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material | Polyurethane |
| Number per roll | 300 |
| Operating temperature range | -40...90 °C |
| Operating temperature range, max. | 90 °C |
| Operating temperature range, min. | -40 °C |
| Size of labelling field | 45 x 29.5 mm |
| UL 94 flammability rating | HB |
| Version | halogen-free |
| Width | 32 mm |
| Cable tie passage | Flat |
| Conductor O.D. | 7 - |
| Conductor O.D., min. | 7 mm |
| Halogen | No |
| Suitable cable tie | Plastic |
| Text field height | 29.5 mm |
| Text field width | 45 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65682) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2005420000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2005420000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
