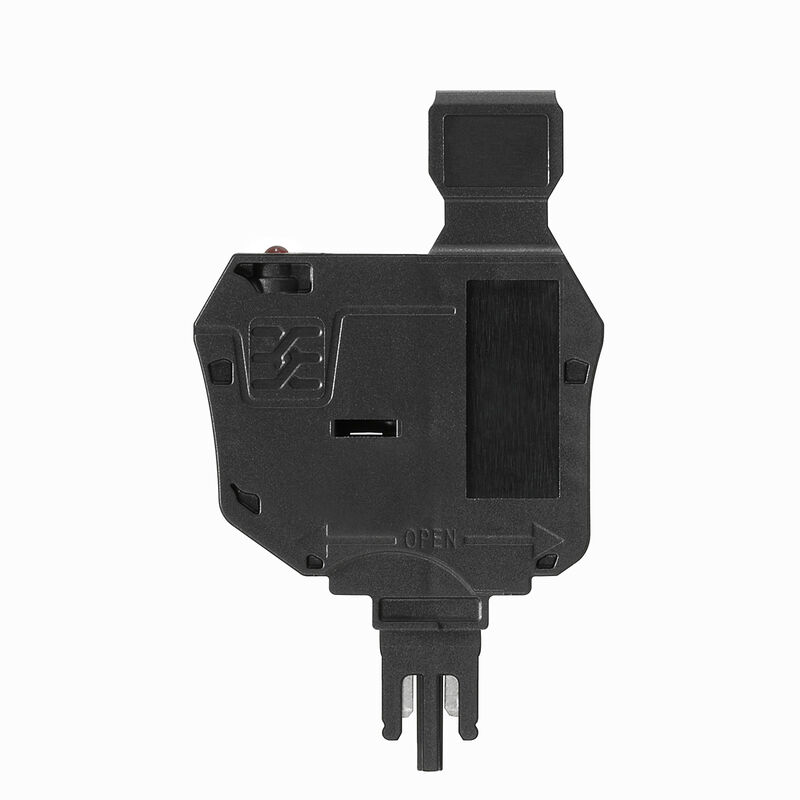

SIHA 3/G20/LD 140-250V

Fuse holder for feed-through modular terminal, black, 2.31 mA, pluggable, V-0, Wemid

Item No. 7921600000

Properties

General ordering data

Version	Fuse holder for feed-through modular terminal, black, 2.31 mA, pluggable, V-0, Wemid
Order No.	7921600000
Type	SIHA 3/G20/LD 140-250V
GTIN (EAN)	4032248322633
Qty.	25 items

Dimensions and weights

Depth	63.1 mm
Depth (inches)	2.484 inch
Height	39.38 mm
Height (inches)	1.55 inch
Width	6 mm
Width (inches)	0.236 inch
Net weight	7.47 g

Temperatures

Operating temperature	-50 °C...120
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7cI
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Insulating material	Wemid
Colour	black
UL 94 flammability rating	V-0

System specifications

Version	Fuse cartridge
End cover plate required	No

Additional technical data

Installation advice	Operating instructions/catalogue
Type of mounting	Plugged

Conductors for clamping (rated connection)

Type of connection

Plug-in connection

General

Installation advice	Operating instructions/catalogue
Operating temperature range, max.	120 °C

Rating data

Rated voltage	250 V
Rated impulse withstand voltage	4 kV
Pollution severity	3

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66628)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.7921600000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=7921600000)
Product Change Notification	[PCN - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_102089) [PCN - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_151770)
User Documentation	[Beipackzettel_SIHA3.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35488) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002848
ETIM 7.0	EC002848
ETIM 8.0	EC002848
ETIM 9.0	EC002848
ECLASS 9.0	27-14-11-92
ECLASS 9.1	27-14-11-92
ECLASS 10.0	27-14-11-92
ECLASS 11.0	27-14-11-92
ECLASS 12.0	27-14-11-92
ECLASS 13.0	27-25-03-90
ECLASS 14.0	27-25-03-90

Approvals

ROHS

Conform
