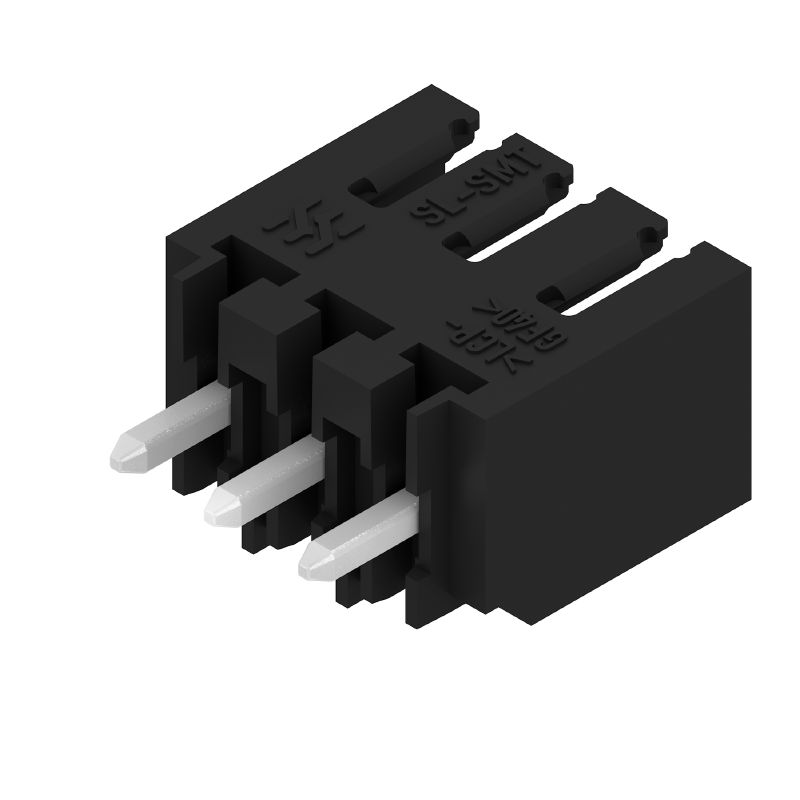

SL-SMT 3.50/03/180G 3.2SN BK RL
PCB plug-in connector, male header, closed side, THT/THR solder connection, 3.50 mm, Number of poles: 3, 180°, Solder pin length (l): 3.2 mm, tinned, black, Tape
Item No.
1044310000
Properties
| Version | PCB plug-in connector, male header, closed side, THT/THR solder connection, 3.50 mm, Number of poles: 3, 180°, Solder pin length (l): 3.2 mm, tinned, black, Tape |
| Order No. | 1044310000 |
| Type | SL-SMT 3.50/03/180G 3.2SN BK RL |
| GTIN (EAN) | 4032248776160 |
| Qty. | 265 items |
| Product data |
IEC: 320 V / 15 A UL: 300 V / 10 A |
| Packaging | Tape |
| Depth | 7.5 mm |
| Depth (inches) | 0.295 inch |
| Height | 14.3 mm |
| Height (inches) | 0.563 inch |
| Height of lowest version | 11.1 mm |
| Width | 11.9 mm |
| Width (inches) | 0.469 inch |
| Net weight | 2.47 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Product family | OMNIMATE Signal - series BL/SL 3.50 |
| Type of connection | Board connection |
| Mounting onto the PCB | THT/THR solder connection |
| Pitch in mm (P) | 3.5 mm |
| Pitch in inches (P) | 0.138 " |
| Outgoing elbow | 180° |
| Number of poles | 3 |
| Number of solder pins per pole | 1 |
| Solder pin length (l) | 3.2 mm |
| Solder pin length tolerance | 0 / -0.3 mm |
| Solder pin dimensions |
d = 1.2 mm
Octagonal |
| Solder pin dimensions = d tolerance | 0 / -0,03 mm |
| Solder eyelet hole diameter (D) | 1.4 mm |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Outside diameter of solder pad | 2.3 mm |
| Template aperture diameter | 2.1 mm |
| L1 in mm | 7 mm |
| L1 in inches | 0.276 " |
| Number of rows | 1 |
| Pin series quantity | 1 |
| Touch-safe protection acc. to DIN VDE 57 106 | finger-safe plugged/ back-of-hand-safe unplugged |
| Touch-safe protection acc. to DIN VDE 0470 | IP20 plugged/ IP10 unplugged |
| Volume resistance | ≤5 mΩ |
| Can be coded | Yes |
| Plugging force/pole, max. | 6 N |
| Pulling force/pole, max. | 6 N |
| Insulating material | LCP GF |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Insulating material group | IIIa |
| Comparative Tracking Index (CTI) | ≥ 175 |
| Moisture Level (MSL) | 1 |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Layer structure of solder connection | 2...3 µm Ni / 5...7 µm Sn |
| Layer structure of plug contact | 2...3 µm Ni / 5...7 µm Sn |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, min. | -30 °C |
| Temperature range, installation, max. | 100 °C |
| tested acc. to standard |
IEC 60664-1
IEC 61984 |
| Rated current, min. number of poles (Tu=20°C) | 15 A |
| Rated current, max. number of poles (Tu=20°C) | 12 A |
| Rated current, min. number of poles (Tu=40°C) | 13 A |
| Rated current, max. number of poles (Tu=40°C) | 10 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 320 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 160 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 2.5 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 2.5 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 2.5 kV |
| Short-time withstand current resistance | 3 x 1s with 100 A |
| Institute (CSA) | CSA |
| Certificate No. (CSA) | 200039-1176845 |
| Rated voltage (Use group B / CSA) | 300 V |
| Rated voltage (Use group D / CSA) | 300 V |
| Rated current (Use group B / CSA) | 10 A |
| Rated current (Use group D / CSA) | 10 A |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Institute (UR) | UR |
| Certificate No. (UR) | E60693 |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 10 A |
| Rated current (Use group D / UL 1059) | 10 A |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| ESD Level packaging | static dissipative |
| Packaging | Tape |
| VPE length | 330 mm |
| VPE width | 330 mm |
| VPE height | 36 mm |
| Tape depth (T2) | 16.5 mm |
| Tape width (W) | 32 mm |
| Tape pocket depth (K0) | 16 mm |
| Tape pocket height (A0) | 7.8 mm |
| Tape pocket width (B0) | 19.2 mm |
| Tape pocket separation (P1) | 16 mm |
| Tape hole separation (E) | 1.75 mm |
| Tape pocket separation (F) | 14.2 mm |
| Tape reel diameter ∅ (A) | 330 mm |
| Surface resistance | Rs = 109 - 1012 Ω |
| Width Pick & Place Pad (WPPP) | 6.8 mm |
| Length Pick & Place Pad (LPPP) | 12.65 mm |
| Diameter of the withdrawal surface (ø Dmax) | 5 mm |
| Protrusion 1 Pick & Place Pad (L01 (PPP)) | 2.5 mm |
| Protrusion 2 Pick & Place Pad (P02 (PPP)) | 2.7 mm |
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Notes |
|
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_89550) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1044310000) |
| Product Change Notification |
[PCN_2015_208_PL30X_SC-SMT_SL_SMT_3.xx_5.xx_neue_Tapeverpackung_Step_3_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49649)
[PCN_2015_208_PL30X_SC-SMT_SL_SMT_3.xx_5.xx_new_Tape_Packaging_Step_3_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49653) [Changeover to ESD bags for “Tape on Reel” products](https://mdcop.weidmueller.com/mediadelivery/asset/900_293692) [Umstellung auf ESD-Beutel bei „Tape on Reel“ Produkten](https://mdcop.weidmueller.com/mediadelivery/asset/900_293693) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061)
[FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) |
| White paper surface mount technology | [Download Whitepaper](LINK/wp_smt_EN.html) |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| ETIM 8.0 | EC002637 |
| ETIM 9.0 | EC002637 |
| ECLASS 9.0 | 27-44-04-02 |
| ECLASS 9.1 | 27-44-04-02 |
| ECLASS 10.0 | 27-44-04-02 |
| ECLASS 11.0 | 27-46-02-01 |
| ECLASS 12.0 | 27-46-02-01 |
| ECLASS 13.0 | 27-46-02-01 |
| ECLASS 14.0 | 27-46-02-01 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
