Properties

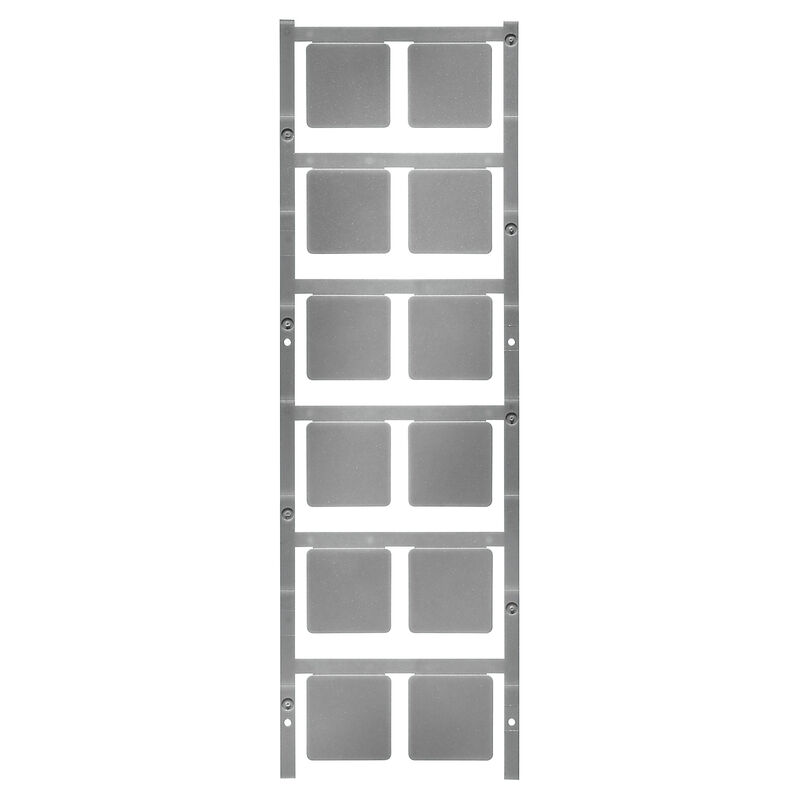

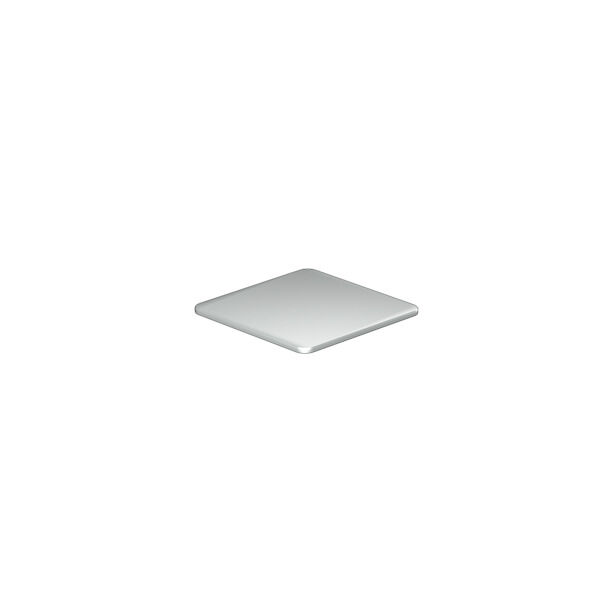

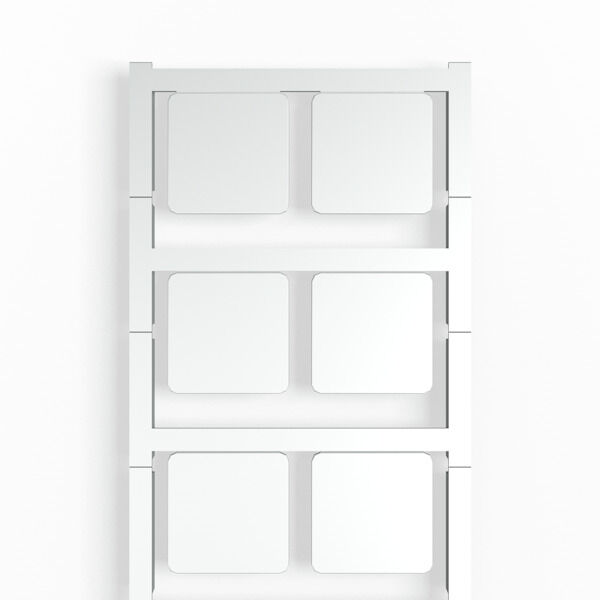

| Version | SwitchMark, Device markers, 27 x 27 mm, SwitchMark holder, silver |
| Order No. | 1773230000 |
| Type | SM 27/27 MC NE SI |
| GTIN (EAN) | 4032248139422 |
| Qty. | 60 items |
| Alternative product | [1079510000](~/p/1079510000) |
| Depth | 1 mm |
| Depth (inches) | 0.039 inch |
| Height | 27 mm |
| Height (inches) | 1.063 inch |
| Width | 27 mm |
| Width (inches) | 1.063 inch |
| Net weight | 1.82 g |
| Operating temperature range | -40...100 °C |
| Application/manufacturer | SwitchMark holder |
| Colour | silver |
| Halogen | No |
| Material | Polyamide 66 |
| Number of markers per combination | 1 MultiCard = Device markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| UL 94 flammability rating | V-2 |
| Width | 27 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63562) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1773230000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1773230000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1773230000&norm=0) |
| Product Change Notification |
[MultiCard Material modification](https://mdcop.weidmueller.com/mediadelivery/asset/900_308560)
[MultiCard Material Modifikation](https://mdcop.weidmueller.com/mediadelivery/asset/900_308561) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
