Properties

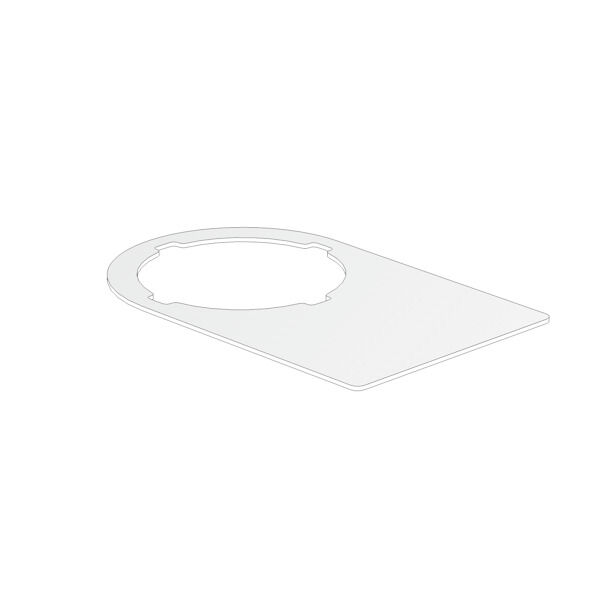

| Version | SwitchMark, Device markers, 47.75 x 27 mm, silver |
| Order No. | 2621130000 |
| Type | SM-FO 27/18-22 MM SI |
| GTIN (EAN) | 4050118625912 |
| Qty. | 500 items |
| Depth | 0.55 mm |
| Depth (inches) | 0.022 inch |
| Height | 47.75 mm |
| Height (inches) | 1.88 inch |
| Width | 27 mm |
| Width (inches) | 1.063 inch |
| Diameter | 23 mm |
| Net weight | 0.814 g |
| Operating temperature range | -30...80 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | PE-foam with acrylic adhesive |
| Approval acc. to UL 969 | Yes |
| Colour | silver |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material | Polyester |

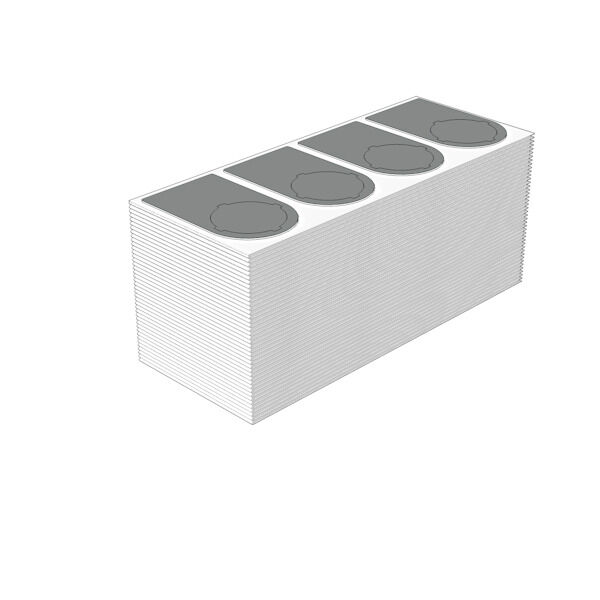

| Number per roll | 500 |
| Operating temperature range | -30...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -30 °C |
| Size of labelling field | 29.5 x 20.25 mm |
| UL 94 flammability rating | V-0 |
| Version |
halogen-free
Self-adhesive |
| Width | 27 mm |
| Diameter | 23 mm |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2621130000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
