Properties
| Version | RIDERSERIES RCL, Flange-mounted housing, Number of contacts: 2, CO contact, Continuous current: 12 A, Print connection |
| Order No. | 8690850000 |
| Type | SRC 2CO PCB |
| GTIN (EAN) | 4032248361533 |
| Qty. | 100 items |

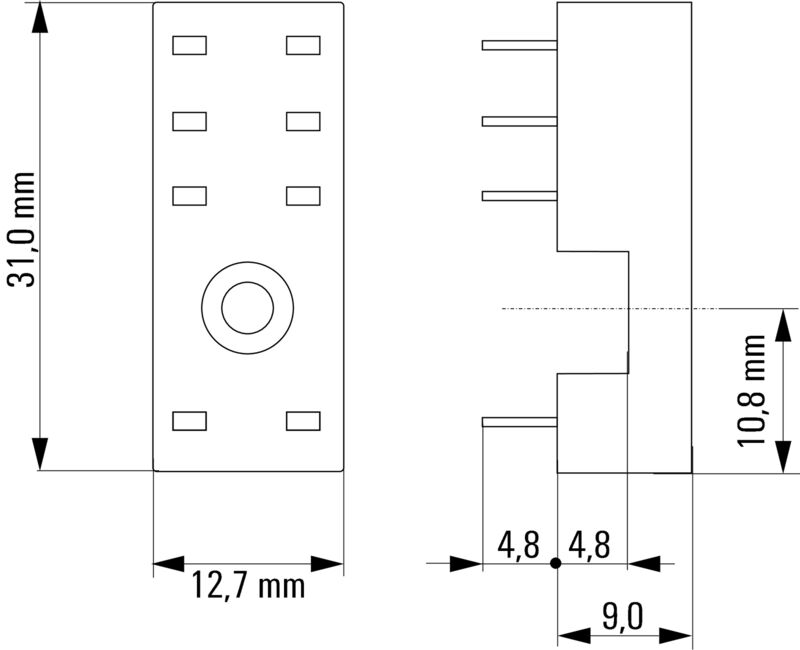

| Height | 9 mm |
| Height (inches) | 0.354 inch |
| Width | 12.7 mm |
| Width (inches) | 0.5 inch |
| Length | 31 mm |
| Length (inches) | 1.22 inch |
| Net weight | 3.34 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -40 °C...70 °C |
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E223759 |
| Rated switching voltage | 250 V AC |
| Continuous current | 12 A |
| Max. switching voltage, AC | 300 V |
| AC switching capacity (resistive), max. | 3000 VA |
| Contact type | 2 CO contact |
| Colour | black |
| Rated voltage | 300 V |
| Pollution severity | 2 |
| Dielectric strength, Input/Output | 2.5 kVeff / 1 Min. |
| Dielectric strength of neighbouring contacts | 2.5 kVeff / 1 Min. |
| Dielectric strength of open contact | 1 kVeff / 1 min |
| Protection degree | IP20 |
| Standards | UL508 |
| Certificate No. (cURus) | E223759 |
| Wire connection method | Print connection |
| Pitch in mm (P) | 5 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8690850000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001456 |
| ETIM 7.0 | EC001456 |
| ETIM 8.0 | EC001456 |
| ETIM 9.0 | EC001456 |
| ECLASS 9.0 | 27-37-16-03 |
| ECLASS 9.1 | 27-37-16-03 |
| ECLASS 10.0 | 27-37-16-03 |
| ECLASS 11.0 | 27-37-16-03 |
| ECLASS 12.0 | 27-37-16-03 |
| ECLASS 13.0 | 27-37-16-03 |
| ECLASS 14.0 | 27-37-16-03 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E223759 |
