Properties
| Version | RIDERSERIES RCI, Label |
| Order No. | 8869530000 |

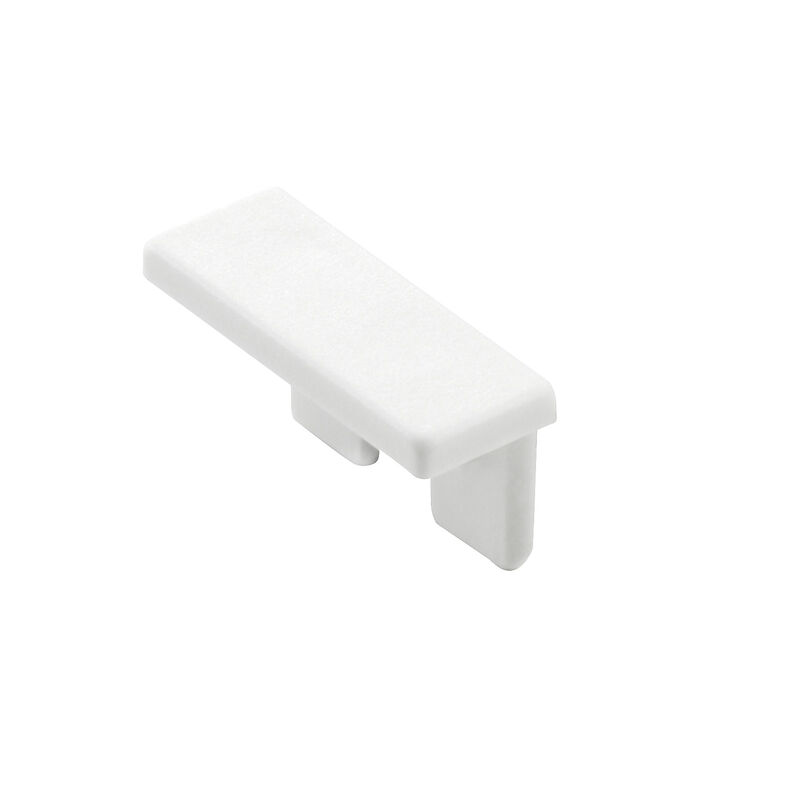

| Type | SRC-I MARK |
| GTIN (EAN) | 4032248614479 |
| Qty. | 10 items |
| Depth | 8.5 mm |
| Depth (inches) | 0.335 inch |
| Height | 8 mm |
| Height (inches) | 0.315 inch |
| Width | 15 mm |
| Width (inches) | 0.591 inch |
| Net weight | 0.5 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...70 °C |
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Printing | Individual markers / Not for use with PRINT JET |
| Colour | white |
| UL 94 flammability rating | V-0 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66731) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8869530000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8869530000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
Accessories
-
Item No.:1880100000Packaging unit:200 PC
ESG, Device markers x 15 mm, PA 66, Colour: white, Self-adhesive
-
Item No.:1880130000Packaging unit:200 PC
ESG, Device markers x 15 mm, PA 66, Colour: yellow, Self-adhesive
MarkersDevice markersMultiCardESGESG 6/15Blank
