Properties
| Version | Sheathing strippers |
| Order No. | 9918060000 |
| Type | STRIPPER PC |
| GTIN (EAN) | 4032248359172 |
| Qty. | 1 items |
| Depth | 25 mm |
| Depth (inches) | 0.984 inch |
| Height | 35 mm |
| Height (inches) | 1.378 inch |
| Width | 125 mm |
| Width (inches) | 4.921 inch |
| Net weight | 44.4 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |

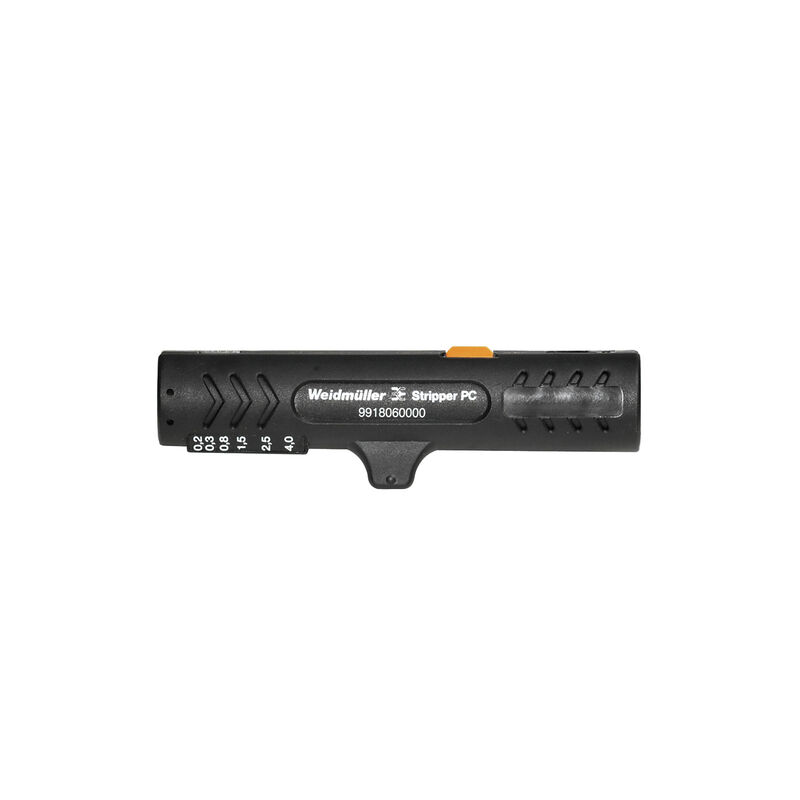

| Description of article | Cable sheathing stripper for data communication lines with 5-15 mm O.D. ø |
| Cable type | Data cable / telecommunications and IT |
| Conductor cross-section, max. | 4 mm² |
| Conductor cross-section, min. | 0.25 mm² |
| Max. conductor diameter | 15 mm |
| Min. conductor diameter | 5 mm |
| Stripping range AWG, max. | 12 AWG |
| Stripping range AWG, min. | 24 AWG |
| Stripping range, min. | 0.25 mm² |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000163 |
| ETIM 7.0 | EC000163 |
| ETIM 8.0 | EC000163 |
| ETIM 9.0 | EC000163 |
| ECLASS 9.0 | 21-04-90-90 |
| ECLASS 9.1 | 21-04-37-06 |
| ECLASS 10.0 | 21-04-90-90 |
| ECLASS 11.0 | 21-04-90-90 |
| ECLASS 12.0 | 21-04-90-90 |
| ECLASS 13.0 | 21-04-90-90 |
| ECLASS 14.0 | 21-04-90-90 |
