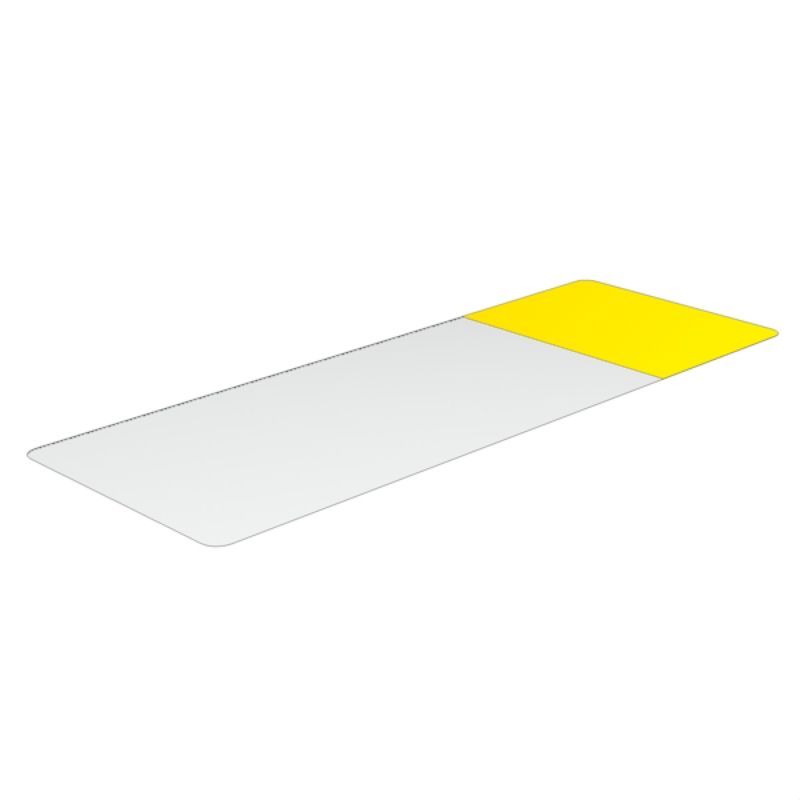

THM, Conductor and cable markers, 8 - 21.7 mm, 33.5 x 93.1 mm, yellow

Tuotteen tunnus 1774410000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 1 Samankaltaiset tuotteet 27
General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications Approvals

General ordering data

Version
THM, Conductor and cable markers, 8 - 21.7 mm, 33.5 x 93.1 mm, yellow
Order No.
1774410000
Type
THM WO 33.5/93.1 GE
GTIN (EAN)
4032248148592
Qty.
1  items

Dimensions and weights

Depth
0,025  mm
Depth (inches)
0,001  inch
Height
33,5  mm
Height (inches)
1,319  inch
Width
93,1  mm
Width (inches)
3,665  inch
Net weight
281  g

Temperatures

Operating temperature range
-40...150 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Adhesive
Polyacrylate adhesive
Colour
yellow
Halogen
No
Material
Polyester film
Material colour according to resistance code
4
Number of markers per combination
1 Label reel = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    Label reel
Number per roll
500
Operating temperature range
-40...150 °C
Operating temperature range, max.
150  °C
Operating temperature range, min.
−40  °C
Printed characters
without
Size of labelling field
33.5 x 25 mm
Type of printing
neutral
UL 94 flammability rating
V-0
Version
Self-adhesive
Width
93,1  mm

Conductor and cable markers

Conductor cross-section, max.
400  mm²
Conductor cross-section, min.
0,75  mm²
Conductor O.D.
8 - 21.7 mm
Conductor O.D., max.
21,7  mm
Conductor O.D., min.
8  mm
Cross-section for connected wire
0.75 - 400 mm²
Halogen
No
Text field height
25  mm
Text field width
33,5  mm

Classifications

ETIM 6.0
EC001530
ETIM 7.0
EC001530
ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 9.0
27-40-04-01
ECLASS 9.1
27-40-04-01
ECLASS 10.0
27-40-04-01
ECLASS 11.0
27-28-11-02
ECLASS 12.0
27-28-11-02
ECLASS 13.0
27-28-11-02
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02

Approvals

ROHS
Conform
