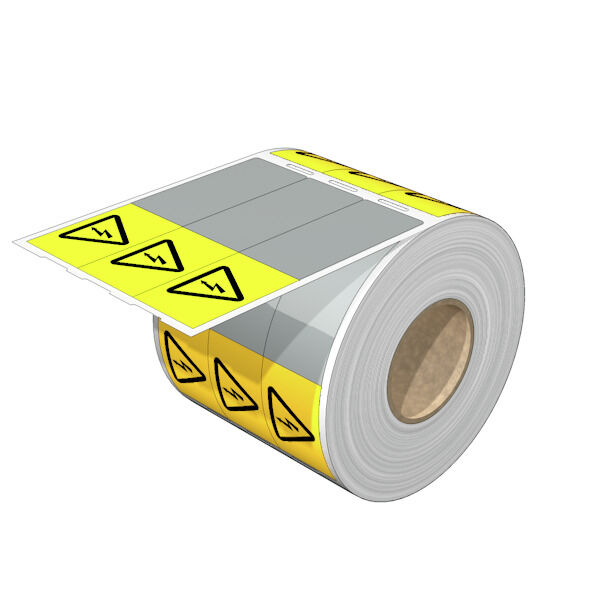

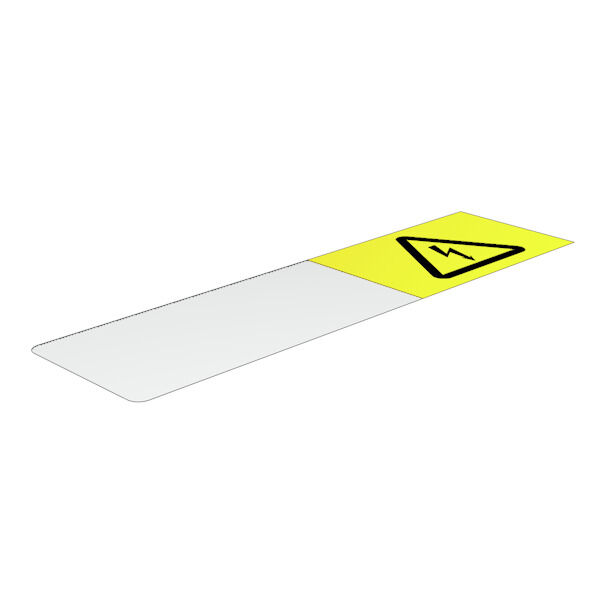

THM, Señalizadores para cables y conductores, 12.7 mm, 25.4 x 95.3 mm, blanco/amarillo

Item No. 1420020000
Download data sheet Engineering Support Product Downloads
Related products 25
Omologazioni Allgemeine Bestelldaten Abmessungen und Gewichte Temperatures Umweltanforderungen General data Conductor and cable markers Besorolások

Omologazioni

ROHS
Conforme

Allgemeine Bestelldaten

Version
THM, Señalizadores para cables y conductores, 12.7 mm, 25.4 x 95.3 mm, blanco/amarillo
Order No.
1420020000
Type
THM WO VIN 25.4/95.2 BL
GTIN (EAN)
4050118223514
Ilość
1 szt.

Abmessungen und Gewichte

Depth
0.065 mm
Profundidad (pulgadas)
0.003 inch
Height
25.4 mm
Magasság (coll)
1 inch
Width
95.3 mm
폭 (인치)
3.752 inch
Net weight
545 g

Temperatures

Operating temperature range
-40...80 °C

Umweltanforderungen

RoHS Compliance Status
Konform ohne Ausnahme
REACH SVHC
No SVHC superiori a 0,1 wt%

General data

Adhesive
Polyacrylate adhesive
Approval acc. to UL 969
No
Basic material
Vinyl film
Colour
white / yellow
Halogen
Yes
Imprint
Lightning
Number of markers per combination
1 Label reel = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    Label reel
Number per roll
1000
Operating temperature range
-40...80 °C
Operating temperature range, max.
80 °C
Operating temperature range, min.
-40 °C
Printed characters
without
Size of labelling field
40 x 25.4 mm
Type of printing
neutral
UL 94 flammability rating
V-0
Version
Samolepicí
Width
95.3 mm

Conductor and cable markers

Conductor cross-section, max.
120 mm²
Conductor cross-section, min.
0.75 mm²
Conductor O.D.
12.7 mm
Conductor O.D., max.
12.7 mm
Cross-section for connected wire
0.75 - 120 mm²
Halogen
Yes

Besorolások

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
