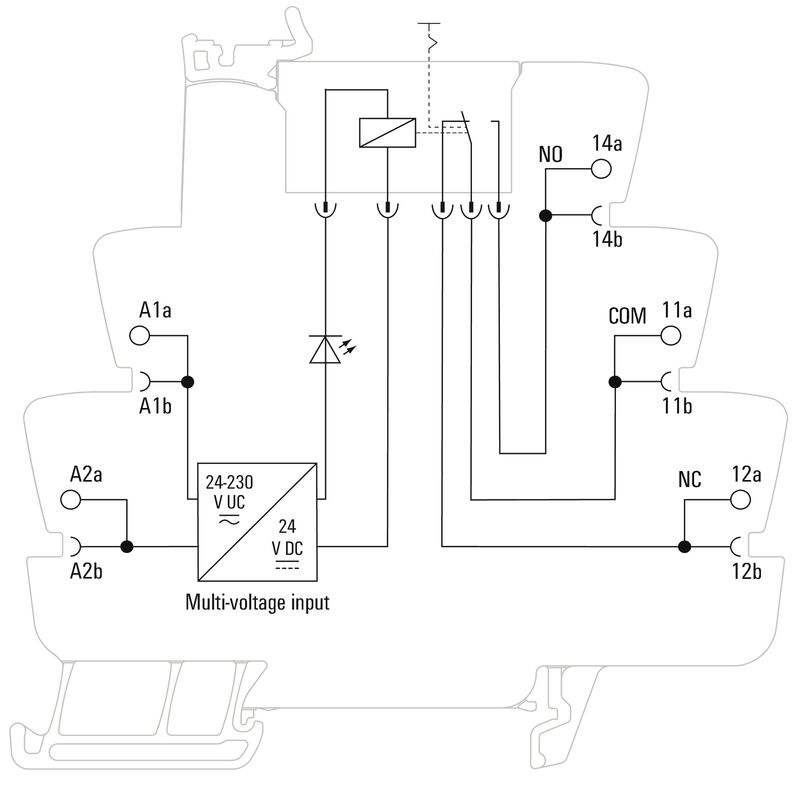

TRP 24-230VUC 1CO AGSNO ED2 PB — Product image

Similar to illustration

Download data sheet

TRP 24-230VUC 1CO AGSNO ED2 PB

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 6 A, PUSH IN, Test button available: Yes

Item No. 2855910000

Properties

General ordering data

Version	TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 6 A, PUSH IN, Test button available: Yes
Order No.	2855910000
Type	TRP 24-230VUC 1CO AGSNO ED2 PB
GTIN (EAN)	4064675534211
Qty.	10 items

Dimensions and weights

Depth	87.8 mm
Depth (inches)	3.457 inch
Height	89.4 mm
Height (inches)	3.52 inch
Width	6.4 mm
Width (inches)	0.252 inch
Net weight	32.61 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...60 °C
Humidity	5-95% relative humidity, T_u = 40°C, without condensation

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9

Rated data UL

Ambient temperature (operational), max.	60 °C
Output current derating (ohmic)	6 A @ 50 °C 5 A @ 60 °C
Connection cross-section AWG, min.	AWG 26
Connection cross-section AWG, max.	AWG 14
Type of conductor	rigid copper conductor flexible copper conductor
Pollution severity level	2

Control side

Rated control voltage	24…230 V UC ±10 %
Rated current AC	19.0 mA @ 24 V AC 3.0 mA @ 230 V AC
Rated current DC	11.0 mA @ 24 V DC 1.1 mA @ 230 V DC
Power rating	265 mW @ 24 V DC 255 mW @ 230 V DC 455 mVA @ 24 V AC 690 mVA @ 230 V AC
Status indicator	Green LED
Protective circuit	Rectifier
Coil voltage of the replacement relay deviating from the rated control voltage	Yes
Coil voltage of the replacement relay	24 V DC

Load side

Rated switching voltage	250 V AC
Continuous current	6 A
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	250 V
Max. switching voltage, DC	250 V
Min. switching power	100 mA @ 12 V
Inrush current	30 A / 20 ms
AC switching capacity (resistive), max.	1500 VA
DC switching capacity (resistive), max.	144 W @ 24 V
Switch-on delay	≤ 40 ms
Switch-off delay	≤ 80 ms
Contact type	1 CO contact (AgSnO)
Mechanical service life	10 x 10⁶ switching cycles

General data

Operating altitude	≤ 2000 m above sea level
Rail	TS 35
Test button available	Yes
Version of test button	Lockable test button
Mechanical switch position indicator	No
Colour	black
UL94 flammability rating component	Component: Housing UL94 flammability rating: V-0 Component: Retaining clip UL94 flammability rating: V-0 Component: Pusher UL94 flammability rating: V-0

Insulation coordination

Rated voltage	300 V
Pollution severity	2
Surge voltage category	III
Clearance and creepage distances for control side - load side	≥ 6 mm
Dielectric strength for control side - load side	3.51 kV_eff /1 min.
Type of isolation at input and output	reinforced insulation
Dielectric strength of open contact	1 kV_eff / 1 min
Dielectric strength to mounting rail	4 kV_eff / 1 Min.
Impulse withstand voltage	6 kV (1.2/50 µs)
Protection degree	IP20

Further details of approvals / standards

Certificate no. (cULus)

E141197

Connection data

Wire connection method	PUSH IN
Stripping length, rated connection	9 mm
Clamping range, rated connection	1.5 mm²
Clamping range, min.	0.14 mm²
Clamping range, max.	2.5 mm²
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section AWG, max.	AWG 14
Wire cross-section, solid, min.	0.14 mm²
Wire cross-section, solid, max.	1.5 mm²
Wire cross-section, solid, min. (AWG)	AWG 26
Wire cross-section, solid, max. (AWG)	AWG 16
Wire connection cross section, finely stranded, min.	0.14 mm²
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire cross-section, finely stranded, min. (AWG)	AWG 26
Wire cross-section, finely stranded, max. (AWG)	AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	0.14 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	1.5 mm²
Twin wire-end ferrules, min.	0.5 mm²
Twin wire-end ferrules, max.	1 mm²
Blade size	0.4 x 2.0 mm

Downloads

Approval/Certificate/Document of Conformity	[EU Konformitätserklärung / EU declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_261809)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_255770)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2855910000)
User Documentation	[Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_93135)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001437
ETIM 7.0	EC001437
ETIM 8.0	EC001437
ETIM 9.0	EC001437
ECLASS 9.0	27-37-16-01
ECLASS 9.1	27-37-16-01
ECLASS 10.0	27-37-16-01
ECLASS 11.0	27-37-16-01
ECLASS 12.0	27-37-16-01
ECLASS 13.0	27-37-16-01

Approvals

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E141197
