Properties

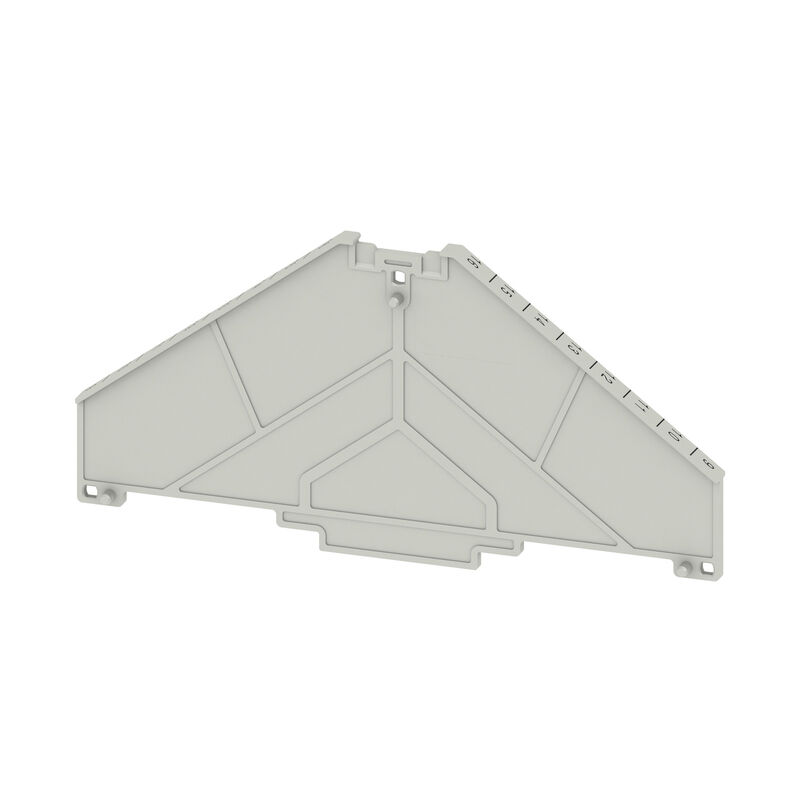

| Version | P-series, Partition plate, grey, 2 mm, printed, vertical |
| Order No. | 1454850000 |
| Type | TW PRV8 16-9 |
| GTIN (EAN) | 4050118261103 |
| Qty. | 10 items |
| Depth | 59.7 mm |
| Depth (inches) | 2.35 inch |
| Height | 120 mm |
| Height (inches) | 4.724 inch |
| Width | 2 mm |
| Width (inches) | 0.079 inch |
| Net weight | 9.5 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polycarbonate |
| Colour | grey |
| UL 94 flammability rating | V-0 |
| Version |
printed
vertical |
| Number of levels | 8 |
| Snap-on | Yes |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224802) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1454850000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1454850000) |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
