Properties

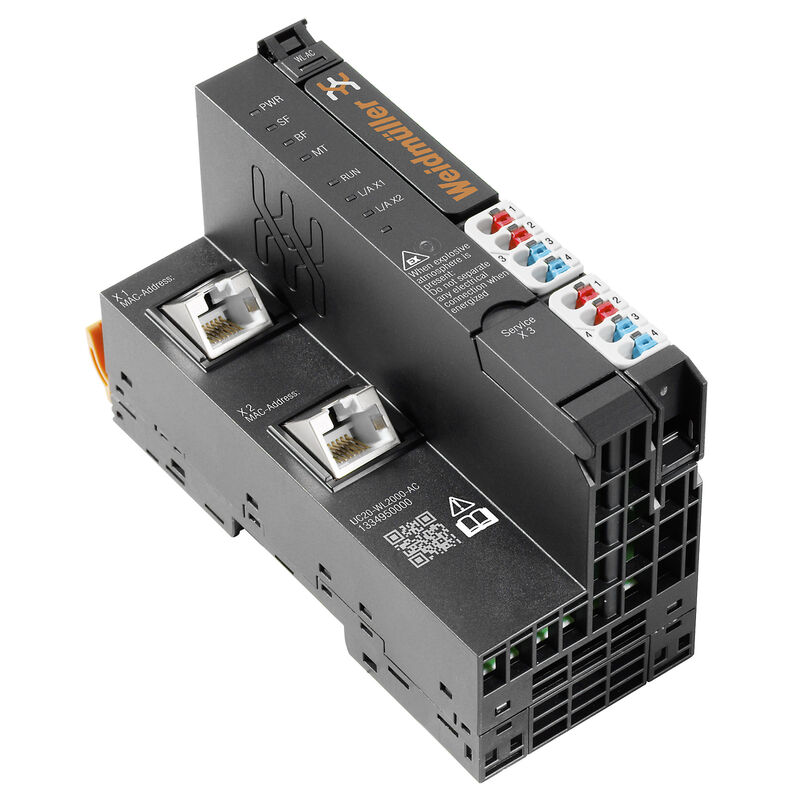

| Version | Controller, IP20, AutomationController, Web-based, u-control 2000 web, integrated engineering tools: u-create web for PLC - (real-time system) & IIoT applications and CODESYS (u-OS) compatible |
| Order No. | 1334950000 |
| Type | UC20-WL2000-AC |
| GTIN (EAN) | 4050118138351 |
| Qty. | 1 items |
| Depth | 76 mm |
| Depth (inches) | 2.992 inch |
| Height | 120 mm |
| Height (inches) | 4.724 inch |
| Width | 52 mm |
| Width (inches) | 2.047 inch |
| Mounting dimension - height | 128 mm |
| Net weight | 232 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC |
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1 |
| SCIP | b2baa72f-7638-44ad-b8eb-76854d0293dc |

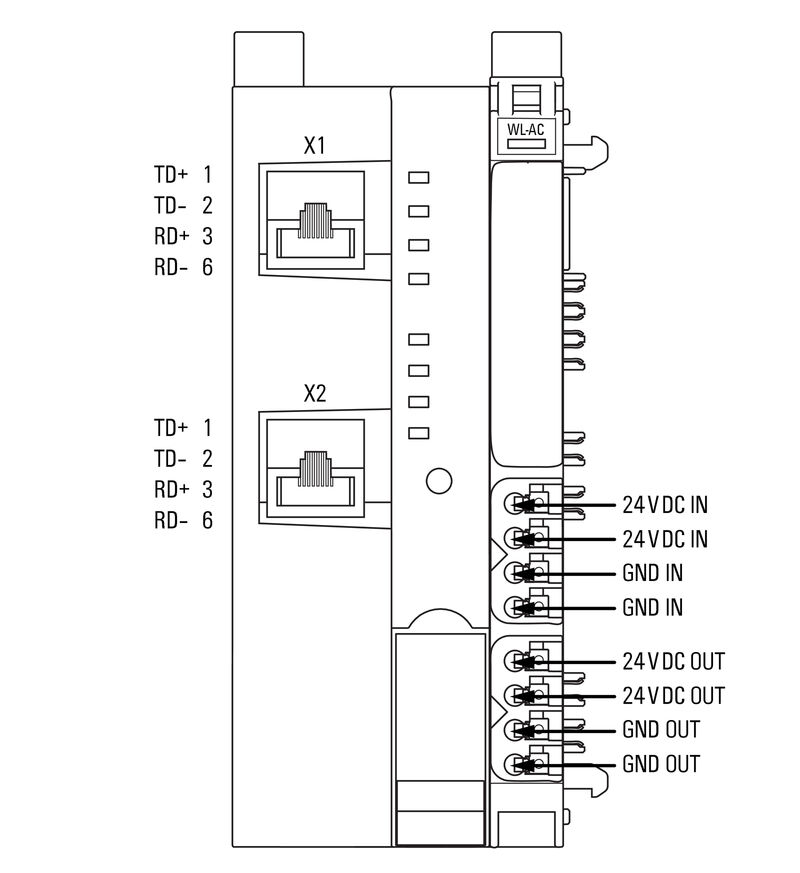

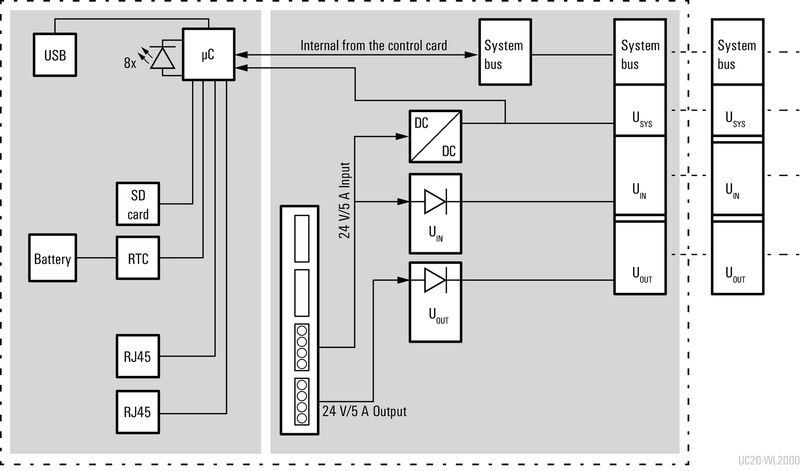

| Type of connection | PUSH IN |
| Rail | TS 35 |
| UL 94 flammability rating | V-0 |
| Current consumption from Isys, typ. | 116 mA |
| Feed current for IIN (input current path) |
|
| Feed current for IIN (input current path) , max. | 5 A |
| Feed current for IOUT (output current path) |
|
| Feed current for IOUT (output current path) , max. | 5 A |
| Supply voltage for outputs | 24 V DC +20 %/ -15 % |
| Supply voltage system and inputs | 24 V DC +20 %/ -15 % |
| Configuration interface | Micro USB 2.0 |
| Connection type | 2 x RJ45 plug-in connectors |
| Engineering tool |
u-create web
u-OS |
| Interface |
2x Ethernet TCP/IP
1x Micro USB |
| max. number of modules | 64 |
| Memory (Flash) |
8 GB
32 GB via microSD |
| Module type | Controller |
| Processor | Dual Core ARM Cortex A9, 624 MHz, 512 Mbyte RAM |
| Programming environment | web-based |
| Real-time clock | Battery buffered |
| Transmission speed backplane bus, max. | 48 Mbit |
| Product information | The matching end brackets are included with the control. |
| Approval/Certificate/Document of Conformity |
[DNV certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49586)
[RINA certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_52872) [Bureau Veritas - Type Approval Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_90817) [Lloyd's Register - Type Approval Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_212710) [Hazardous Locations - UL Class 1 Division 2 Group ABCD](https://mdcop.weidmueller.com/mediadelivery/asset/900_212711) [IECEx](https://mdcop.weidmueller.com/mediadelivery/asset/900_212712) [UL ATEX](https://mdcop.weidmueller.com/mediadelivery/asset/900_212713) [KR Korean register certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_236881) [ABS-American Bureau Of Shipping - Certificate of PDA](https://mdcop.weidmueller.com/mediadelivery/asset/900_245075) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_200506) |
| Engineering Data |
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_164201)
[Quick start guide -- Modbus - Understanding Coils and Register](https://mdcop.weidmueller.com/mediadelivery/asset/900_246227) [Application notes -- UR20-1COM-RSxxx-V2 -Setup of Modbus and Serial communication in CODESYS](https://mdcop.weidmueller.com/mediadelivery/asset/900_308372) [Application notes -- Use of Node-RED contrib OpcUa](https://mdcop.weidmueller.com/mediadelivery/asset/900_312423) [Application notes -- Ethernet over EtherCAT with Codesys and u-OS](https://mdcop.weidmueller.com/mediadelivery/asset/900_317529) [Quick start guide -- Function blocks for UR20-3EM-230V-AC](https://mdcop.weidmueller.com/mediadelivery/asset/900_246233) [Application notes -- Installing and using Node-RED App on u-OS](https://mdcop.weidmueller.com/mediadelivery/asset/900_298741) [Setup of Procon Web ES on u-OS](https://mdcop.weidmueller.com/mediadelivery/asset/900_298810) [Application notes -- Setup of Modbus TCP connection in CODESYS on u-OS](https://mdcop.weidmueller.com/mediadelivery/asset/900_301839) [Application notes -- Setup of FTP client in CODESYS](https://mdcop.weidmueller.com/mediadelivery/asset/900_302411) [Application notes -- UC-Codesys NVL in Node-RED](https://mdcop.weidmueller.com/mediadelivery/asset/900_303701) [Application notes -- UR20-1COM-RSxxx-V1 -Setup of Modbus and Serial communication in CODESYS](https://mdcop.weidmueller.com/mediadelivery/asset/900_304016) [Application notes -- Measuring higher voltages and currents with u-remote](https://mdcop.weidmueller.com/mediadelivery/asset/900_306180) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1334950000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1334950000) |
| User Documentation |
[u-control Handbuch (Deutsch)](https://mdcop.weidmueller.com/mediadelivery/asset/900_77933)
[u-control Manual (English)](https://mdcop.weidmueller.com/mediadelivery/asset/900_77934) [Quick reference / Instruction inlay - u-control web hardware](https://mdcop.weidmueller.com/mediadelivery/asset/900_206393) [20210504 Security Advisory - Accidentally open network port in u-controls and IoT-Gateways](https://mdcop.weidmueller.com/mediadelivery/asset/900_211380) [Security Advisory - Multiple products affected by CodeMeter Runtime vulnerability](https://mdcop.weidmueller.com/mediadelivery/asset/900_310190) [Security Data Sheet u-OS V1.0](https://mdcop.weidmueller.com/mediadelivery/asset/900_322899) [Application notes -- Industrial Product Security Guideline](https://mdcop.weidmueller.com/mediadelivery/asset/900_322935) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Additional downloads | [Support Center](https://support.weidmueller.com/support-center/search/results?query=1334950000) |
| ETIM 6.0 | EC000236 |
| ETIM 7.0 | EC000236 |
| ETIM 8.0 | EC000236 |
| ETIM 9.0 | EC000236 |
| ECLASS 9.0 | 27-24-22-07 |
| ECLASS 9.1 | 27-24-22-07 |
| ECLASS 10.0 | 27-24-22-07 |
| ECLASS 11.0 | 27-24-22-07 |
| ECLASS 12.0 | 27-24-22-07 |
| ECLASS 13.0 | 27-24-22-07 |
| ECLASS 14.0 | 27-24-22-07 |
| Approvals |              |
| ROHS | Conform |
| UL File Number Search | [UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html) |
| Certificate no. (cULus) | E141197 |
| Certificate no. (cULusEX) | E223527 |
