UR20-4AI-RTD-DIAG


















Conform

[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)

E141197

E223527

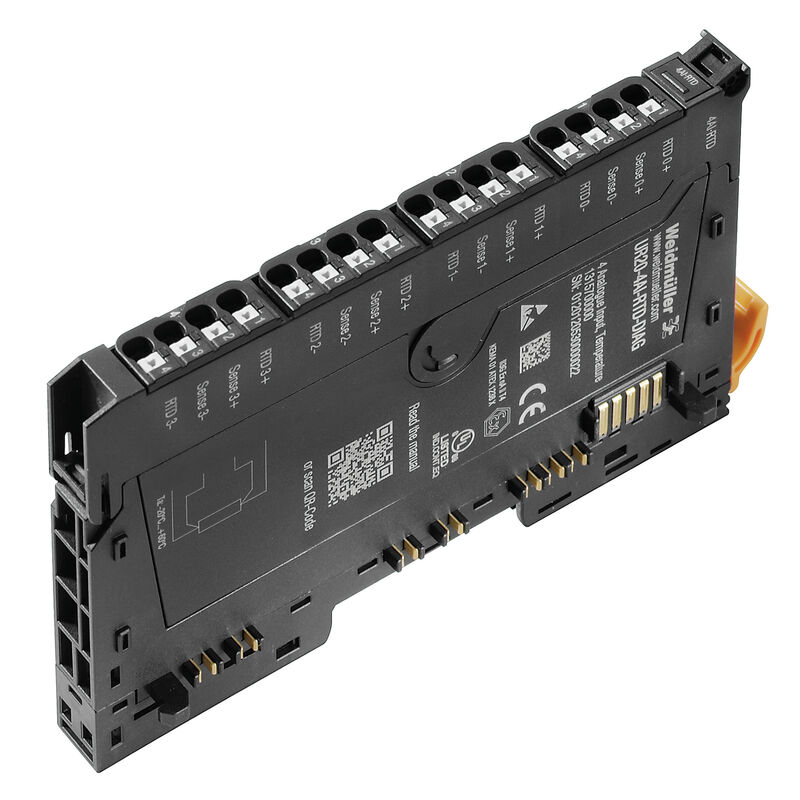

Remote I/O module, IP20, Analog signals, Temperature, RTD

1315700000

UR20-4AI-RTD-DIAG

4050118118872

1 Styk

76 mm

2.992 inch

120 mm

4.724 inch

11.5 mm

0.453 inch

128 mm

91 g

-40 °C ... +85 °C

-20 °C...60 °C

Compliant with exemption

7a, 7cI

Lead 7439-92-1

82327f13-cd27-455a-ab5b-a62e1996dcf8

• Cradle to gate:

  8,684 kg CO2 eq.

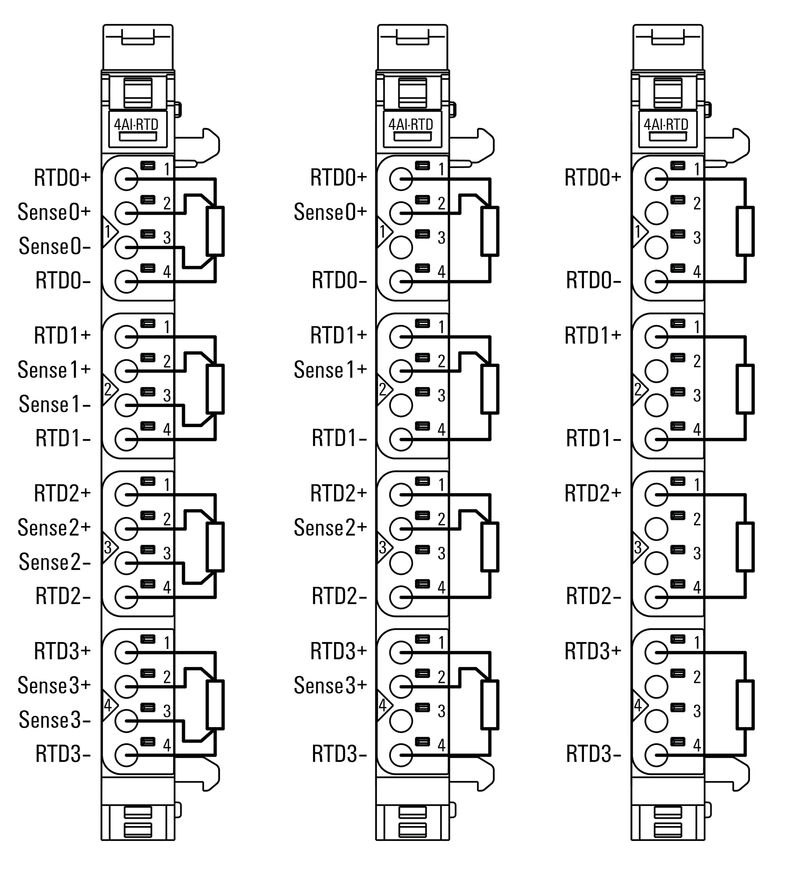

2-wire
3-wire
4-wire

adjustable
36…240 ms

Yes

1 MΩ

850 °C

-200 °C

Yes

0.2% FSR / 0.3% FSR for Ni sensors / 0.6% FSR for Cu10

4

16 Bit

Yes

≤ 50 ppm/K

Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni 200, Ni500, Ni1000, Cu10, 40Ω, 80Ω, 150Ω, 300Ω, 500Ω,1kΩ, 2kΩ,4kΩ

AWG 26

0.14 mm²

AWG 16

AWG 26

AWG 16

1.5 mm²

1.5 mm²

0.14 mm²

PUSH IN

10% to 95%, non-condensing as per DIN EN 61131-2

10% to 95%, non-condensing as per DIN EN 61131-2

≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2

1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2

1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2

TS 35

2

15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27

II

500 V

V-0

5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6

10% to 95%, non-condensing as per DIN EN 61131-2

<20 mA

8 mA

Yes

24 V DC +20 %/ -15 %
via the system bus

20 Byte

CANopen
DeviceNet
EtherCAT
EtherNet/IP
Modbus/TCP
PROFINET IRT
PROFIBUS DP-V1
POWERLINK

DC 500 V between current paths

u-remote system bus

Temperature module

32 Byte

8 Byte

48 Mbit

EC001596

EC001596

EC001596

27-24-26-01

27-24-26-01

4AI-RTD-DIAG 4-channel analogue input module Automatic 50-60 Hz suppression Internal or external cold-junction compensation possible For all conventional sensors (PT, Ni, Cu10) Connection system: PUSH-IN Dimensions (HxWxD): 120 mm (with lever: 128 mm), 11.5 mm, 76 mm Module status: display via collective message, LED at the top of the module Channel status: indication directly at the contact point Weight: 90.5 g Module diagnosis: yes Individual channel diagnosis: yes Reverse-polarity protection: yes Operating temperature: -20°C - +60°C Process data: 8 bytes Parameter data: 32 bytes Diagnostic data: 20 bytes Galvanic isolation: between field and system bus Supply voltage: 24 VDC +25% / –15% Internal current consumption: 8 mA Supply current consumption: 20 mA Temperature coefficient: 50 ppm/ K Accuracy: 0.2% FSR, 0.3% FSR with Ni sensors, 0.6% FSR with Cu10 Conversion time: 36 - 240 ms (adjustable) Internal resistance I: > 1 MΩ Resolution: 16 bits Brand: Weidmüller Type: UR20-4AI-RTD-DIAG
