Properties

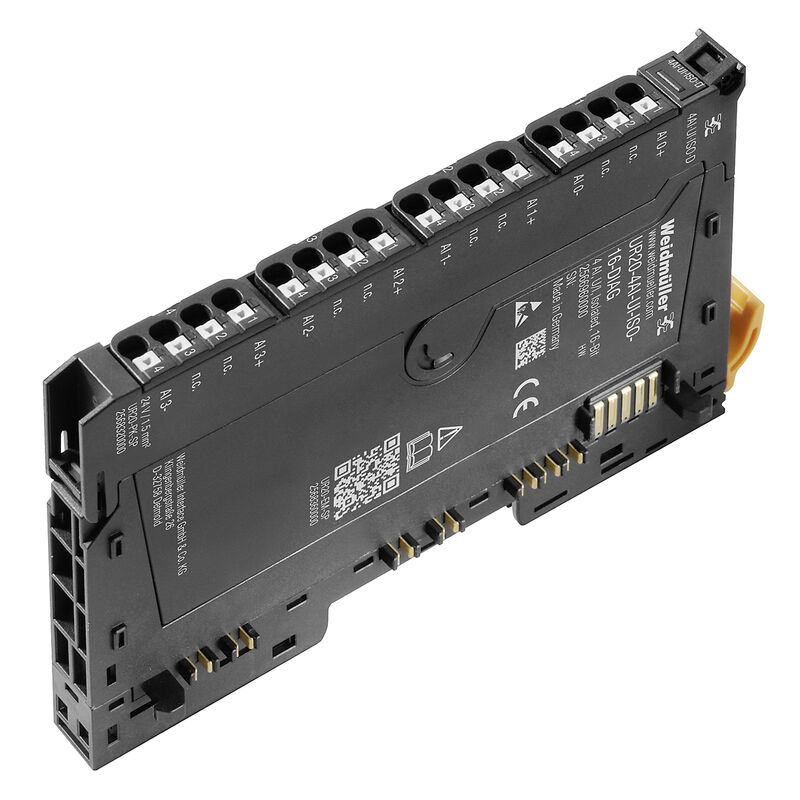

| Version | Remote I/O module, IP20, 4-channel, Analog signals, Input, Current/Voltage, 16 Bit |
| Order No. | 2566960000 |
| Type | UR20-4AI-UI-ISO-16-DIAG |
| GTIN (EAN) | 4050118576900 |
| Qty. | 1 items |
| Depth | 76 mm |
| Depth (inches) | 2.992 inch |
| Height | 120 mm |
| Height (inches) | 4.724 inch |
| Width | 11.5 mm |
| Width (inches) | 0.453 inch |
| Net weight | 89.9 g |
| Storage temperature | -40 °C ... +85 °C |
| Operating temperature | -20 °C ... +60 °C |
| REACH SVHC |
Lead 7439-92-1
Diboron trioxide 1303-86-2 Lead monoxide (lead oxide) 1317-36-8 |
| SCIP | b5ed5bad-cbfe-4ad3-903c-fc3d1093a415 |
| Accuracy | 0.1% FSR |
| Conversion time | 1 ms |
| Individual channel diagnosis | Yes |
| Input value |
Voltage U (0…5 V, ±5 V, 0…10 V, ±10 V, 1…5 V, 2…10 V)
Current I (0…20 mA, 4…20 mA) |
| Internal resistance I | 70 Ω |
| Internal resistance U | 200 kΩ |
| Module diagnosis | Yes |
| Number of analogue inputs | 4 |
| Resolution | 16 Bit |
| Reverse polarity protection | Yes |

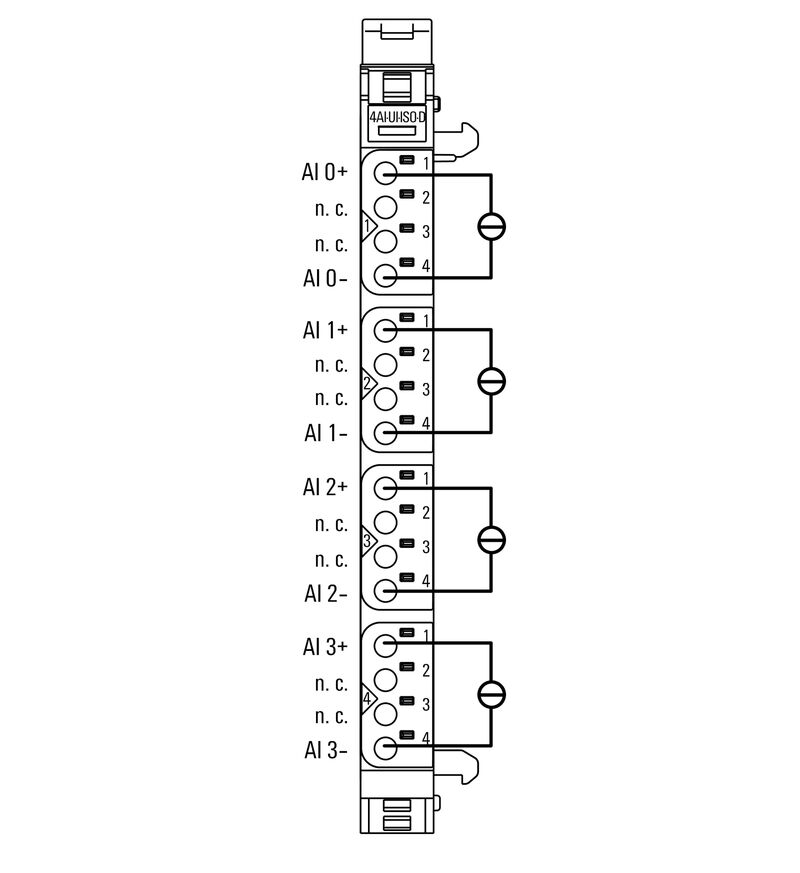

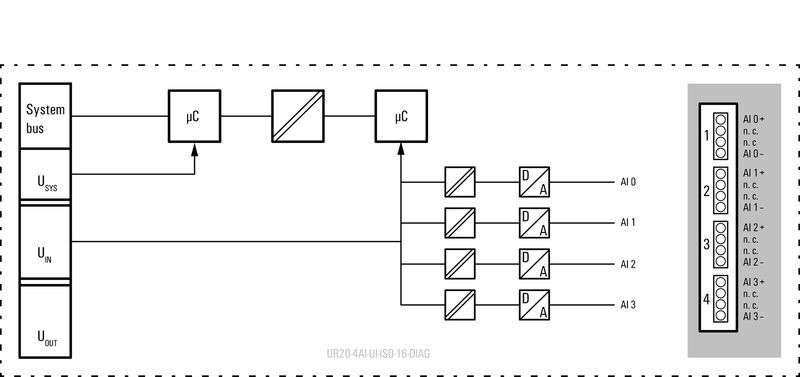

| Sensor connection | 2-wire |
| Sensor supply | No |
| Type of connection | PUSH IN |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.14 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. | 1.5 mm² |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire cross-section, solid, min. | 0.14 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Air humidity (operation) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air humidity (storage) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air humidity (transport) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Air pressure (storage) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Air pressure (transport) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Pollution severity | 2 |
| Rail | TS 35 |
| Shock | 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27 |
| Surge voltage category | II |
| Test voltage | 500 V |
| UL 94 flammability rating | V-0 |
| Vibration resistance |
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6 |
| Current consumption from IIN (the respective power segment) | 31 mA |
| Current consumption from Isys, typ. | 8 mA |
| Reverse polarity protection | Yes |
| Voltage supply | 24 V DC +20 %/ -15 % |
| Connection type | PUSH IN |
| Diagnostic data | 1 Bit |
| Field bus protocol |
PROFINET IRT
PROFINET RT CC-Link IE TSN PROFIBUS DP-V1 EtherCAT Modbus/TCP EtherNet/IP CANopen DeviceNet POWERLINK CC-Link |
| Galvanic isolation | 500 V DC between the current paths |
| Interface | u-remote system bus |
| Module type | Analogue input module |
| Process data | 8 Byte |
| Transmission speed of system bus, max. | 48 Mbit |
| Approval/Certificate/Document of Conformity |
[KC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_293738)
[Lloyds Register certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49585) [DNV/GL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49586) [RINA certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_52872) [Bureau Veritas - Type Approval Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_90817) [DEMKO15ATEX1525X](https://mdcop.weidmueller.com/mediadelivery/asset/900_216513) [UKCA Declaration of Conformity - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_262121) [CE Declaration of Conformity - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_281447) |
| Engineering Data |
[Compatibility information -- Combinability of UR20](https://mdcop.weidmueller.com/mediadelivery/asset/900_164873)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224909) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2566960000) |
| Product Change Notification | [Release-Notes - Firmware](https://mdcop.weidmueller.com/mediadelivery/asset/900_49695) |
| User Documentation |
[MAN_U-REMOTE_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49496)
[MAN_U-REMOTE_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49497) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001596 |
| ETIM 7.0 | EC001596 |
| ETIM 8.0 | EC001596 |
| ETIM 9.0 | EC001596 |
| ECLASS 9.0 | 27-24-26-01 |
| ECLASS 9.1 | 27-24-26-01 |
| ECLASS 10.0 | 27-24-26-01 |
| ECLASS 11.0 | 27-24-26-01 |
| ECLASS 12.0 | 27-24-26-01 |
| ECLASS 13.0 | 27-24-26-01 |
| Approvals |              |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULusEX) | E223527 |
