Properties

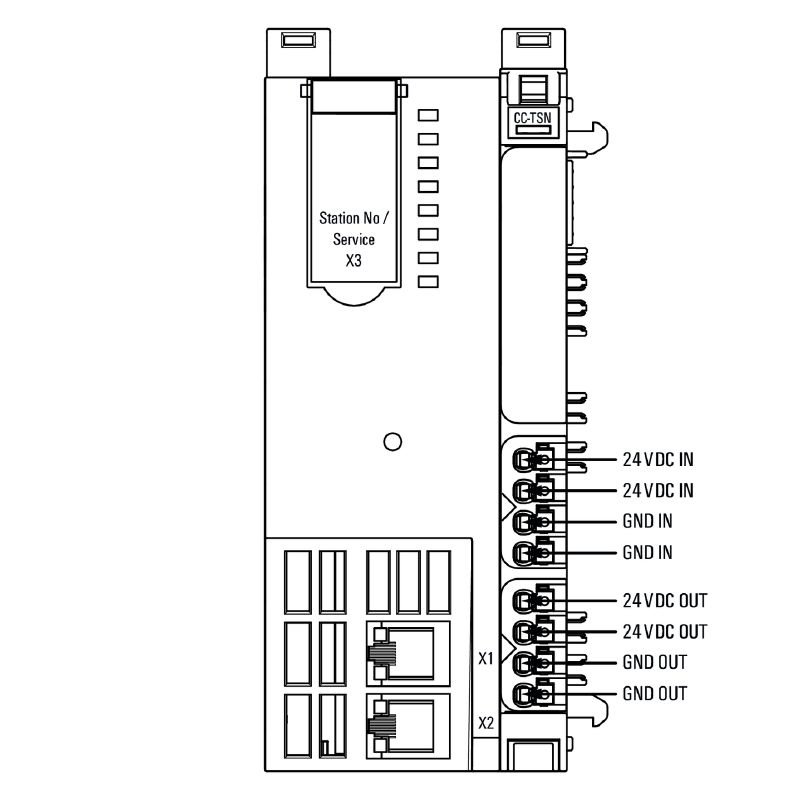

| Version | Remote I/O fieldbus coupler, IP20, CC-Link IE TSN |
| Order No. | 2680260000 |
| Type | UR20-FBC-CC-TSN |
| GTIN (EAN) | 4050118702316 |
| Qty. | 1 items |
| Depth | 76 mm |
| Depth (inches) | 2.992 inch |
| Height | 120 mm |
| Height (inches) | 4.724 inch |
| Width | 52 mm |
| Width (inches) | 2.047 inch |
| Net weight | 210 g |
| Storage temperature | -40 °C ... +85 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 98e19a7e-033b-4e68-93e3-c47b30de875e |
| Type of connection | PUSH IN |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.14 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. | 1.5 mm² |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire cross-section, solid, min. | 0.14 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Air humidity (operation) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air humidity (storage) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air humidity (transport) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Air pressure (storage) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Air pressure (transport) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Pollution severity | 2 |
| Rail | TS 35 |
| Shock | 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27 |
| Surge voltage category | II |
| Test voltage | 500 V |
| UL 94 flammability rating | V-0 |
| Vibration resistance |
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6 |

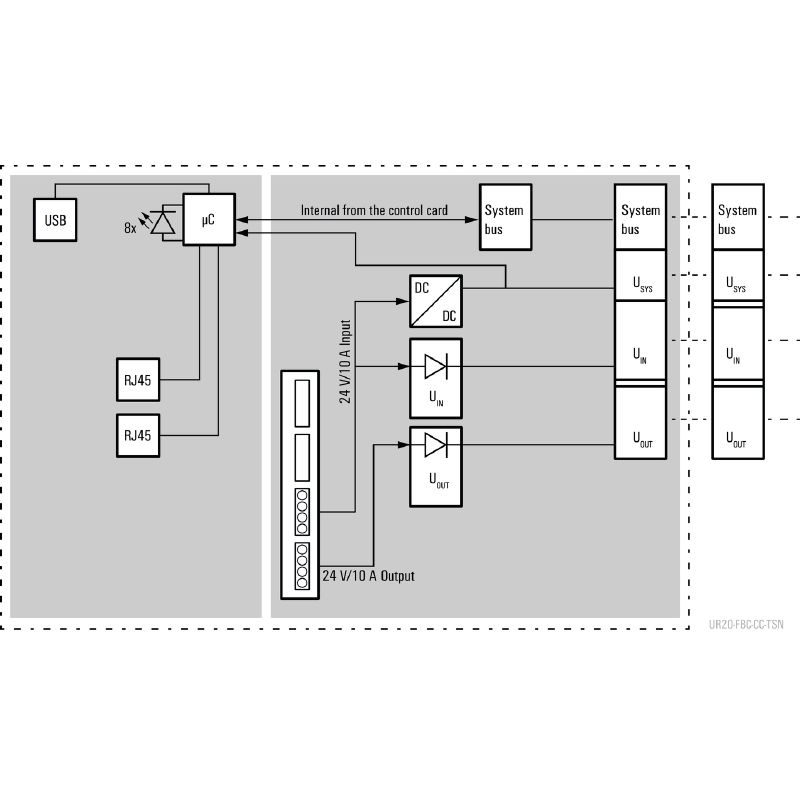

| Current consumption from Isys, typ. | 140 mA |
| Feed current for IIN (input current path) |
|
| Feed current for IIN (input current path) , max. | 10 A |
| Feed current for IOUT (output current path) |
|
| Feed current for IOUT (output current path) , max. | 10 A |
| Supply voltage for outputs | 24 V DC +20 %/ -15 % |
| Supply voltage system and inputs | 24 V DC +20 %/ -15 % |
| Voltage supply |
24 V DC +20 %/ -15 %
via the system bus |
| Configuration interface | Micro USB 2.0 |
| Connection type | 2x RJ45 plug-in connectors |
| Diagnostic data | 3,008 Byte |
| Field bus protocol | CC-Link IE TSN |
| Galvanic isolation | 500 V DC between the current paths |
| Interface | u-remote system bus |
| max. number of modules | 64 |
| Module type | Bus coupler |
| Parameter data | 4 kByte |
| Process data | 1,024 Byte |
| Transmission rate of field bus, max. | 1 Gbit/s |
| Transmission speed of system bus, max. | 48 Mbit/s |
| Approval/Certificate/Document of Conformity |
[KC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_293738)
[Lloyds Register certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49585) [DNV/GL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49586) [RINA certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_52872) [Bureau Veritas - Type Approval Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_90817) [DEMKO15ATEX1525X](https://mdcop.weidmueller.com/mediadelivery/asset/900_216513) [CCC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_236882) [UKCA Declaration of Conformity - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_273634) [CE Declaration of Conformity - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_281446) |
| Engineering Data |
[Compatibility information -- Combinability of UR20](https://mdcop.weidmueller.com/mediadelivery/asset/900_164873)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_304911) |
| Product Change Notification | [Release-Notes - Firmware, CSP and Supported modules list](https://mdcop.weidmueller.com/mediadelivery/asset/900_207544) |
| Software |
[Library and function block -- Language_Pack_UR20_FBC](https://mdcop.weidmueller.com/mediadelivery/asset/900_58377)
[Device description -- Current CSP file CC-LINK-TSN coupler](https://mdcop.weidmueller.com/mediadelivery/asset/900_213743) [Firmware -- Firmware CC-LINK-TSN](https://mdcop.weidmueller.com/mediadelivery/asset/900_273610) [Firmware -- Achive-Firmware_CC-LINK-TSN](https://mdcop.weidmueller.com/mediadelivery/asset/900_273611) [Device description -- Archive-CSP_CC-LINK-TSN](https://mdcop.weidmueller.com/mediadelivery/asset/900_273613) |
| User Documentation |
[MAN_U-REMOTE_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49496)
[MAN_U-REMOTE_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49497) [20211018 Security Advisory – Remote I/O fieldbus couplers (IP20) affected by INFRA:HALT vulnerabilities](https://mdcop.weidmueller.com/mediadelivery/asset/900_244952) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001603 |
| ETIM 7.0 | EC001603 |
| ETIM 8.0 | EC001603 |
| ETIM 9.0 | EC001603 |
| ECLASS 9.0 | 27-24-26-07 |
| ECLASS 9.1 | 27-24-26-07 |
| ECLASS 10.0 | 27-24-26-07 |
| ECLASS 11.0 | 27-24-26-07 |
| ECLASS 12.0 | 27-24-26-07 |
| ECLASS 13.0 | 27-24-26-07 |
| Approvals |               |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
| Certificate no. (cULusEX) | E223527 |
