Properties
| Order No. | 2987520000 |

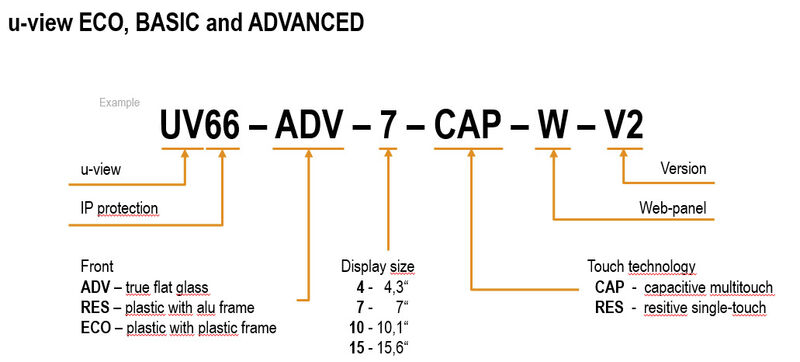

| Type | UV66-ADV-21-CAP-W-V2 |
| GTIN (EAN) | 4099986854758 |
| Qty. | 1 items |

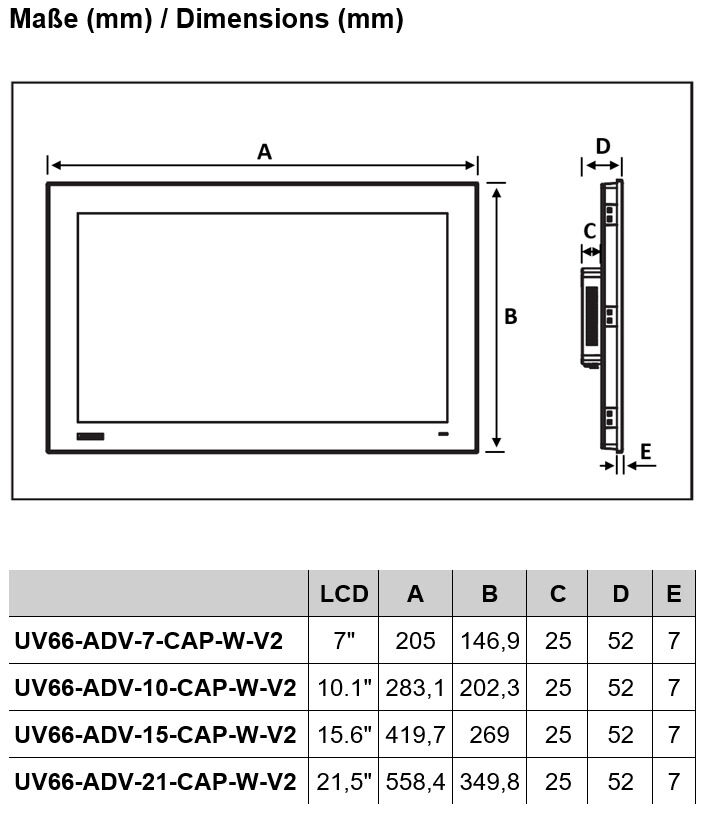

| Depth | 52 mm |
| Depth (inches) | 2.047 inch |
| Height | 349.8 mm |
| Height (inches) | 13.772 inch |
| Width | 558.4 mm |
| Width (inches) | 21.984 inch |
| Net weight | 6,950 g |
| Humidity | 95% relative humidity, non-condensing @ 40°C |
| Luminance | 250 cd/m² |
| Material display | Glass |
| Material frame | Aluminium coated |
| Number of displayable colours | 16700000 |
| Resolution | 1920 x 1080 |
| Size | 21.5" |
| Touch-Screen | Projected capacitive (P-CAP) |
| Operating system | Linux Yocto 4.0. |
| Protection degree |
Built-in: IP66
Enclosure: IP20 |
| Voltage supply | 24 V DC |
| Voltage supply range |
|
| Interfaces behind |
1x Ethernet 10/100/1000 MBit/s (RJ45)
2x USB 2.0 |
| Memory (Flash) | 16 GB |
| Memory (RAM) | 4 GB |
| Operating system | Linux Yocto 4.0. |
| Processor | NXP® ARM® Cortex™-A53 i.MX 8M Mini |
| Product information | Available from April 2024 |
| Engineering Data |
[WM UV66-ADV-V2_datasheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_310843)
[CAD data -- STEP - UV66-ADV-21-CAP-W-V2](https://mdcop.weidmueller.com/mediadelivery/asset/900_314009) [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_315463) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001412 |
| ETIM 7.0 | EC001412 |
| ETIM 8.0 | EC001412 |
| ETIM 9.0 | EC001412 |
| ECLASS 9.0 | 27-33-02-01 |
| ECLASS 9.1 | 27-33-02-01 |
| ECLASS 10.0 | 27-33-02-01 |
| ECLASS 11.0 | 27-33-02-01 |
| ECLASS 12.0 | 27-33-02-01 |
| ECLASS 13.0 | 27-33-02-01 |
| ROHS | Conform |
