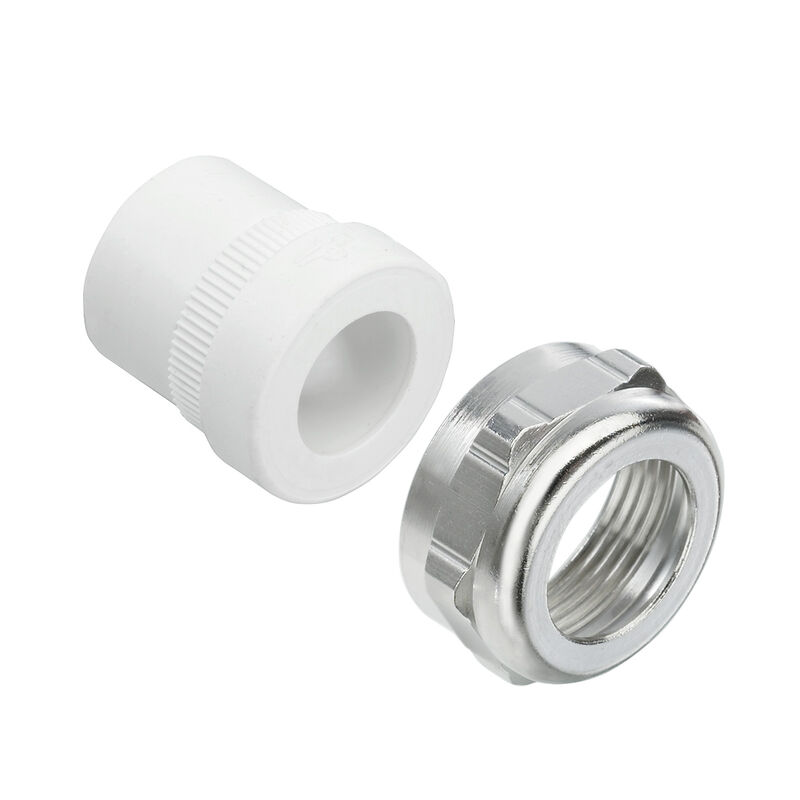

VG 21 HQ MS68 11.5-15.5
Similar to illustration

VG 21 HQ MS68 11.5-15.5

Heavy-duty connectors, Accessories, Cable glands, Brass, nickel-plated

Item No. 1016100000
Download data sheet Engineering Support Product Downloads
Accessories 2 Is accessory of 4 Related products 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Classifications

Approvals

ROHS
Conform

General ordering data

Version
Heavy-duty connectors, Accessories, Cable glands, Brass, nickel-plated
Order No.
1016100000
Type
VG 21 HQ MS68 11.5-15.5
GTIN (EAN)
4032248725564
Qty.
1  items

Dimensions and weights

Net weight
37  g

Temperatures

Limit temperature
-40 °C ... 130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
b5ff1f66-ddba-4739-9fc0-0521ddb52139

General information

AF size
30  mm
Cable glands
PG 21
External thread
PG 21
Material
Brass, nickel-plated
Protection degree
IP68

Classifications

ETIM 6.0
EC000441
ETIM 7.0
EC000441
ETIM 8.0
EC000441
ETIM 9.0
EC000441
ETIM 10.0
EC000441
ECLASS 9.0
27-14-44-32
ECLASS 9.1
27-14-44-32
ECLASS 10.0
27-14-44-32
ECLASS 11.0
27-14-44-32
ECLASS 12.0
27-14-08-01
ECLASS 13.0
27-14-08-01
ECLASS 14.0
27-14-08-01
ECLASS 15.0
27-14-08-01
