VG 9-MS68

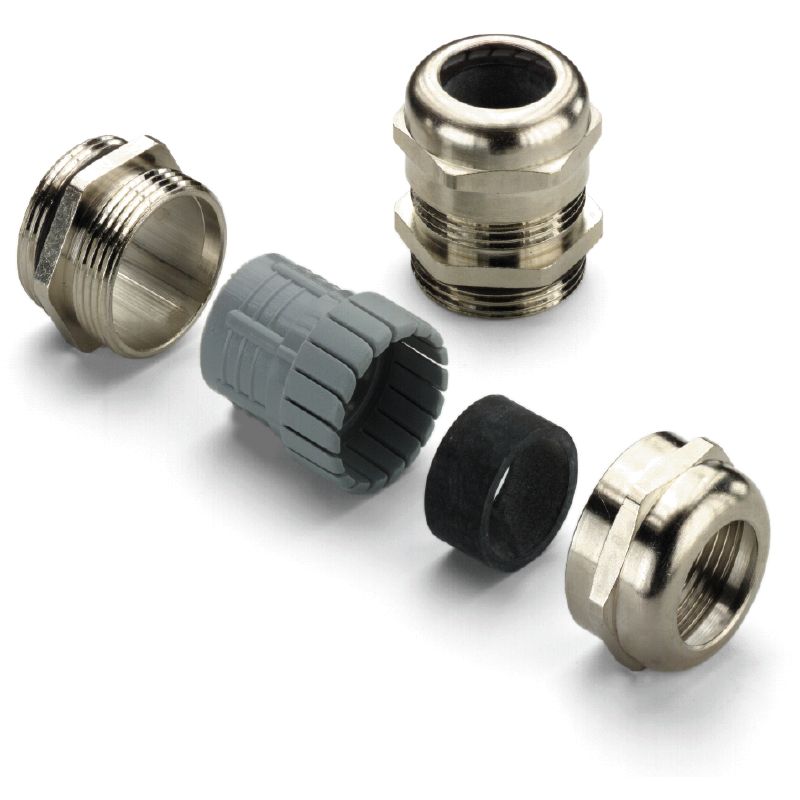

VG MS (standard brass cable gland), Cable glands, straight, PG 9, 6 mm, OD min. 4 - OD max. 8 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated

Item No. 1569070000

Properties

General ordering data

Version	VG MS (standard brass cable gland), Cable glands, straight, PG 9, 6 mm, OD min. 4 - OD max. 8 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated
Order No.	1569070000
Type	VG 9-MS68
GTIN (EAN)	4008190116262
Qty.	50 items

Dimensions and weights

Height	23.5 mm
Height (inches)	0.925 inch
Length	29.5 mm
Length (inches)	1.161 inch
Net weight	17.32 g

Temperatures

Operating temperature

-40 °C...100 °C

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	b5ff1f66-ddba-4739-9fc0-0521ddb52139

Certificate numbers cable gland

Approval conditions	DNV UL cULus
Certificate no. cable gland (cULus)	E-199260
Certificate no. cable gland (GERMLLOYD)	E-14047
Certificate no. cable gland (UL)	E-199260

General information

AF size	17 mm
AF size 1	17 mm
AF size 2	17 mm
Cable glands	PG PG 9
Clamp insert	Polyamide
External thread	PG 9
Halogen	Yes
Length of thread	6 mm
Material	Brass, nickel-plated
O-Ring	NBR
Operating temperature range, max.	100 °C
Operating temperature range, min.	-40 °C
Outer cable diameter, max.	8 mm
Outer cable diameter, min.	4 mm
Pitch of thread	1.41 mm
Protection class (UL)	Type 4X
Protection degree	IP54 IP66 IP67 IP68 - 5 bar (30 min.) IP69K
Protection degree with GWDR	IP54 IP66 IP67 IP68 - 5 bar (30 min.) IP69K
Seal insert	CR
Sealing	NBR
Tightening torque	4 Nm
Torque for cap nut, max.	6.5 Nm
Torque for cap nut, min.	5.5 Nm
Torque for connecting adapter, max.	4.5 Nm
Torque for connecting adapter, min.	3.5 Nm

Downloads

Approval/Certificate/Document of Conformity	[EU Declaration of Conformity - Standard brass nickel plated cable gland - DE PS2480 210608 003ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_250925)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54377)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1569070000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1569070000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1569070000&norm=0)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
