VG MS EMV UNI M32 KB19-23 TPE-V

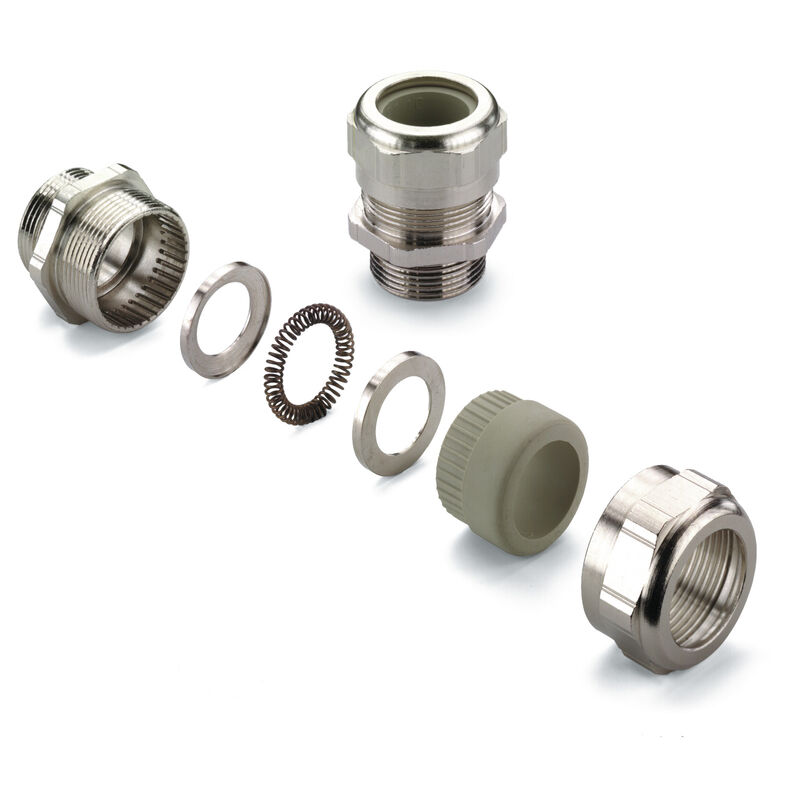

Similar to illustration
Produktabbildung
VG MS EMV UNI M32 KB19-23 TPE-V

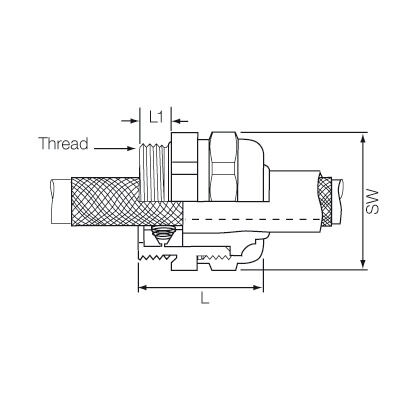

Drawing

VG MS EMV UNI M32 KB19-23 TPE-V

This product is discontinued.

VG EMV (EMC cable gland with spiral clamp), Cable glands, straight, M 32, 13, OD min. 19 - OD max. 23 mm, IP68 - 10 bar, Brass, nickel-plated

Item No. 2876030000
Download data sheet
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Classifications

Approvals

ROHS
Conform

General ordering data

Version
VG EMV (EMC cable gland with spiral clamp), Cable glands, straight, M 32, 13, OD min. 19 - OD max. 23 mm, IP68 - 10 bar, Brass, nickel-plated
Order No.
2876030000
Type
VG MS EMV UNI M32 KB19-23 TPE-V
GTIN (EAN)
4064675663041
Qty.
10 items
Delivery status
Discontinued
Last order date
/Date(1725055200000)/

Dimensions and weights

Height
49 mm
Height (inches)
1.929 inch
Width
43.5 mm
Width (inches)
1.713 inch
Net weight
141 g

Temperatures

Operating temperature
-40 °C...135 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
b5ff1f66-ddba-4739-9fc0-0521ddb52139

General information

AF size
40 mm
AF size 1
40 mm
AF size 2
40 mm
Basic material
Brass, nickel-plated
Cable gland
M 32
Clamp insert
TPE
External thread
M 32
Length of thread
13 mm
O-Ring
NBR
Operating temperature range, max.
135 °C
Operating temperature range, min.
-40 °C
Outer cable diameter, max.
23 mm
Outer cable diameter, min.
19 mm
Pitch of thread
1.5 mm
Protection degree with GWDR
IP68 - 10 bar
Seal insert
TPE
Sealing
TPE
Shield diameter, max.
21 mm
Shield diameter, min.
15 mm
Torque for cap nut, max.
15 Nm
Torque for cap nut, min.
15 Nm
Torque for connecting adapter, max.
15 Nm
Torque for connecting adapter, min.
15 Nm

Classifications

ETIM 8.0
EC000441
ETIM 9.0
EC000441
ETIM 10.0
EC000441
ECLASS 14.0
27-14-08-01
ECLASS 15.0
27-14-08-01
