Properties

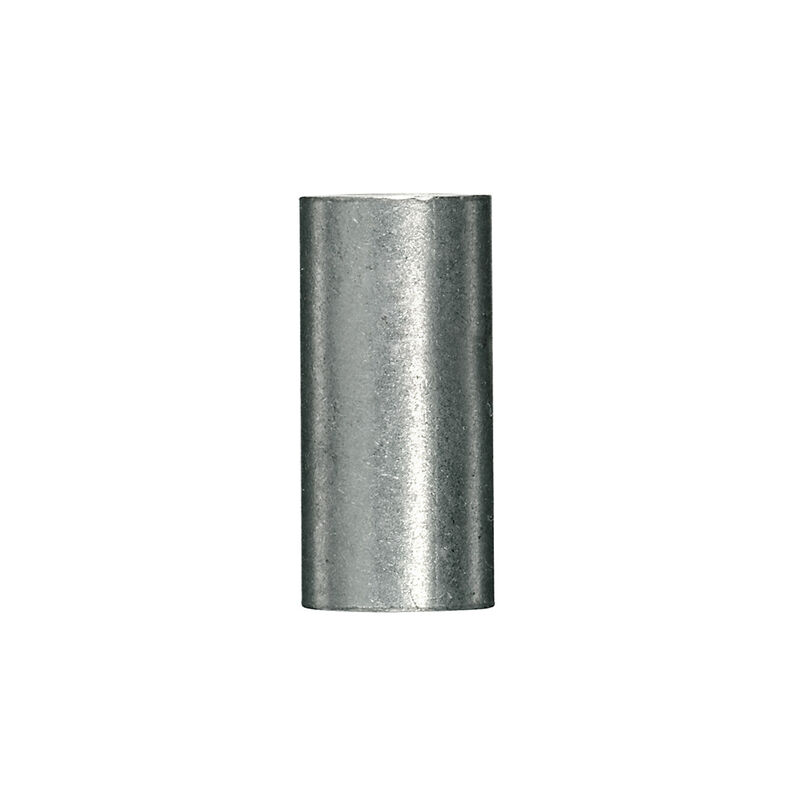

| Version | Connecting sleeve (terminal), Height: 5 mm, Width: 5 mm, Depth: 12.5 mm, Copper |
| Order No. | 0300800000 |
| Type | VH 12.5/5/3.4 |
| GTIN (EAN) | 4008190056179 |
| Qty. | 50 items |
| Depth | 12.5 mm |
| Depth (inches) | 0.492 inch |
| Height | 5 mm |
| Height (inches) | 0.197 inch |
| Width | 5 mm |
| Width (inches) | 0.197 inch |
| Diameter | 5.5 mm |
| Net weight | 1.11 g |
| Storage temperature | -25 °C...55 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 73c55621-8329-401d-bde2-7fd78e0e60e4 |
| Material | Copper |
| Colour | grey |
| Version | for cross-connection link |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Type | Cross-connector |
| Diameter | 5.5 mm |
| TS 32 offset | 32.5 mm |
| Installation advice | Direct mounting |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_74444) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0300800000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0300800000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0300800000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ROHS | Conform |
