Properties

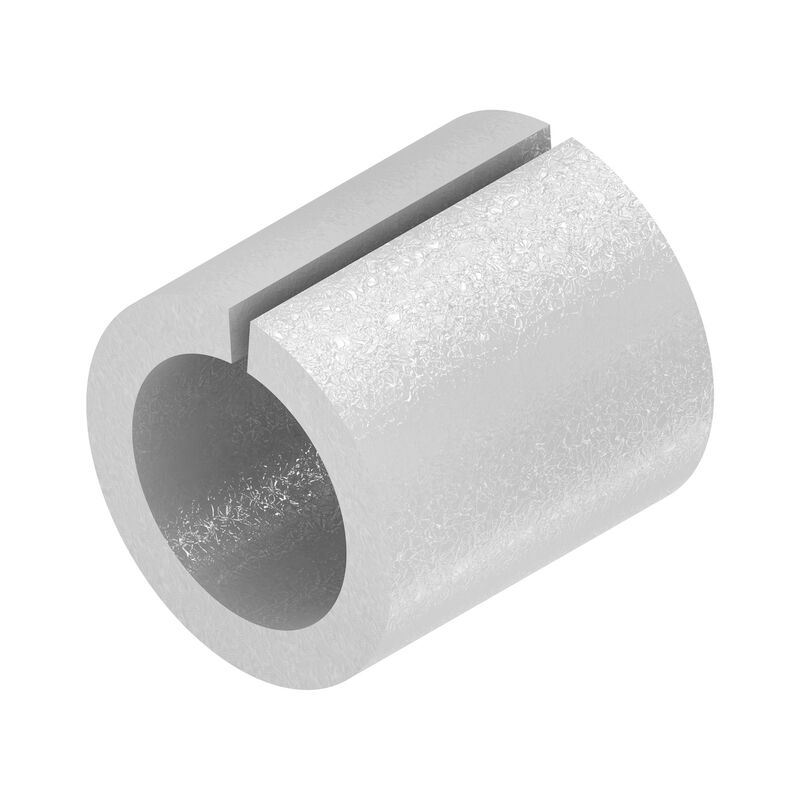

| Version | Connecting sleeve (terminal), Height: 4 mm, Width: 4 mm, Depth: 4.2 mm, Copper |
| Order No. | 1345800000 |
| Type | VH 4.2/4/2.8 |
| GTIN (EAN) | 4008190070403 |
| Qty. | 100 items |
| Depth | 4.2 mm |
| Depth (inches) | 0.165 inch |
| Height | 4 mm |
| Height (inches) | 0.157 inch |
| Width | 4 mm |
| Width (inches) | 0.157 inch |
| Diameter | 4 mm |
| Net weight | 0.22 g |
| Storage temperature | -25 °C...55 °C |
| Material | Copper |
| Colour | grey |
| Version | for cross-connection link |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Number of cross-connected terminals | 1 |
| Type | Cross-connector |
| Diameter | 4 mm |
| Installation advice | Direct mounting |
| Number of poles | 1 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_74507) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1345800000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1345800000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1345800000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ROHS | Conform |
Is accessory of
-
Item No.:1783980000Packaging unit:50 PC
Initiator/actuator terminal, Screw connection, 2.5 mm², 30 V, 24 A, Number of connections: 4, Number of potentials per tier: 1, dark beige
-
Item No.:1783820000Packaging unit:100 PC
Initiator/actuator terminal, Screw connection, 2.5 mm², 250 V, 24 A, Number of connections: 4, Number of potentials per tier: 1, dark beige
-
Item No.:1783950000Packaging unit:50 PC
Initiator/actuator terminal, Screw connection, 2.5 mm², 30 V, 24 A, Number of connections: 4, Number of potentials per tier: 1, dark beige
-
Item No.:1783940000Packaging unit:50 PC
Initiator/actuator terminal, Screw connection, 2.5 mm², 30 V, 24 A, Number of connections: 4, Number of potentials per tier: 1, dark beige
-
Item No.:1783970000Packaging unit:50 PC
Initiator/actuator terminal, Screw connection, 2.5 mm², 30 V, 24 A, Number of connections: 4, Number of potentials per tier: 1, dark beige
Terminal BlocksApplication rangeSignal wiringClamping yoke technology3-tier2.5 mm²
