Properties

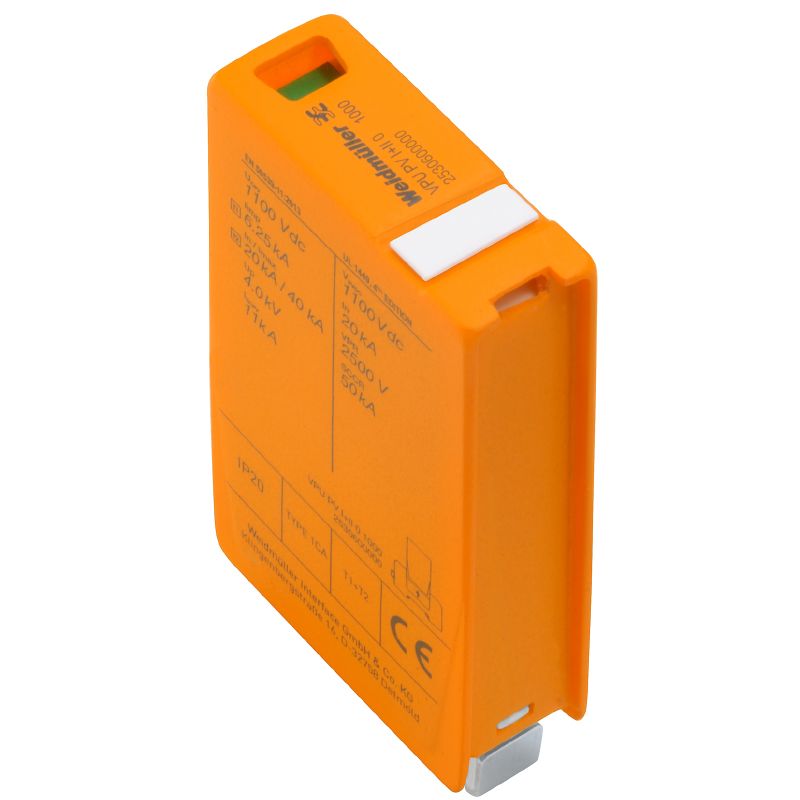

| Version | Surge voltage arrester, Low voltage, Accessories, Surge protection I / II, Spare arrester |
| Order No. | 2530600000 |
| Type | VPU PV I+II 0 1000 |
| GTIN (EAN) | 4050118540819 |
| Qty. | 9 items |
| Depth | 79 mm |
| Depth (inches) | 3.11 inch |
| Height | 45 mm |
| Height (inches) | 1.772 inch |
| Width | 18 mm |
| Width (inches) | 0.709 inch |
| Net weight | 89 g |
| Storage temperature | 85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 - 95% rel. humidity |
| Ambient temperature (operational), max. | 85 °C |
| Rated Voltage UN | 550 V |
| SCCR | 50 kA |
| In | 20 kA |
| Category | SPD TYPE 1CA |
| Ambient temperature (operational), min. | -40 °C |
| Certificate No. (cURus) | E354261 |
| VPR ( DC+/DC-) | 2,500 V |
| Voltage type | DC |
| Colour | orange |
| Operating altitude | ≤ 4000 m |
| Optical function display | green = OK; red = arrester is defective - replace |
| Protection degree | IP20 |
| UL 94 flammability rating | V-0 |
| Version |
Surge protection I / II
Spare arrester |
| Pollution severity | 2 |
| Surge voltage category | III |
| Discharge current In (8/20 µs) | 20 kA |
| Discharge current, max. (8/20 µs) | 40 kA |
| Lightning test current Iimp (10/350 µs) | 6.25 kA |
| Operating height in the grounded PV system | ≤ 2000 m |
| Protection level Up (+/- , -/PE , +/PE) | ≤ 3.8 kV |
| PV system voltage, max. Ucpv | 1,100 V |
| Requirements class | Type I/II |
| Short-circuit curent ISCPV | 11,000 A |
| Standards |
EN 61643-31
EN 50539-11 UL 1449 |
| Total discharge current Itotal ( 8/20µs) | 50 kA |
| Total discharge current Itotal (10/350µs) | 12.5 kA |
| Discharge current, max. (8/20 µs) | 40 kA |
| Leakage current at Un | 30 µA |
| Lightning test current Iimp (10/350 µs) | 6.25 kA |
| Number of poles | 1 |
| Response time | ≤ 25 ns |
| SPD type |
T1
T2 |
| Standards |
EN 61643-31
EN 50539-11 UL 1449 |
| Voltage type | DC |
| Type of connection | pluggable |
| Time interval | 5 years |
| Approval/Certificate/Document of Conformity | [CE_VPU_PV](https://mdcop.weidmueller.com/mediadelivery/asset/900_41858) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205491) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2530600000) |
| User Documentation | [Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_101427) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E354261 |
