VSSC4 CL 48VAC/DC 0.5A
VSSC4 CL 48VAC/DC 0.5A
VSSC4 CL 48VAC/DC 0.5A
VSSC4 CL 48VAC/DC 0.5A

VSSC4 CL 48VAC/DC 0.5A

Protector de sobretensión Instrumentación, Medición, Control, Protector de sobretensión, IMC

Product ID 1063740000
Openen in configurator
Gegevensblad downloaden Wsparcie inżynieryjne Pobieranie produktów
Toebehoren 2 Verwante producten 3
Approvals Datos generales para pedido Dimensions and weights Temperatures Probabilidad de avería Environmental Product Compliance Rated data UL CSA protection data General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Further details of approvals Connection data Datos eléctricos Datos generales Ratings IECEx/ATEX/cUL Important note Clasificaciones Tender specification sheets

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fe64228-e403-4415-b85f-44f3a8f8bb2c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/c809b3ab-e765-499c-852e-d528779da9f7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/f2570d3e-3e62-4056-9c95-fe925a1a2b86/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a5387a11-3584-42f1-9c6a-815af76ec080/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UL)
E311081

Datos generales para pedido

Version
Protector de sobretensión Instrumentación, Medición, Control, Protector de sobretensión, IMC
Order No.
1063740000
Type
VSSC4 CL 48VAC/DC 0.5A
GTIN (EAN)
4032248829095
Qty.
10 Pièce

Dimensions and weights

Depth
58,5 mm
Profundidad (pulgadas)
2,303 inch
Height
76 mm
Altura (pulgadas)
2,992 inch
Width
6,2 mm
Width (inches)
0,244 inch
Poids net
26,6 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...70 °C
Humidity
5...96 %

Probabilidad de avería

SIL in compliance with IEC 61508
2
MTTF
6.008 a
SFF
89,74 %
λges
19
PFH in 1*10-9 per hour
1.95

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
71e97bb7-979f-4330-94c0-20c629bb05e3

Rated data UL

Certificate No. (UL)
E311081
UL certificate
[UL Zertifikat](PDF/E311081VOL1SEC3.pdf)

CSA protection data

Gas group C
IIB
Gas group D
IIA
Gas groups A, B
IIC
Input voltage, max. Ui
85 V
Input-current, max. II
500 mA
Internal capacity, max. CI
1 nF
Internal inductance, max. LI
0 µH

General data

Colour
black
Design
Terminal
Isolating function
No
Mounting rail
TS 35
Optical function display
No
Protection degree
IP20
Segment
Measurement - Monitoring - Setting
UL 94 flammability rating
V-0
Version
Überspannungsschutz, MSR

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Discharge current Imax (8/20µs) wire-PE
5 kA
Discharge current Imax (8/20µs) wire-wire
5 kA
Discharge current In (8/20µs) wire-wire
2.5 kA
Discharge current, max. (8/20 µs)
10 kA
Fuse protection
0.5 A
Insertion loss
5.14 MHz
Lightning test current Iimp (10/350 µs)
0.5 kA
Lightning test current, Iimp (10/350 µs) Wire-PE
0.5 kA
Max. continuous voltage, Uc (AC)
60 V
Max. continuous voltage, Uc (DC)
85 V
Number of poles
1
Overload - failure mode
Modus 2
Pulse-reset capacity
≤ 110 ms
Rated current IN
500 mA
Rated voltage (AC)
48 V
Rated voltage (DC)
68 V
Requirements category acc. to IEC 61643-21
C2
C3
D1
Signal transmission properties (-3 dB)
5 Mhz
Standards
IEC 61643-21
HART-compatible
Surge current-carrying capacity C2
2.5 kA 8/20 µs 5 kV 1.2/50 µs
Surge current-carrying capacity C3
50 A 10/1000 μs
Surge current-carrying capacity D1
0,5 kA 10/350 μs
Voltage type
AC/DC
Volume resistance
1.8 Ω 10 %

Further details of approvals

GOST certificate
[GOST-Zertifikat](PDF/7950_n1-n4.pdf)

Connection data

Stripping length
10 mm
Type of connection
Conexión brida-tornillo
Tightening torque, min.
0,5 Nm
Tightening torque, max.
0,8 Nm
Plage de serrage, min.
0,5 mm²
Plage de serrage, max.
4 mm²
Section de raccordement du conducteur, min.
0,5 mm²
Section de raccordement du conducteur, max.
6 mm²
Section de raccordement du conducteur, souple, embout (DIN 46228-1), min.
0,5 mm²
Section de raccordement du conducteur, souple, embout (DIN 46228-1), max.
4 mm²
Section de raccordement, semi-rigide, min.
0,5 mm²
Section de raccordement, semi-rigide, max.
4 mm²

Datos eléctricos

Voltage type
AC/DC

Datos generales

Number of poles
1
Degré de protection
IP20
Couleur
noir

Ratings IECEx/ATEX/cUL

cUL certificate
[cUL Certificate](pdf/VSSC.PDF)

Important note

Product information
Mode 2: State where the voltage-limiting part of the SPD was short-circuited due to a very low impedance within the SPD. The line is inoperable, but the measuring equipment is still protected by means of a short-circuit.

Clasificaciones

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-01
ECLASS 15.0
27-17-15-01

Tender specification sheets

Long specification

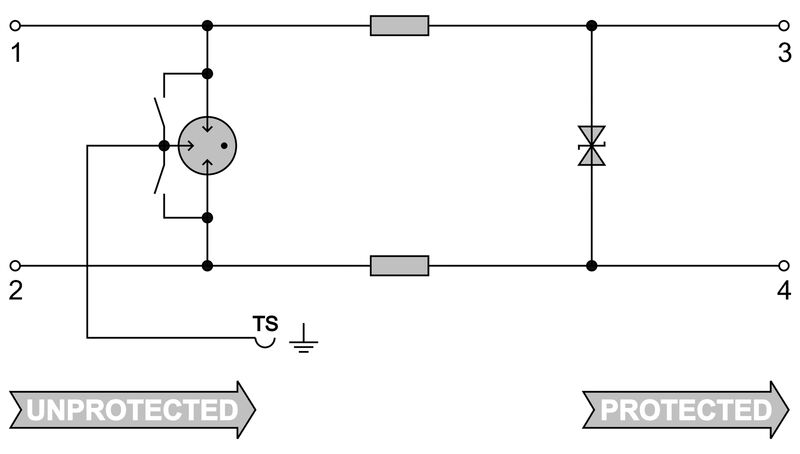

Surge protection in a one piece, 6.2 mm wide DIN rail module for a signal circuit with 48 V UC, 2-wire technology. A current loop with max. 0.5 A can be protected here. When the terminal is fitted, a simultaneous electrically conducting contact is made between the mounting rail (earth) and the reference potential (ground) of the protection circuit in the terminal. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked.
Short specification
Protector de sobretensión en el módulo de carril de una sola pieza de 6,2 mm de ancho, para un circuito de señal con 2 conductores. Versión: 48 VUC
