Properties

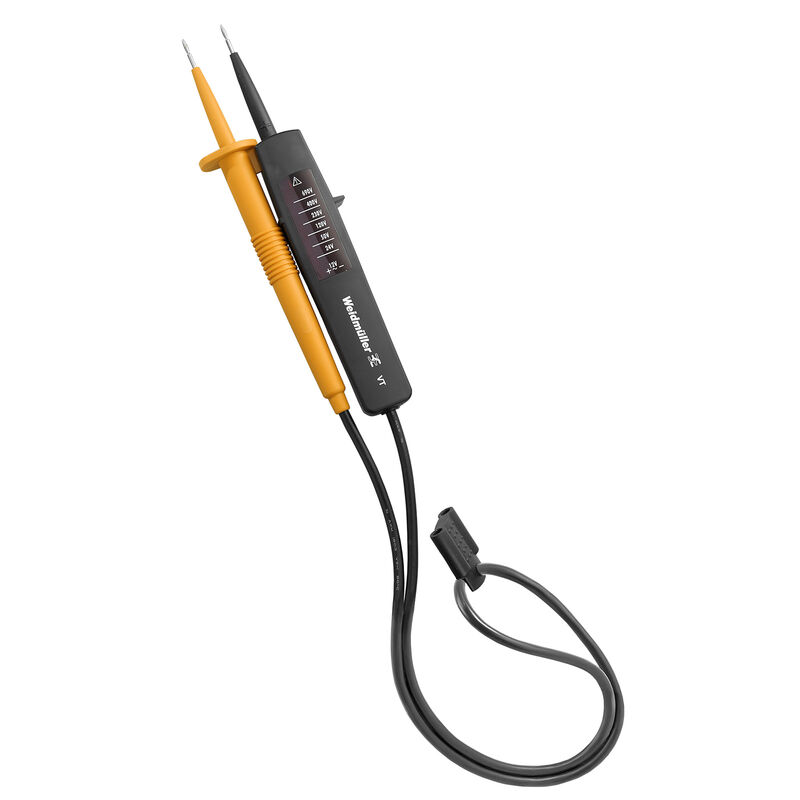

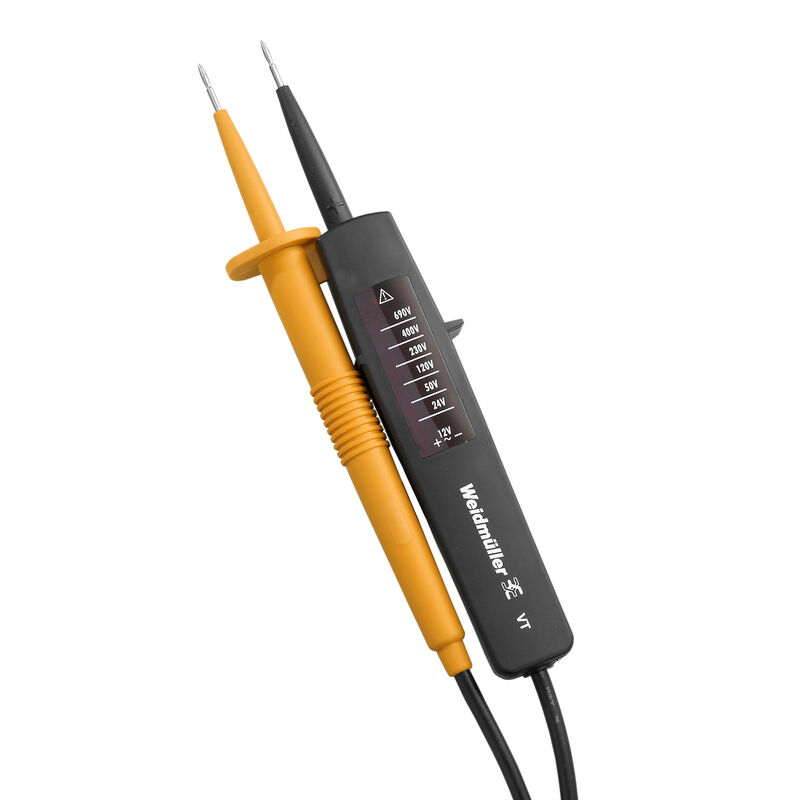

| Version | Testing tools, 2-pole voltage tester |
| Order No. | 9918950000 |
| Type | VT |
| GTIN (EAN) | 4032248405831 |
| Qty. | 1 items |
| Depth | 55 mm |
| Depth (inches) | 2.165 inch |
| Height | 21 mm |
| Height (inches) | 0.827 inch |
| Width | 190 mm |
| Width (inches) | 7.48 inch |
| Net weight | 115 g |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | b05b5122-6117-4cb0-b28c-df32f921fa36 |
| Description of article | Voltage tester from 12 – 690 V |
| AC voltage display | 12, 50, 120, 230, 400, 690 V |
| AC voltage measuring range | 12-690 V |
| Continuity test | No |
| DC voltage display | 12, 50, 120, 230, 400, 690 V |
| DC voltage measuring range | 1000 V |
| Display | LED |
| Frequency range, max. | 65 Hz |
| Frequency range, min. | 0 Hz |
| Insulation test | 5 kV |
| Load switchable | No |
| Measuring range category |
CAT III 600 V
CAT IV 300 V |
| Peak voltage resistance | 5 kV |
| Phase sequence display | No |
| Protection degree | IP64 |
| Rated voltage, max. | 690 V AC/DC |
| Rated voltage, min. | 12 V AC/DC |
| Tested and approved according to |
EN/IEC 61010
EN 61243-3 2010 |
| Working temperature, max. | 55 °C |
| Working temperature, min. | -15 °C |
| Approval/Certificate/Document of Conformity | [9918950000_DECLARATION_OF_CONFORMITY.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_38757) |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_79775) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000494 |
| ETIM 7.0 | EC000494 |
| ETIM 8.0 | EC000494 |
| ETIM 9.0 | EC000494 |
| ECLASS 9.0 | 27-20-03-08 |
| ECLASS 9.1 | 27-20-03-08 |
| ECLASS 10.0 | 27-20-03-08 |
| ECLASS 11.0 | 27-20-03-08 |
| ECLASS 12.0 | 27-20-03-08 |
| ECLASS 13.0 | 27-20-03-08 |
| ECLASS 14.0 | 27-20-03-08 |
| Approvals |  |
| ROHS | Conform |
