Properties

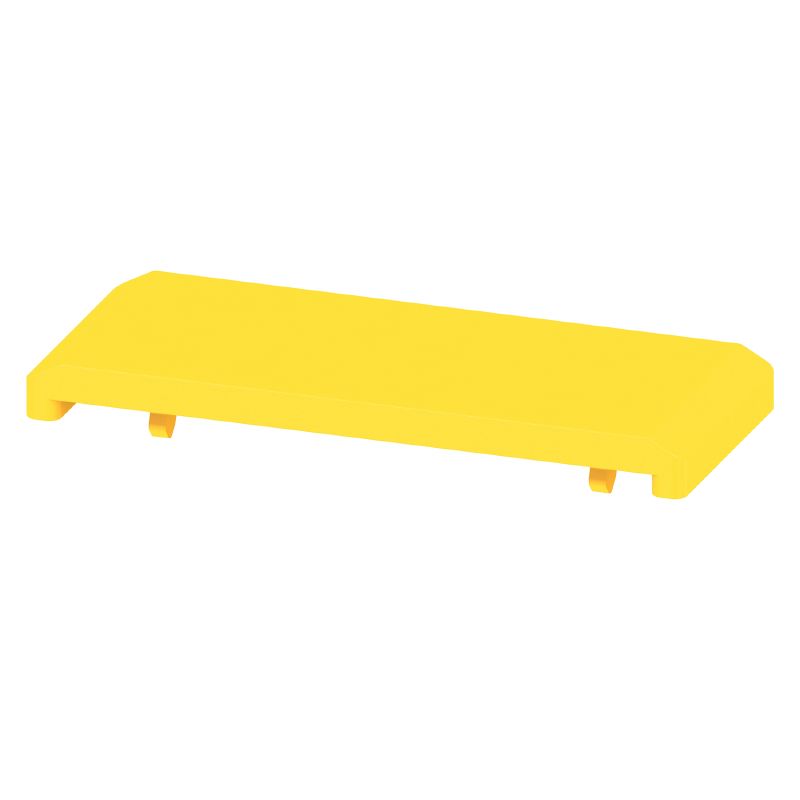

| Version | Terminal cover, PA 66, yellow, Height: 39 mm, Width: 15.8 mm, Depth: 5.51 mm |
| Order No. | 1083600000 |
| Type | WAD 16N GE BED |
| GTIN (EAN) | 4032248032648 |
| Qty. | 50 items |
| Depth | 5.51 mm |
| Depth (inches) | 0.217 inch |
| Height | 39 mm |
| Height (inches) | 1.535 inch |
| Width | 15.8 mm |
| Width (inches) | 0.622 inch |
| Net weight | 1.13 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| Material | PA 66 |
| Colour | yellow |
| UL 94 flammability rating | V-2 |
| Version | For the terminals |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | Snap-on |
| Pitch in mm (P) | 15 mm |
| Installation advice | Direct mounting |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60353) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1083600000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1083600000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1083600000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ROHS | Conform |
Is accessory of
-
Item No.:1393410000Packaging unit:20 PC
Feed-through terminal block, Screw connection, 35 mm², 500 V, 125 A, Number of connections: 2
-
Item No.:2000090000Packaging unit:20 PC
Feed-through terminal block, Screw connection, 35 mm², 500 V, 125 A, Number of connections: 2
-
Item No.:1040480000Packaging unit:20 PC
Feed-through terminal block, Screw connection, 35 mm², 500 V, 125 A, Number of connections: 2
-
Item No.:1040400000Packaging unit:20 PC
Feed-through terminal block, Screw connection, 35 mm², 500 V, 125 A, Number of connections: 2
-
Item No.:0258660000Packaging unit:20 PC
End bracket, Wemid, beige, Rail: TS 35, when screwed in
-
Item No.:0383530000Packaging unit:50 PC
End bracket, Wemid, grey, Rail: TS 35, when screwed in
