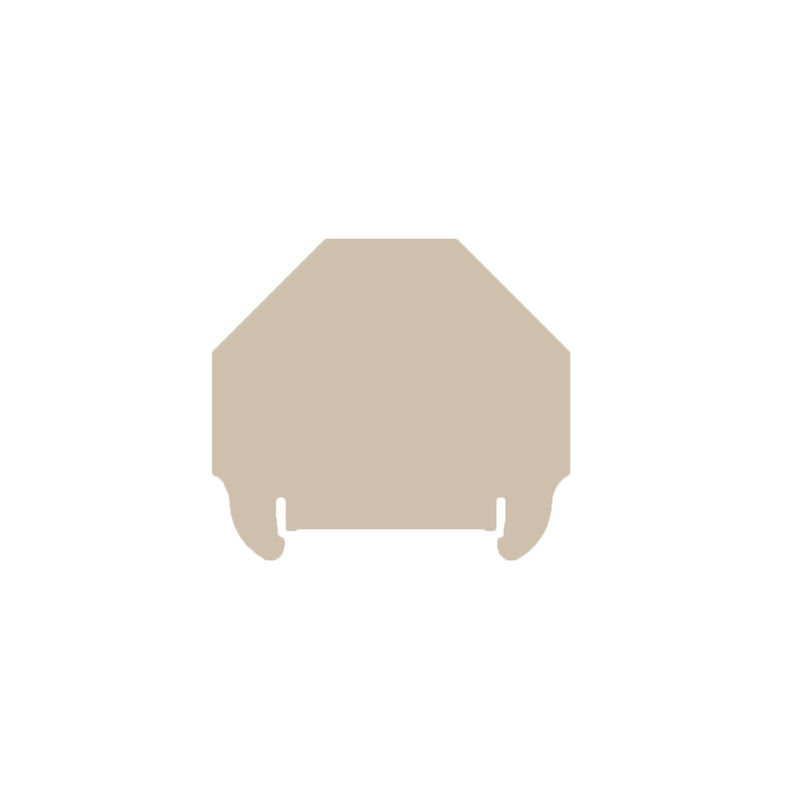

WAP 2.5-10/0.5MM

End plate (terminals), dark beige, Height: 54.5 mm, Width: 0.35 mm, V-0, Wemid

Item No. 1966380000

Properties

General ordering data

Version	End plate (terminals), dark beige, Height: 54.5 mm, Width: 0.35 mm, V-0, Wemid
Order No.	1966380000
Type	WAP 2.5-10/0.5MM
GTIN (EAN)	4032248688616
Qty.	50 items

Dimensions and weights

Depth	49 mm
Depth (inches)	1.929 inch
Height	54.5 mm
Height (inches)	2.146 inch
Width	0.35 mm
Width (inches)	0.014 inch
Net weight	1.64 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version

End plate

Additional technical data

Installation advice	Feed-through (bushing)
Snap-on	Yes

Dimensions

TS 35 offset

28 mm

General

Installation advice

Feed-through (bushing)

Downloads

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65410)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1966380000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1966380000)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000886
ETIM 7.0	EC000886
ETIM 8.0	EC000886
ETIM 9.0	EC000886
ECLASS 9.1	27-14-11-33
ECLASS 10.0	27-14-11-33
ECLASS 11.0	27-14-11-33
ECLASS 12.0	27-14-11-33
ECLASS 13.0	27-25-03-01
ECLASS 14.0	27-25-03-01

Approvals

ROHS

Conform
