Properties
| Version | Screwdriver insert |
| Order No. | 2433210000 |
| Type | WB IK SL PH1 |
| GTIN (EAN) | 4050118443653 |
| Qty. | 1 items |
| Depth | 7 mm |
| Depth (inches) | 0.276 inch |
| Height | 75 mm |
| Height (inches) | 2.953 inch |
| Width | 7 mm |
| Width (inches) | 0.276 inch |
| Net weight | 8 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |

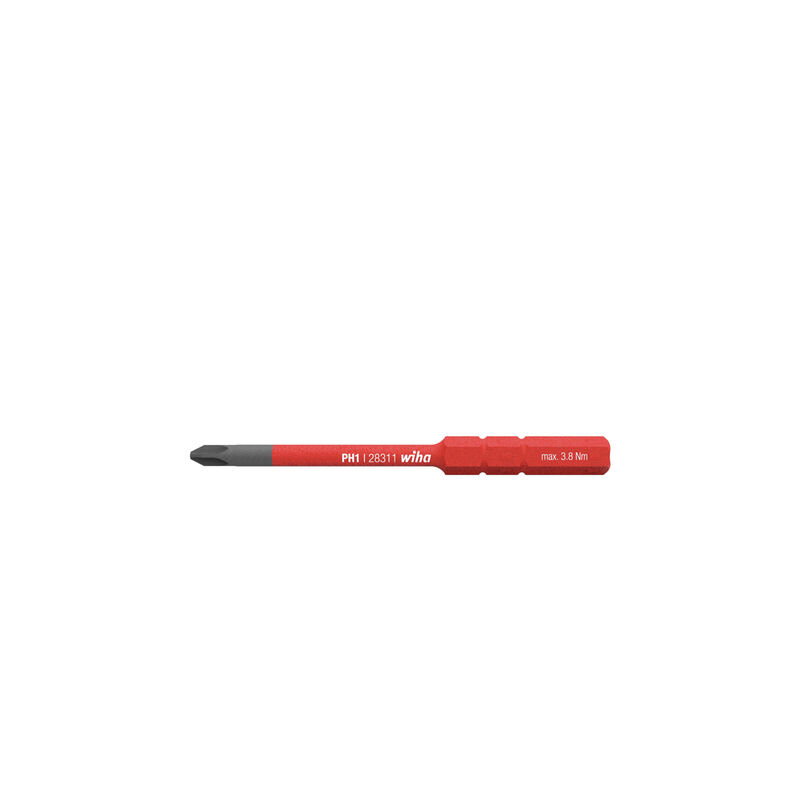

| Description of article | VDE insulated interchangeable bit for crosshead screws, Phillips head, size 1 |
| Form | Philips |
| Size | 1 |
| Torque setting, max. | 3.8 Nm |
| Approval/Certificate/Document of Conformity | [Manufacturer's Declaration - Slim Bits](https://mdcop.weidmueller.com/mediadelivery/asset/900_52746) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002115 |
| ETIM 7.0 | EC002115 |
| ETIM 8.0 | EC003864 |
| ETIM 9.0 | EC003864 |
| ECLASS 9.1 | 21-04-04-90 |
| ECLASS 10.0 | 21-04-04-90 |
| ECLASS 11.0 | 21-04-42-03 |
| ECLASS 12.0 | 21-04-42-03 |
| ECLASS 13.0 | 21-04-42-03 |
| ECLASS 14.0 | 21-04-42-03 |
Is accessory of
ToolsScrewdriversMech. torque screwdrivers and interchangeable bitsTorque screwdriver
ToolsScrewdriversMech. torque screwdrivers and interchangeable bitsBit holder
ToolsAssortmentTool chestFoam insertequipped
Individual part of
ToolsAssortmentTool chestFoam insertequipped
