Properties
| Order No. | 2905340000 |

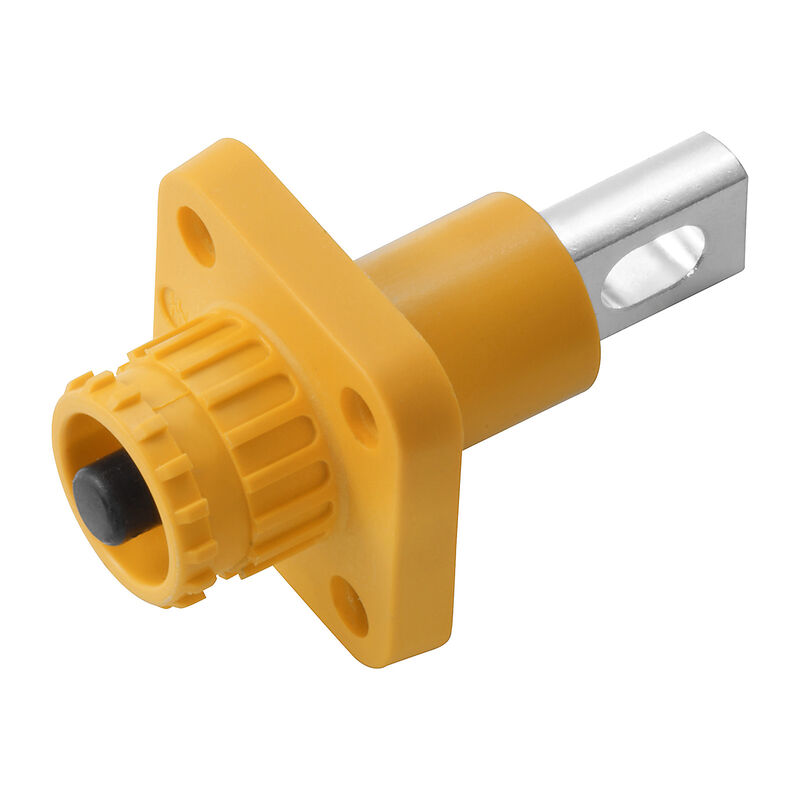

| Type | WBC-S-6OR-B |
| GTIN (EAN) | 4099986026001 |
| Qty. | 5 items |
| Net weight | 23.6 g |
| Continuous operating temp., min. | -40 °C |
| Continuous operating temp., max. | 125 °C |
| Approvals | UL 4128 |
| Colour | orange |
| Conductor cross-section, max. | 25 mm² |
| Contact diameter, male Ø | 6 mm |
| Material | PA 66 |
| Outer cable diameter, max. | 6 mm |
| Surface finish | silver |
| Type | Male |
| Type of connection | Screw connection |
| Plugging cycles | ≥ 100 |
| Protection degree | IP67 plugged |
| Rated current | 120 A |
| Rated voltage | 1,500 V |
| UL 94 flammability rating | V-0 |
| Volume resistance | ≥ 5000 MΩ |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_305226) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 10.0 | 27-44-03-12 |
| ECLASS 11.0 | 27-44-03-12 |
| ECLASS 12.0 | 27-44-03-12 |
| ECLASS 13.0 | 27-44-03-12 |
| Approvals |  |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E529699 |
