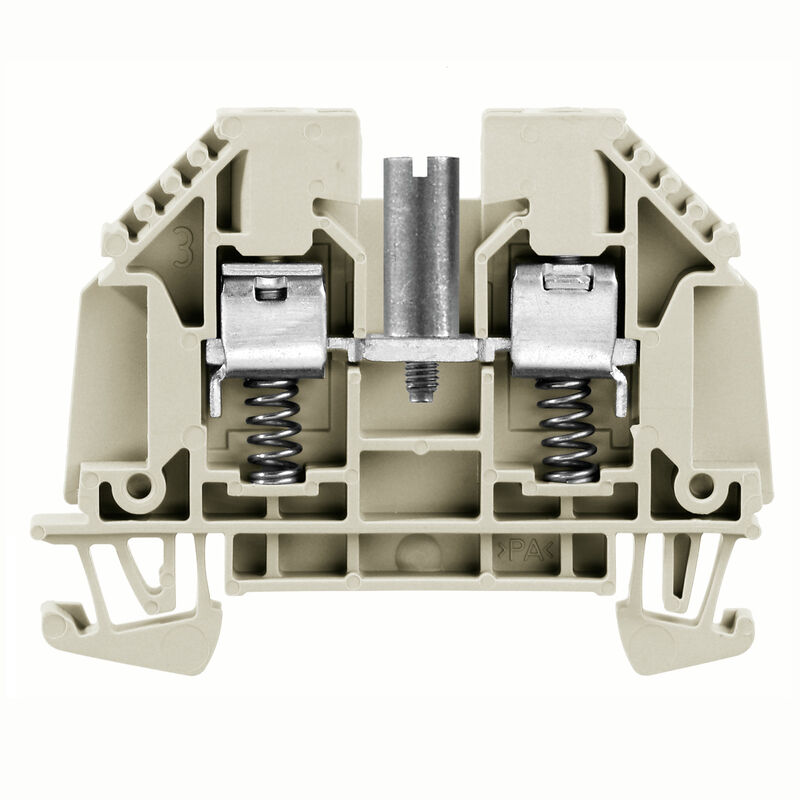

WDU 6 SL STB 14

WDU 6 SL STB 14

This product is discontinued.

Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 630 V, Number of connections: 2

Item No. 2500900000
Download data sheet Product Downloads
Related products 1057
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) Rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 630 V, Number of connections: 2
Order No.
2500900000
Type
WDU 6 SL STB 14
GTIN (EAN)
4050118514193
Qty.
50 items
Delivery status
Discontinued
Last order date
/Date(1723672800000)/

Dimensions and weights

Depth
46.5 mm
Depth (inches)
1.831 inch
Height
60 mm
Height (inches)
2.362 inch
Width
7.9 mm
Width (inches)
0.311 inch
Net weight
18.3 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
a4720f28-c1be-43c4-a115-55415c294bda

Material data

Basic material
Wemid
Colour
dark beige
Colour of operational elements
No
UL 94 flammability rating
V-0

System specifications

Version
Screw connection
with spring-loaded cable clamp
for screwable cross-connection
for plug-in cross-connector
One end without connector
End cover plate required
Yes
Number of levels
1
Number of clamping points per level
2
Levels cross-connected internally
No
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
Yes
Snap-on
Yes
Type of fixing
TS 35
Type of mounting
DIN rail

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

Blade size
0.8 x 4.0 mm
Connection cross-section, stranded, max.
6 mm²
Connection cross-section, stranded, min.
0.5 mm²
Connection direction
on side
Number of connections
2
Type of connection
Screw connection
Wire connection cross section, finely stranded, max.
6 mm²
Wire connection cross section, finely stranded, min.
0.5 mm²
Wire connection cross-section, solid core, max.
1.5 mm²
Wire connection cross-section, solid core, min.
0.5 mm²

Rating data

Rated cross-section
6 mm²
Rated voltage
630 V
Rated DC voltage
630 V
Nominal current
41 A
Volume resistance according to IEC 60947-7-x
0.78 mΩ
Pollution severity
3
Surge voltage category
III

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
