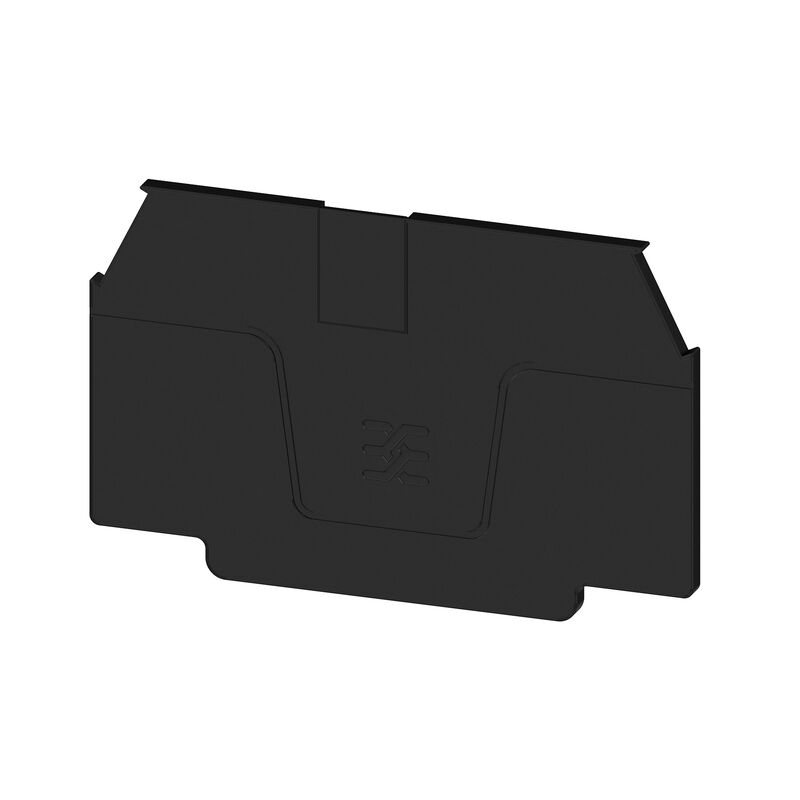

WEP 2C 4 BK

End plate (terminals), black, Height: 60 mm, Width: 2 mm, V-0, Wemid

Item No. 2894230000

Properties

General ordering data

Version	End plate (terminals), black, Height: 60 mm, Width: 2 mm, V-0, Wemid
Order No.	2894230000
Type	WEP 2C 4 BK
GTIN (EAN)	4064675885214
Qty.	20 items

Dimensions and weights

Depth	39 mm
Depth (inches)	1.535 inch
Height	60 mm
Height (inches)	2.362 inch
Width	2 mm
Width (inches)	0.079 inch
Net weight	2.315 g

Temperatures

Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	black
UL 94 flammability rating	V-0

Additional technical data

Snap-on

Yes

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_301941)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2894230000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000886
ETIM 7.0	EC000886
ETIM 8.0	EC000886
ETIM 9.0	EC000886
ECLASS 9.1	27-14-11-33
ECLASS 10.0	27-14-11-33
ECLASS 11.0	27-14-11-33
ECLASS 12.0	27-14-11-33
ECLASS 13.0	27-25-03-01
ECLASS 14.0	27-25-03-01

Approvals

ROHS

Conform

Accessories

MarkersTerminal markersMultiMarkMultiFit

EL KSM 10.6 MM WS 30M

Item No.:

2799270000

Packaging unit:

1 PC

Terminal marker, 10.6 x 5 mm, white

Data sheet Downloads

Is accessory of

Terminal BlocksApplication rangeSignal marshallingClamping yoke technologyFuse terminal blocks1-tier4 mm²

W2C 4 FS-PE 30-70V BK STB

Item No.:

2893190000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 70 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 10-36V BK

Item No.:

2893000000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 36 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS-PE BK STB

Item No.:

2893130000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 500 V, Number of connections: 3, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 100-250V BK STB

Item No.:

2892970000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 250 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS-PE 10-36V BK

Item No.:

2893140000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 36 V, Number of connections: 3, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS-PE 60-150V BK STB

Item No.:

2893200000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 150 V, Number of connections: 3, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 30-70V DB

Item No.:

2893010000

Packaging unit:

50 PC

Fuse terminal, Screw connection, dark beige, 4 mm², 6.3 A, 70 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 60-150V BK STB

Item No.:

2892960000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 150 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS BK STB

Item No.:

2892930000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 60-150V BL

Item No.:

2893050000

Packaging unit:

50 PC

Fuse terminal, Screw connection, blue, 4 mm², 6.3 A, 150 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 60-150V DB

Item No.:

2893040000

Packaging unit:

50 PC

Fuse terminal, Screw connection, dark beige, 4 mm², 6.3 A, 150 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS BK

Item No.:

2892920000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS-PE 100-250V BK

Item No.:

2893170000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 250 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS-PE 10-36V BK STB

Item No.:

2893180000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 36 V, Number of connections: 3, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS DB

Item No.:

2892900000

Packaging unit:

50 PC

Fuse terminal, Screw connection, dark beige, 4 mm², 6.3 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 30-70V BK

Item No.:

2893030000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 70 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS BL

Item No.:

2892910000

Packaging unit:

50 PC

Fuse terminal, Screw connection, blue, 4 mm², 6.3 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 100-250V DB

Item No.:

2893080000

Packaging unit:

50 PC

Fuse terminal, Screw connection, dark beige, 4 mm², 6.3 A, 250 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 10-36V BK STB

Item No.:

2892940000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 36 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 100-250V BL

Item No.:

2893090000

Packaging unit:

50 PC

Fuse terminal, Screw connection, blue, 4 mm², 6.3 A, 250 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 30-70V BK STB

Item No.:

2892950000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 70 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 60-150V BK

Item No.:

2893070000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 150 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS-PE 30-70V BK

Item No.:

2893150000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 70 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS-PE 60-150V BK

Item No.:

2893160000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 150 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 30-70V BL

Item No.:

2893020000

Packaging unit:

50 PC

Fuse terminal, Screw connection, blue, 4 mm², 6.3 A, 70 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS-PE BK

Item No.:

2893120000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 500 V, Number of connections: 3, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 100-250V BK

Item No.:

2893110000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 250 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 10-36V BL

Item No.:

2892990000

Packaging unit:

50 PC

Fuse terminal, Screw connection, blue, 4 mm², 6.3 A, 36 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS 10-36V DB

Item No.:

2892980000

Packaging unit:

50 PC

Fuse terminal, Screw connection, dark beige, 4 mm², 6.3 A, 36 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

W2C 4 FS-PE 100-250V BK STB

Item No.:

2893210000

Packaging unit:

50 PC

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 250 V, Number of connections: 3, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Data sheet Downloads

Terminal BlocksApplication rangeSignal marshallingClamping yoke technologyModular PE terminal blocks1-tier4 mm²

W2C 4 FT-PE

Item No.:

2892690000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, dark beige, 4 mm², 32 A, 800 V, Number of connections: 3, Number of levels: 2, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

W2C 4 FT-PE STB

Item No.:

2892700000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, dark beige, 4 mm², 32 A, 800 V, Number of connections: 3, Number of levels: 2, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

Terminal BlocksApplication rangeSignal marshallingClamping yoke technologyFeed-through terminal blocks1-tier4 mm²

W2C 4 FT STB

Item No.:

2892680000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, dark beige, 4 mm², 32 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

W2C 4 FT BK

Item No.:

2892670000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, black, 4 mm², 32 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

W2C 4 FT BL

Item No.:

2892660000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, blue, 4 mm², 32 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

W2C 4 FT

Item No.:

2892650000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, dark beige, 4 mm², 32 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

Terminal BlocksApplication rangeSignal marshallingClamping yoke technologyModular test-disconnect terminal blocks1-tier4 mm²

W2C 4 DT STB

Item No.:

2892770000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, dark beige, 4 mm², 28 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Data sheet Downloads

W2C 4 DTCA-PE BK

Item No.:

3019280000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, dark beige, 4 mm², 20 A, 500 V, Number of connections: 3, Number of levels: 2, TS 35, V-0, Wemid

Data sheet Downloads

W2C 4 DT W/O DTLV BK

Item No.:

2892800000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, black, 4 mm², 28 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Data sheet Downloads

W2C 4 DTCA DB

Item No.:

3018840000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, dark beige, 4 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Data sheet Downloads

W2C 4 DT-PE

Item No.:

2892810000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, dark beige, 4 mm², 28 A, 500 V, Number of connections: 3, Number of levels: 2, TS 35, V-0, Wemid

Data sheet Downloads

W2C 4 DTCA BL

Item No.:

3018940000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, blue, 4 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Data sheet Downloads

W2C 4 DT-PE STB

Item No.:

2892820000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, dark beige, 4 mm², 28 A, 500 V, Number of connections: 3, Number of levels: 2, TS 35, V-0, Wemid

Data sheet Downloads

W2C 4 DT

Item No.:

2892740000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, dark beige, 4 mm², 28 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Data sheet Downloads

W2C 4 DT BL

Item No.:

2892750000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, blue, 4 mm², 28 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Data sheet Downloads

W2C 4 DT W/O DTLV BL

Item No.:

2892790000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, blue, 4 mm², 28 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Data sheet Downloads

W2C 4 DTCA BK STB

Item No.:

3019260000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, black, 4 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Data sheet Downloads

W2C 4 DT BK

Item No.:

2892760000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, black, 4 mm², 28 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Data sheet Downloads

W2C 4 DTCA BK

Item No.:

3019240000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, black, 4 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Data sheet Downloads

W2C 4 DT W/O DTLV

Item No.:

2892780000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, dark beige, 4 mm², 28 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Data sheet Downloads
