Properties

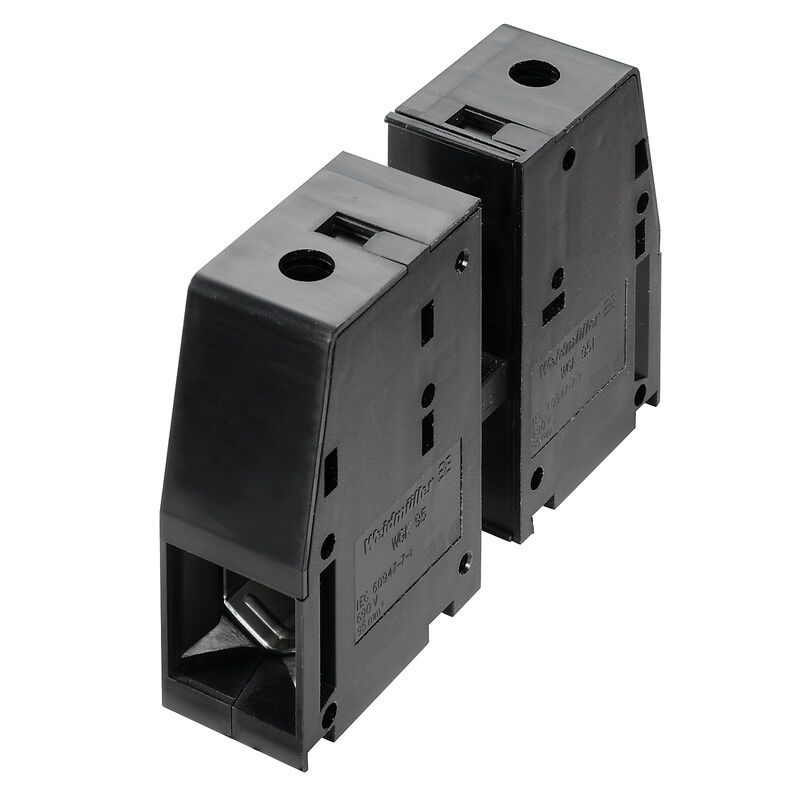

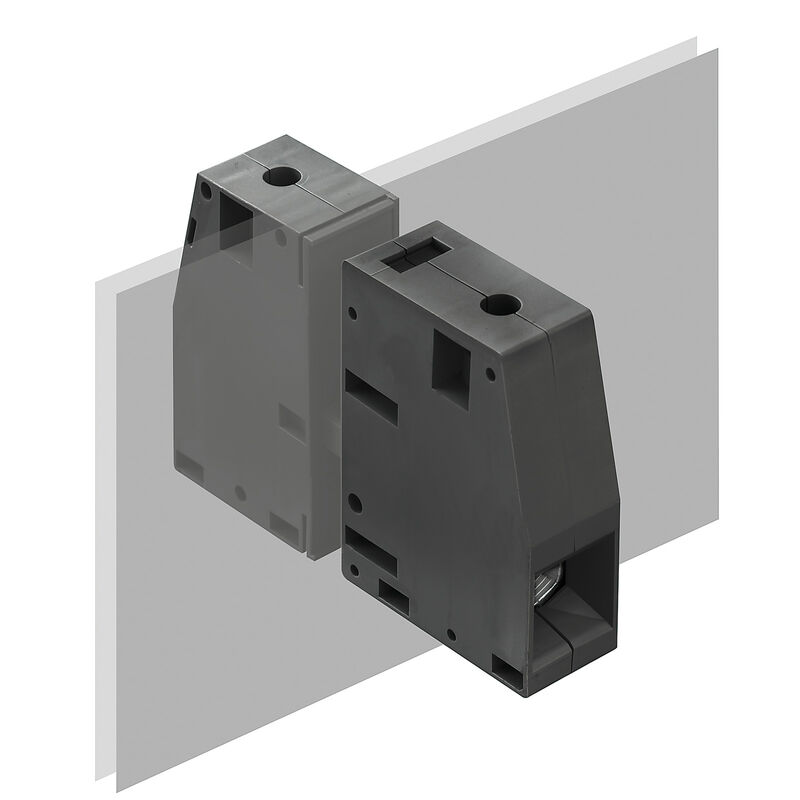

| Version | OMNIMATE Power - series WGK, Feed-through terminal, Rated cross-section: 95 mm², Screw connection, Wemid (PA), black, Direct mounting, Feed-through (bushing) |
| Order No. | 1250680000 |
| Type | WGK 95 BK BX |
| GTIN (EAN) | 4050118041866 |
| Qty. | 10 items |
| Product data |
IEC: 1000 V / 232 A / 35 - 95 mm² UL: 600 V / 255 A / AWG 4 - kcmil 250 |
| Packaging | Box |

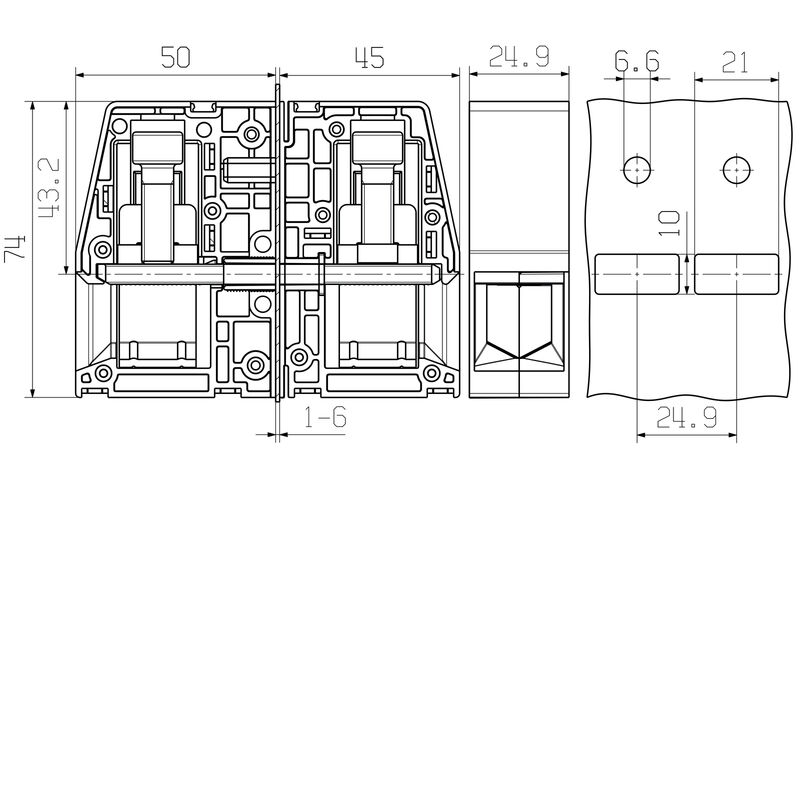

| Height | 74 mm |
| Height (inches) | 2.913 inch |
| Height of lowest version | 74 mm |
| Width | 25 mm |
| Width (inches) | 0.984 inch |
| Length | 24.9 mm |
| Length (inches) | 0.98 inch |
| Net weight | 214.55 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Product family | OMNIMATE Power - series WGK |
| Wire connection method | Screw connection |
| Conductor outlet direction | 180° |
| Number of poles | 1 |
| Pin series quantity | 1 |
| Fitted by customer | No |
| Tightening torque, min. | 15 Nm |
| Tightening torque, max. | 20 Nm |
| Clamping screw | M8/Hexagon |
| Stripping length | 27 mm |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Protection degree | IP20 |
| Type of connection 1 | Clamping yoke |
| Type of connection 2 | Clamping yoke |
| Insulating material | Wemid (PA) |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 120 °C |
| Temperature range, installation, min. | -25 °C |
| Temperature range, installation, max. | 120 °C |
| Clamping range, min. | 35 mm² |
| Clamping range, max. | 95 mm² |
| Wire connection cross section AWG, min. | AWG 4 |
| Wire connection cross section AWG, max. | kcmil 250 |
| Solid, min. H05(07) V-U | 35 mm² |
| Solid, max. H05(07) V-U | 95 mm² |
| Stranded, min. H07V-R | 35 mm² |
| Stranded, max. H07V-R | 95 mm² |
| Flexible, min. H05(07) V-K | 35 mm² |
| Flexible, max. H05(07) V-K | 95 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 35 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 95 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 35 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 95 mm² |
| Reference text |
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P) |
| tested acc. to standard | IEC 60664-1 |

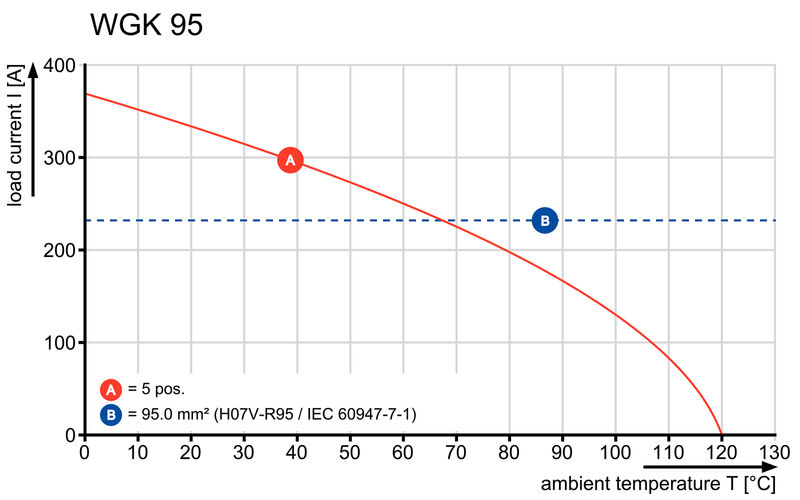

| Rated current, min. number of poles (Tu=20°C) | 232 A |
| Rated current, max. number of poles (Tu=20°C) | 232 A |
| Rated voltage for surge voltage class / pollution degree III/3 | 1,000 V |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 8 kV |
| Rated voltage (Use group B / CSA) | 600 V |
| Rated voltage (Use group C / CSA) | 600 V |
| Rated voltage (Use group D / CSA) | 300 V |
| Rated current (Use group B / CSA) | 255 A |
| Rated current (Use group C / CSA) | 255 A |
| Rated current (Use group D / CSA) | 10 A |
| Wire cross-section, AWG, min. | AWG 4 |
| Wire cross-section, AWG, max. | kcmil 250 |
| Institute (cURus) | CURUS |
| Certificate No. (cURus) | E60693 |
| Rated voltage (Use group B / UL 1059) | 600 V |
| Rated voltage (Use group C / UL 1059) | 600 V |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 255 A |
| Rated current (Use group C / UL 1059) | 255 A |
| Rated current (Use group D / UL 1059) | 10 A |
| Wire cross-section, AWG, min. | AWG 4 |
| Wire cross-section, AWG, max. | kcmil 250 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Packaging | Box |
| VPE length | 270 mm |
| VPE width | 121 mm |
| VPE height | 100 mm |
| Notes |
|
| Approval/Certificate/Document of Conformity | [Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_70234) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1250680000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1250680000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 6.0 | EC001283 |
| ETIM 7.0 | EC001283 |
| ETIM 8.0 | EC001283 |
| ETIM 9.0 | EC001283 |
| ECLASS 9.0 | 27-14-11-34 |
| ECLASS 9.1 | 27-14-11-34 |
| ECLASS 10.0 | 27-14-11-34 |
| ECLASS 11.0 | 27-14-11-34 |
| ECLASS 12.0 | 27-14-11-34 |
| ECLASS 13.0 | 27-14-11-34 |
| ECLASS 14.0 | 27-14-11-34 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
