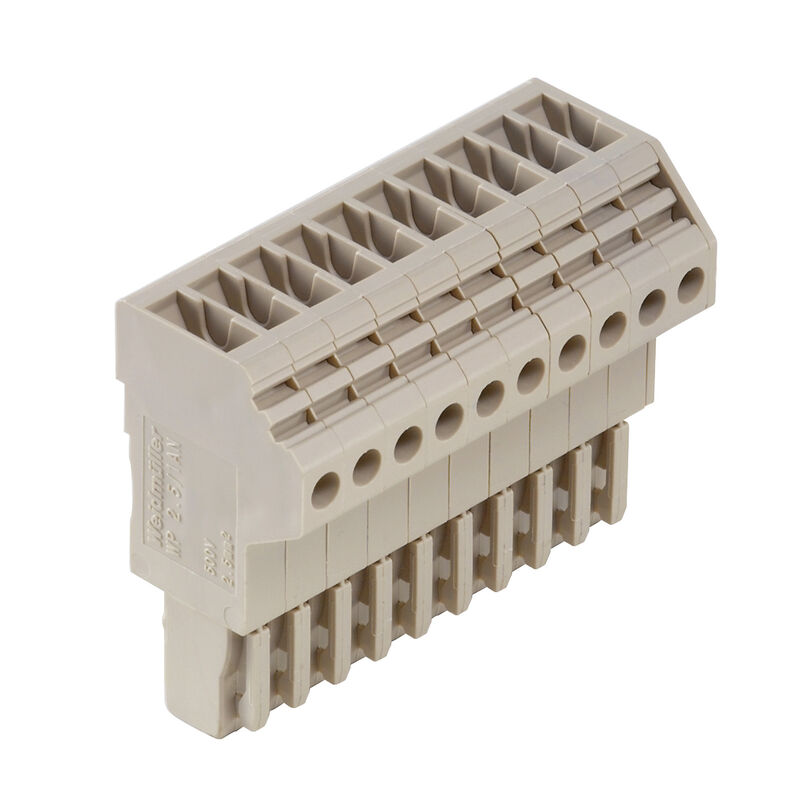

WP 2.5/1AN/10

Plug (terminal), Screw connection, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 10, V-0, Wemid, Number of poles: 10, Width: 52 mm, Height: 22.9 mm

Item No. 1305280000

Properties

General ordering data

Version	Plug (terminal), Screw connection, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 10, V-0, Wemid, Number of poles: 10, Width: 52 mm, Height: 22.9 mm
Order No.	1305280000
Type	WP 2.5/1AN/10
GTIN (EAN)	4050118104530
Qty.	50 items

Dimensions and weights

Depth	41 mm
Depth (inches)	1.614 inch
Height	22.9 mm
Height (inches)	0.902 inch
Width	52 mm
Width (inches)	2.047 inch
Net weight	35.57 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version	Screw connection Plug
End cover plate required	Yes
Number of potentials	10
Number of levels	1
Number of clamping points per level	1
PE connection	No

Additional technical data

Open sides	closed
Type of mounting	Plugged

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	4 mm²
Clamping range, min.	0.13 mm²
Clamping screw	M 2.5
Connection cross-section, stranded, max.	4 mm²
Connection cross-section, stranded, min.	1.5 mm²
Connection direction	top
Gauge to IEC 60947-1	A4
Number of connections	10
Stripping length	7 mm
Tightening torque, max.	0.6 Nm
Tightening torque, min.	0.4 Nm
Type of connection	Screw connection
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate No. (CSA)	200039-70001233
Current size B (CSA)	20 A
Current size C (CSA)	20 A
Current size D (CSA)	10 A
Voltage size B (CSA)	300 V
Voltage size C (CSA)	300 V
Voltage size D (CSA)	300 V
Wire cross section max. (CSA)	12 AWG
Wire cross section min. (CSA)	16 AWG

General

Number of poles	10
Standards	In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 26

Rating data

Rated cross-section	2.5 mm²
Rated voltage	500 V
Rated DC voltage	500 V
Rated current	24 A
Standards	In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

UL rating data

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	12 AWG
Conductor size Factory wiring min. (cURus)	26 AWG
Conductor size Field wiring max. (cURus)	12 AWG
Conductor size Field wiring min. (cURus)	26 AWG
Current size B (cURus)	20 A
Current size C (cURus)	20 A
Current size D (cURus)	10 A
Voltage size B (cURus)	300 V
Voltage size C (cURus)	300 V
Voltage size D (cURus)	300 V

Downloads

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_236585)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1305280000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1305280000)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002848
ETIM 7.0	EC002848
ETIM 8.0	EC002848
ETIM 9.0	EC002848
ECLASS 9.0	27-14-11-92
ECLASS 9.1	27-14-11-92
ECLASS 10.0	27-14-11-92
ECLASS 11.0	27-14-11-92
ECLASS 12.0	27-14-11-92
ECLASS 13.0	27-25-03-90
ECLASS 14.0	27-25-03-90

Approvals

Approvals	![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
