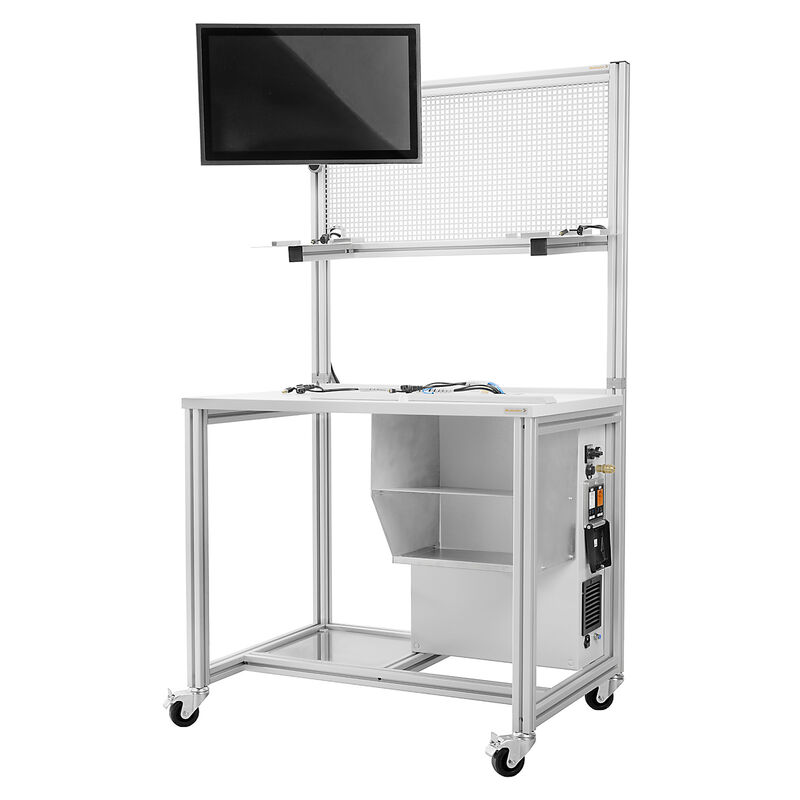

WPC WAGON 115V

WPC WAGON 115V

Automatic machines

Item No. 2728480000
Download data sheet Product Downloads
Related products 8
General ordering data Dimensions and weights Environmental Product Compliance PW65 maintenance - automatic stripping/crimping Automatic cutting WPC Classifications Approvals

General ordering data

Version
Automatic machines
Order No.
2728480000
Type
WPC WAGON 115V
GTIN (EAN)
4050118811346
Qty.
1  items

Dimensions and weights

Depth
750  mm
Depth (inches)
29.527  inch
Height
1,800  mm
Height (inches)
70.866  inch
Width
1,100  mm
Width (inches)
43.307  inch
Net weight
30,000  g

Environmental Product Compliance

RoHS Compliance Status
Not affected
REACH SVHC
No SVHC above 0.1 wt%

PW65 maintenance - automatic stripping/crimping

Compressed-air connection
5.5 bar
Electrical connection
100 - 240 V AC / 50/60 Hz

Automatic cutting

Compressed-air connection
5.5 bar
Electrical connection
100 - 240 V AC / 50/60 Hz

WPC

Electrical connection
100 - 240 V AC / 50/60 Hz
Display
15-inch touchscreen
Note
Load capacity max. 180 kg
Mobile use
Panel with completed cabling and additional mains plugs and USB connections
pivoting display holder
Compressed-air connection
5.5 bar

Classifications

ETIM 6.0
EC002224
ETIM 7.0
EC011808
ETIM 8.0
EC011808
ETIM 9.0
EC011808
ETIM 10.0
EC011808
ECLASS 9.1
21-07-03-08
ECLASS 10.0
21-07-03-08
ECLASS 11.0
21-07-03-08
ECLASS 12.0
21-07-03-08
ECLASS 13.0
21-07-03-08
ECLASS 14.0
21-07-03-08
ECLASS 15.0
21-07-03-08

Approvals

ROHS
Conform
