Properties

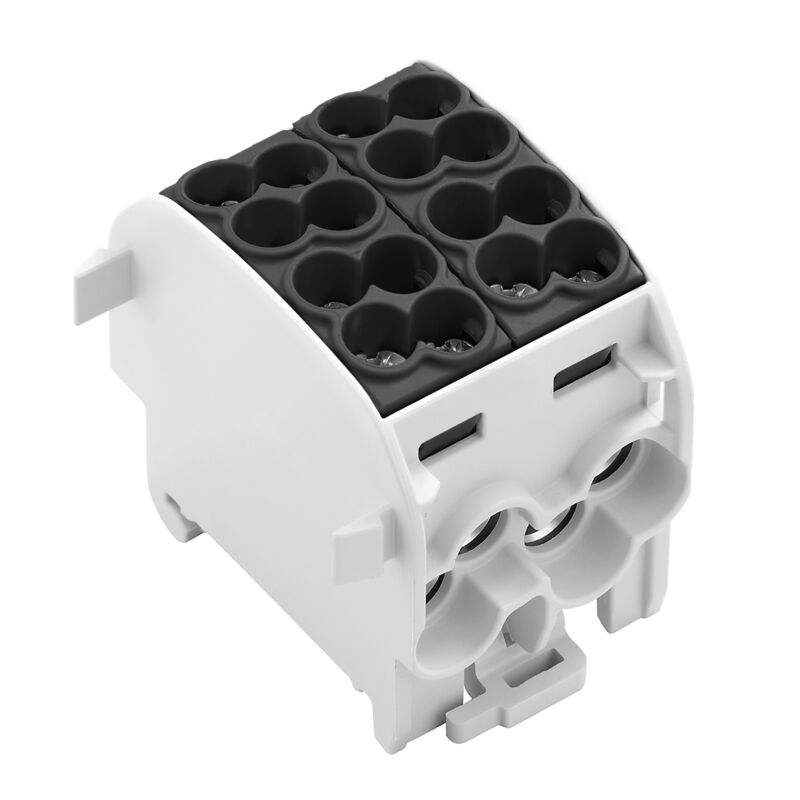

| Version | Potential distributor terminal, Screw connection, 1000 V, 152 A, Number of poles: 1, Light Grey |
| Order No. | 2731260000 |
| Type | WPD 201 4X25/4X16 BK |
| GTIN (EAN) | 4050118810509 |
| Qty. | 2 items |
| Depth | 49.3 mm |
| Depth (inches) | 1.941 inch |
| Height | 55.7 mm |
| Height (inches) | 2.193 inch |
| Width | 43.6 mm |
| Width (inches) | 1.717 inch |
| Net weight | 132 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 130 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 9436182c-fbd0-49e8-bf45-a0deac7233a9 |
| Material | Wemid |
| Colour | Light Grey |
| UL 94 flammability rating | V-0 |
| Version | Screw connection |
| End cover plate required | No |
| Number of levels | 1 |

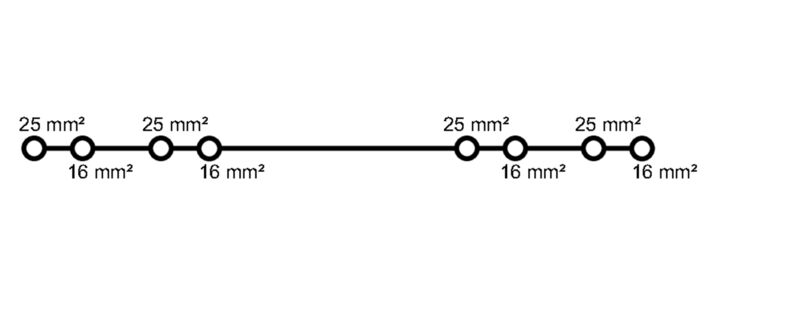

| Number of clamping points per level | 2 |
| Levels cross-connected internally | Yes |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Snap-on | Yes |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Connection direction | on side |
| Type of connection | Screw connection |
| Number of poles | 1 |
| Rated voltage | 1,000 V |
| Rated AC voltage | 1,000 V |
| Rated DC voltage | 1,000 V |

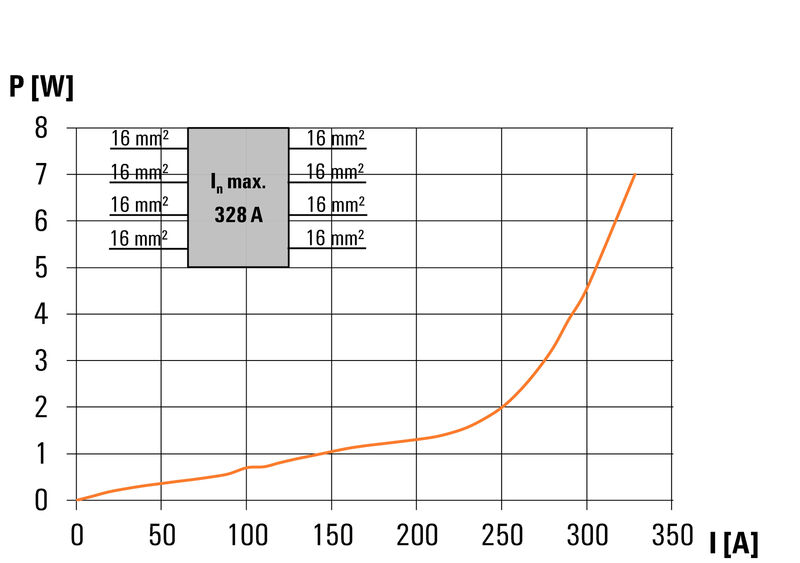

| Rated current | 152 A |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |

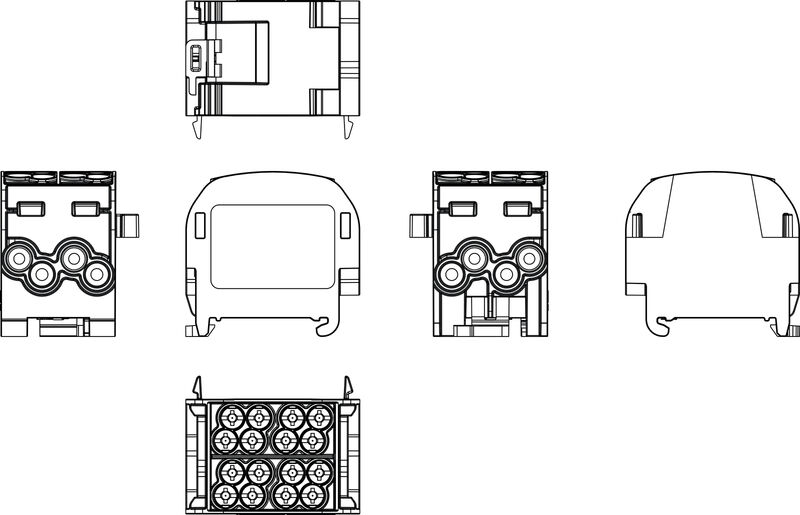

| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_253733) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2731260000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-19 |
| Approvals |    |
| ROHS | Conform |
