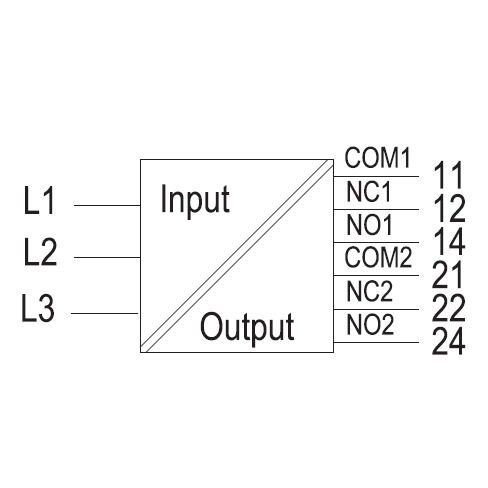

Limit value monitoring, Input : 3 phase, Output : Relay, 2 x relays

Item No. 2797880000
Download data sheet Product documentation
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Input Output Output (digital) General data Insulation coordination Connection data Classifications

Approvals

ROHS
Conform

General ordering data

Version
Limit value monitoring, Input : 3 phase, Output : Relay, 2 x relays
Order No.
2797880000
Type
WPM-VMR-3PH-PH-A
GTIN (EAN)
4064675257219
Qty.
1 items

Dimensions and weights

Depth
63 mm
Depth (inches)
2.48 inch
Height
90 mm
Height (inches)
3.543 inch
Width
22.5 mm
Width (inches)
0.886 inch
Net weight
79.55 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...60 °C
Humidity at operating temperature
0...95 % (no condensation)

Probability of failure

Safety integrity level (SIL) in compliance with IEC 61508
None

Input

Input frequency
40…60 Hz
Input voltage
400V AC (L-L) ±15%
Number inputs
1 x three-phase (R, S, T, N)
1

Output

Number of outputs
1

Output (digital)

Alarm function
Phase error
Number of digital outputs
2
Rated switching current
3 A
Switching voltage (AC), max.
250 V
Switching voltage (DC), max.
24 V
Type
Relay, 2 x SPDT

General data

Configuration
none
Mounting rail
TS 35
Power consumption
2.2 W
Power consumption, nominal
1.5 VA
Protection degree
IP20
Step response time
≤ 200 ms (10…90%)
Supply voltage
from the measuring circuit
Temperature coefficient
≤ 100 ppm/K

Insulation coordination

Galvanic isolation
between input ⁄ output ⁄ supply ⁄ relay
Insulation voltage
2 kV DC / 1 min.
Pollution severity
2
Rated voltage
300 V
Surge voltage category
II

Connection data

Type of connection
Screw connection
Tightening torque, min.
0.6 Nm
Tightening torque, max.
0.4 Nm
Clamping range, rated connection
2 mm²
Conductor cross-section (rated connection), min.
0.5 mm²
Conductor cross-section (rated connection), max.
2 mm²
Wire connection cross section AWG, min.
AWG 14
Wire connection cross section AWG, max.
AWG 30

Classifications

ETIM 8.0
EC002654
ETIM 9.0
EC002654
ETIM 10.0
EC002654
ECLASS 14.0
27-21-01-22
ECLASS 15.0
27-21-01-22
