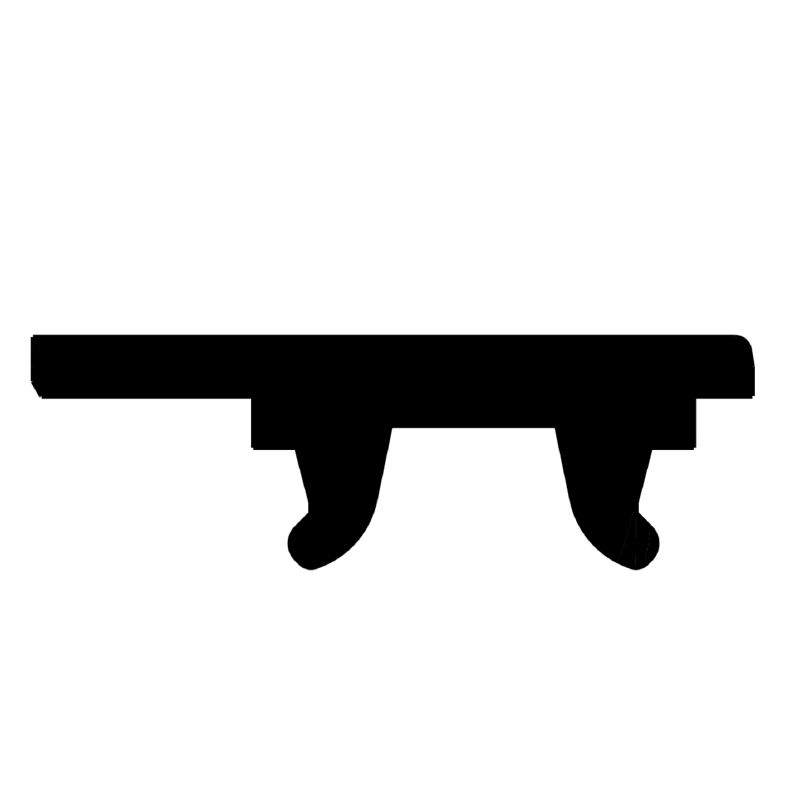

WS 10/3.5 PLUS MC NE WS

WS, Terminal marker, 10 x 3.5 mm, Pitch in mm (P): 3.50 Weidmueller, white

Item No. 2003760000

Properties

General ordering data

Version	WS, Terminal marker, 10 x 3.5 mm, Pitch in mm (P): 3.50 Weidmueller, white
Order No.	2003760000
Type	WS 10/3.5 PLUS MC NE WS
GTIN (EAN)	4050118424454
Qty.	960 items

Dimensions and weights

Height	10 mm
Height (inches)	0.394 inch
Width	3.5 mm
Width (inches)	0.138 inch
Net weight	0.075 g

Temperatures

Operating temperature range

-40...100 °C

General data

Application/manufacturer	Weidmueller
Colour	white
Halogen	No
Material	Polyamide 66
Number of markers per combination	1 MultiCard = Terminal marker
Number of markers per packaging unit	Form of supply: MultiCard
Operating temperature range	-40...100 °C
Operating temperature range, max.	100 °C
Operating temperature range, min.	-40 °C
Printed characters	neutral
UL 94 flammability rating	V-2
Width	3.5 mm

Connector markers

Pitch in mm (P)

3.5 mm

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65648)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2003760000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2003760000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2003760000&norm=0)
Product Change Notification	[Technical change to MultiCard material - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_102023) [Technical change to MultiCard material - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_102024) [MultiCard Material modification](https://mdcop.weidmueller.com/mediadelivery/asset/900_308560) [MultiCard Material Modifikation](https://mdcop.weidmueller.com/mediadelivery/asset/900_308561)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000761
ETIM 7.0	EC000761
ETIM 8.0	EC000761
ETIM 9.0	EC000761
ECLASS 9.0	27-14-11-37
ECLASS 9.1	27-14-11-37
ECLASS 10.0	27-14-11-37
ECLASS 11.0	27-28-11-01
ECLASS 12.0	27-28-11-01
ECLASS 13.0	27-28-11-01

Approvals

ROHS

Conform
