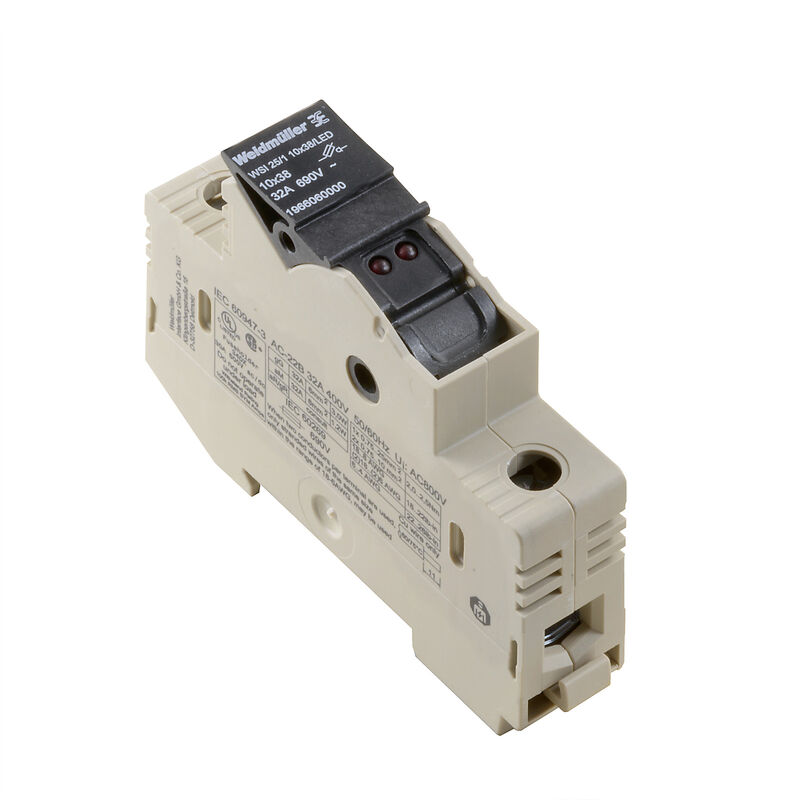

WSI 25/1 10X38/LED 690V

Fuse terminal, Screw connection, Fuse cartridge, with LED, in closed state, Screw connection, 25 mm², 690 V, 32 A, max. 3W for gG/gL max. 1.2W for aM, dark beige

Item No. 1966060000

Properties

General ordering data

Version	Fuse terminal, Screw connection, Fuse cartridge, with LED, in closed state, Screw connection, 25 mm², 690 V, 32 A, max. 3W for gG/gL max. 1.2W for aM, dark beige
Order No.	1966060000
Type	WSI 25/1 10X38/LED 690V
GTIN (EAN)	4032248658114
Qty.	12 items

Dimensions and weights

Depth	58 mm
Depth (inches)	2.283 inch
Height	81 mm
Height (inches)	3.189 inch
Width	18 mm
Width (inches)	0.709 inch
Net weight	51.333 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material data

Material	PA 66/6
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version	Screw connection Fuse cartridge with LED in closed state
End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection)

Wire connection cross section, finely stranded, two clampable wires, min.	0.75 mm²
Wire cross-section, finely stranded, two clampable wires, max.	10 mm²

Additional technical data

Open sides	closed
Type of mounting	Snap-on

Conductors for clamping (rated connection)

Clampable conductor	Connection specification: Screw connection Cross-section for conductor connection: Type: solid, H05(07) V-U min.: 1.5 mm² max.: 25 mm² nominal: 25 mm² wire end ferrule: Stripping length: min.: 11 mm max.: 11 mm nominal: 11 mm Tightening torque: min.: 2 Nm max.: 2.5 Nm Connection specification: Screw connection Cross-section for conductor connection: Type: stranded, H07V-R min.: 1.5 mm² max.: 25 mm² nominal: 25 mm² wire end ferrule: Stripping length: min.: 11 mm max.: 11 mm nominal: 11 mm Tightening torque: min.: 2 Nm max.: 2.5 Nm Connection specification: Screw connection Cross-section for conductor connection: Type: flexible, H05(07) V-K min.: 1.5 mm² max.: 25 mm² nominal: 25 mm² wire end ferrule: Stripping length: min.: 11 mm max.: 11 mm nominal: 11 mm Tightening torque: min.: 2 Nm max.: 2.5 Nm
Clamping range, max.	25 mm²
Clamping range, min.	1.5 mm²
Connection cross-section, stranded, max.	25 mm²
Connection cross-section, stranded, min.	1.5 mm²
Connection direction	on side
Number of connections	2
Stripping length	11 mm
Tightening torque, max.	2.5 Nm
Tightening torque, min.	2 Nm
Type of connection	Screw connection
Wire connection cross section AWG, max.	AWG 4
Wire connection cross section AWG, min.	AWG 18
Wire connection cross section, finely stranded, max.	25 mm²
Wire connection cross section, finely stranded, min.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	1.5 mm²
Wire connection cross-section, solid core, max.	25 mm²
Wire connection cross-section, solid core, min.	1.5 mm²

CSA rating data

Certificate No. (CSA)	238018-1868186
Wire cross section max. (CSA)	3 AWG
Wire cross section min. (CSA)	18 AWG

Dimensions

TS 35 offset

40.5 mm

Fuse terminals

Cartridge fuse

max. 3W for gG/gL max. 1.2W for aM

General

Rail	TS 35
Standards	IEC 60947-7-3
Wire connection cross section AWG, max.	AWG 4
Wire connection cross section AWG, min.	AWG 18

Rating data

Rated cross-section	25 mm²
Rated voltage	690 V
Rated voltage to adjoining terminal	690 V
Rated DC voltage	690 V
Rated current	32 A
Current at maximum wires	32 A
Standards	IEC 60947-7-3
Volume resistance according to IEC 60947-7-x	0.32 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	3.23 W
Pollution severity	3

Important note

Product information

The voltage depends on the selected fuse element or the selected indicator light

Downloads

Approval/Certificate/Document of Conformity	[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37335) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284530)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65408)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1966060000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1966060000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1966060000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000899
ETIM 7.0	EC000899
ETIM 8.0	EC000899
ETIM 9.0	EC000899
ECLASS 9.0	27-14-11-16
ECLASS 9.1	27-14-11-16
ECLASS 10.0	27-14-11-16
ECLASS 11.0	27-14-11-16
ECLASS 12.0	27-14-11-16
ECLASS 13.0	27-25-01-13

Approvals

Approvals	![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![CULUS](/picture/CULUS.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E175322
