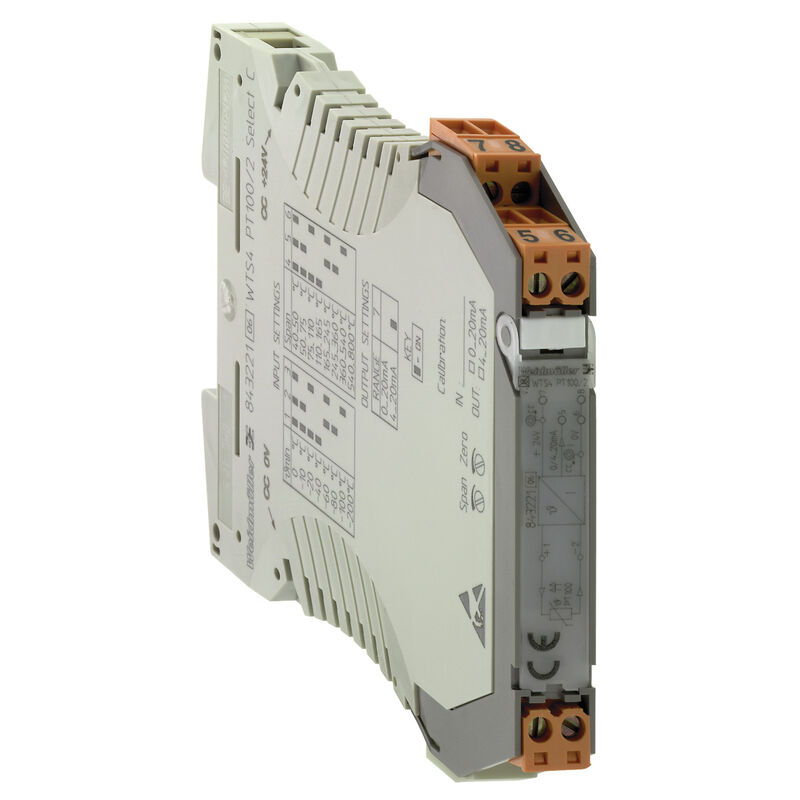

Properties

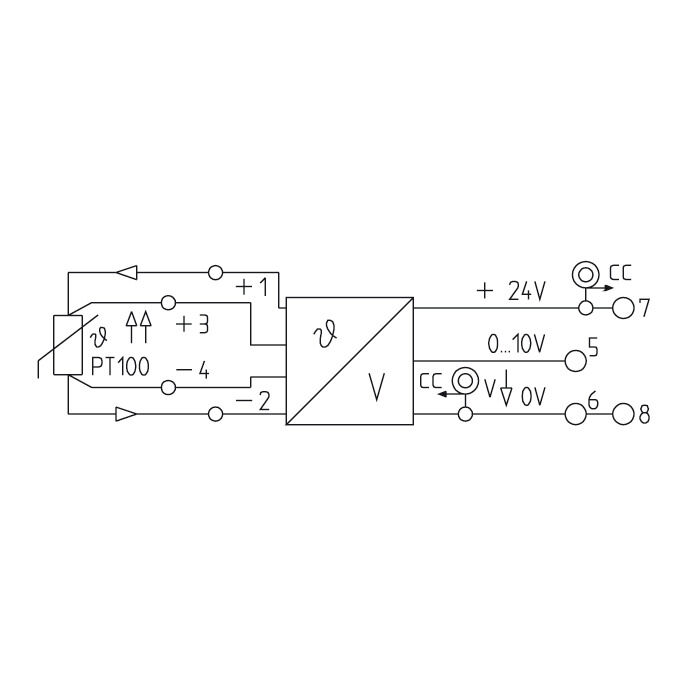

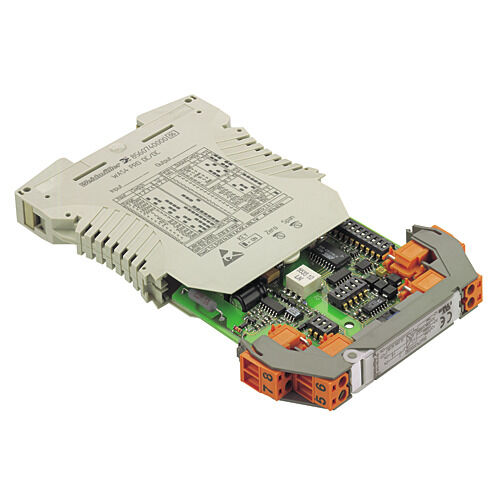

| Version | RTD transformer, PT100, 2-/3-/4-wire connection technology, Configurable, Input : Temperature, PT100 (4- wire), Output : 0-10 V |
| Order No. | 8432250000 |
| Type | WTZ4 PT100/4 V 0-10V |
| GTIN (EAN) | 4032248110407 |
| Qty. | 1 items |
| Delivery status | This article will no longer be available in the future. |
| Available until | 22.10.2023 |
| Alternative product | [1375520000](~/p/1375520000) |
| Depth | 112.4 mm |
| Depth (inches) | 4.425 inch |
| Width | 12.5 mm |
| Width (inches) | 0.492 inch |
| Length | 92.4 mm |
| Length (inches) | 3.638 inch |
| Net weight | 127 g |
| Storage temperature | -20 °C...85 °C |
| Operating temperature | 0 °C...55 °C |
| SIL in compliance with IEC 61508 | None |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | c2a21576-d875-4548-ae68-5e7f85ddf0c7 |
| Number of inputs | 1 |
| Sensor | PT100 (4 wire) |
| Sensor supply | 1.45 mA |
| Temperature input range | Adjustable from -200...+800°C |
| Load impedance current | ≤ 500 Ω |
| load impedance voltage | ≥ 1 kΩ |
| Number of outputs | 1 |
| Output voltage, note | 0...10 V |
| Accuracy | 100K ≤ MB < 600K: 0,.1 %; MB ≥ 600K: 0.2 %; of the MB |
| Configuration |
DIP switch
Potentiometer and PT100-Simulator |
| Current consumption | < 38 mA @ IOUT = 20 mA |
| Galvanic isolation | Without isolation |
| Linearity | Yes |
| Protection degree | IP20 |
| Rail | TS 35 |
| Temperature coefficient |
Measuring range ≥ 200 K: ≤ 200 ppm/K (typ. 80 ppm/K) 100 K <= measuring range <200 K: <225 ppm/K (typ. 90 ppm/K) |
| Voltage supply | 24 V DC ± 20 % |
| EMC standards |
EN 55011
EN 61000-6 |
| Galvanic isolation | Without isolation |
| Type of connection | Tension-clamp connection |
| Stripping length, rated connection | 7 mm |
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Product information |
This product will soon be replaced by a new product. Please do not use with new systems. Please contact our technical support. |
| Approval/Certificate/Document of Conformity | [Application notes -- Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35431) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_206133) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8432250000) |
| Product Change Notification | [20220218 Technical change - WAVE series’ signal conditioners WS WZ](https://mdcop.weidmueller.com/mediadelivery/asset/900_252007) |
| User Documentation | [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_35630) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002919 |
| ETIM 7.0 | EC002919 |
| ETIM 8.0 | EC002919 |
| ETIM 9.0 | EC002919 |
| ECLASS 9.0 | 27-21-01-29 |
| ECLASS 9.1 | 27-21-01-29 |
| ECLASS 10.0 | 27-21-01-29 |
| ECLASS 11.0 | 27-21-01-29 |
| ECLASS 12.0 | 27-21-01-29 |
| ECLASS 13.0 | 27-21-01-29 |
| ECLASS 14.0 | 27-21-01-29 |
| Long specification |
PT100 temperature measuring transformer, configured with DIP switches, 4-wire connection technology Add-on housing for TS35 rail mounting Type WTZ4 PT100/4 C 0-10V |
| Short specification |
PT100 temperature measuring transformer, configured with DIP switches, 4-wire connection technology |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
