Properties
| Version | Auxiliary connection (terminal), 10 mm², Number of connections: 1 |
| Order No. | 1802810000 |

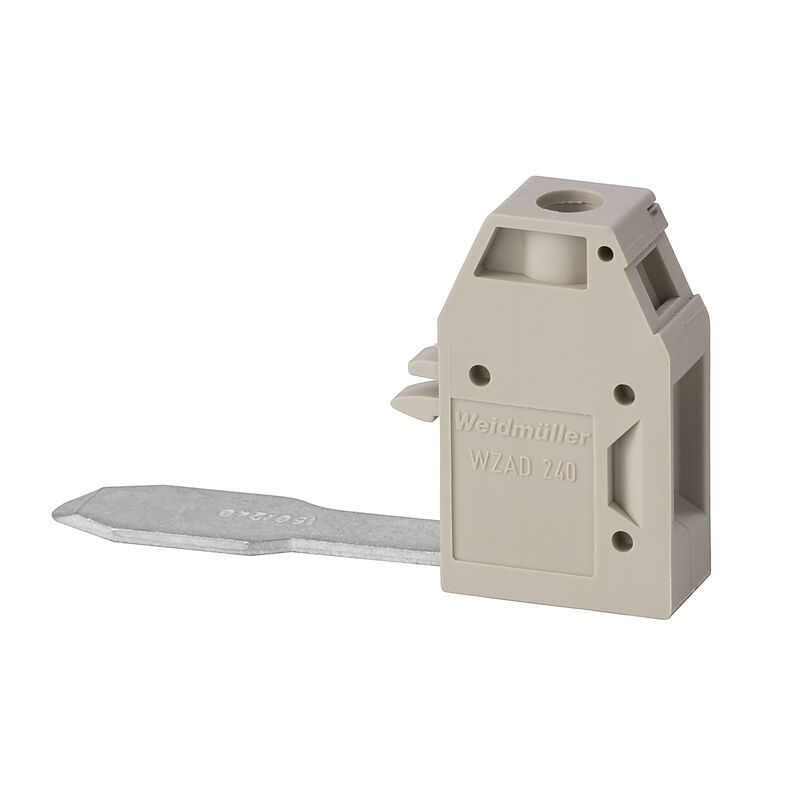

| Type | WZAD 240 |
| GTIN (EAN) | 4032248313754 |
| Qty. | 5 items |
| Depth | 34.7 mm |
| Depth (inches) | 1.366 inch |
| Height | 58.6 mm |
| Height (inches) | 2.307 inch |
| Width | 10.15 mm |
| Width (inches) | 0.4 inch |
| Net weight | 17.6 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | Additional connection |
| Number of levels | 1 |
| Number of clamping points per level | 1 |
| Explosion-tested version | No |
| Installation advice |
Feed-through (bushing)
Direct mounting |
| Type of fixing | Snap-on |
| Blade size | 1.0 x 5.5 mm |
| Clamping range, max. | 10 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping screw | M 4 |
| Connection cross-section, finely stranded, max. | 10 mm² |
| Connection cross-section, finely stranded, min. | 0.5 mm² |
| Connection cross-section, stranded, max. | 10 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | on side |
| Number of connections | 1 |
| Stripping length | 11 mm |
| Tightening torque, max. | 1.8 Nm |
| Tightening torque, min. | 1.2 Nm |
| Twin wire-end ferrules, max. | 6 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Pitch in mm (P) | 10 mm |
| Installation advice |
Feed-through (bushing)
Direct mounting |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 20 |
| Rated cross-section | 10 mm² |
| Rated voltage | 1,000 V |
| Rated DC voltage | 1,000 V |
| Rated current | 57 A |
| Volume resistance according to IEC 60947-7-x | 0.56 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 1.82 W |
| Pollution severity | 3 |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_236625) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1802810000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1802810000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1802810000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-08 |
| ROHS | Conform |
Is accessory of
-
Item No.:1802780000Packaging unit:2 PC
Feed-through terminal block, Screw connection, 240 mm², 1000 V, 415 A, Number of connections: 2
-
Item No.:1822210000Packaging unit:2 PC
Feed-through terminal block, Screw connection, 240 mm², 1000 V, 415 A, Number of connections: 2
Terminal BlocksApplication rangePower feed-inClamping yoke technologyFeed-through terminal blocks240 mm²
