Properties
| Version | Auxiliary connection (terminal) |
| Order No. | 1066200000 |

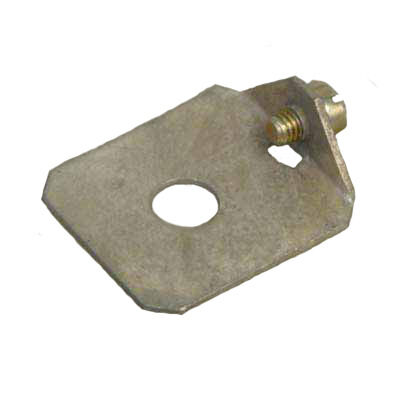

| Type | WZAF 70 |
| GTIN (EAN) | 4008190169831 |
| Qty. | 10 items |
| Depth | 10 mm |
| Depth (inches) | 0.394 inch |
| Height | 30 mm |
| Height (inches) | 1.181 inch |
| Width | 27 mm |
| Width (inches) | 1.063 inch |
| Net weight | 8.3 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | tinned copper |
| Colour | Silver grey |
| Version | Additional connection |
| Explosion-tested version | No |
| Installation advice |
Feed-through (bushing)
Direct mounting |
| Type of fixing | Plugged |
| Pitch in mm (P) | 27 mm |
| Installation advice |
Feed-through (bushing)
Direct mounting |
| Rated current | 32 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_46967) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1066200000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1066200000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-08 |
| ECLASS 14.0 | 27-25-03-08 |
| ROHS | Conform |
Is accessory of
-
Item No.:1968960000Packaging unit:25 PC
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 50 mm², Threaded stud connection
-
Item No.:1780860000Packaging unit:25 PC
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 50 mm², Threaded stud connection
-
Item No.:1049230000Packaging unit:5 PC
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 70 mm², Threaded stud connection, Direct mounting, TS 35
-
Item No.:1029400000Packaging unit:5 PC
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 70 mm², Threaded stud connection, Direct mounting
-
Item No.:1028480000Packaging unit:10 PC
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 70 mm², Threaded stud connection, Direct mounting
-
Item No.:1028400000Packaging unit:10 PC
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 70 mm², Threaded stud connection
-
Item No.:1789780000Packaging unit:25 PC
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 50 mm², Threaded stud connection
