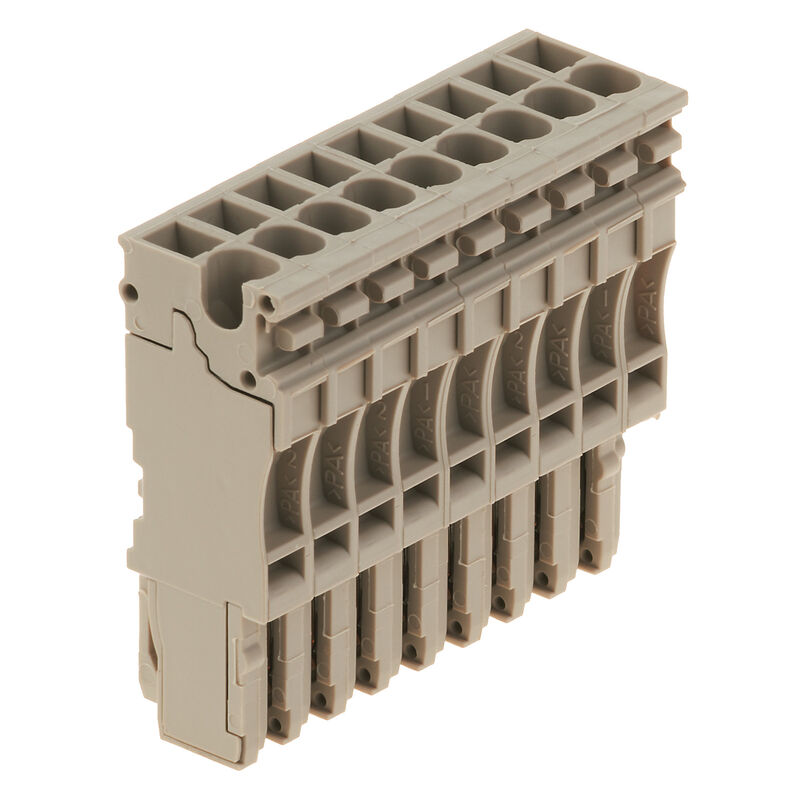

ZP 2.5/1AN/9

Z-series, Plug-in connector, dark beige, Direct mounting

Item No. 1815550000

Properties

General ordering data

Version	Z-series, Plug-in connector, dark beige, Direct mounting
Order No.	1815550000
Type	ZP 2.5/1AN/9
GTIN (EAN)	4032248342617
Qty.	20 items

Dimensions and weights

Depth	41 mm
Depth (inches)	1.614 inch
Height	16 mm
Height (inches)	0.63 inch
Width	45.9 mm
Width (inches)	1.807 inch
Net weight	28.6 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version	Plug-in connector Tension-clamp connection
End cover plate required	No
Number of levels	1
Number of clamping points per level	1
Levels cross-connected internally	No
PE connection	No

Additional technical data

Installation advice	Direct mounting
Open sides	closed
Type of mounting	Plugged

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	4 mm²
Clamping range, min.	0.13 mm²
Connection direction	top
Gauge to IEC 60947-1	A2
Number of connections	9
Stripping length	10 mm
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Cross-section for conductor connection: nominal: 0.5 mm² nominal: 10 mm min.: 6 mm max.: 10 mm Cross-section for conductor connection: nominal: 0.75 mm² nominal: 10 mm min.: 6 mm max.: 12 mm Cross-section for conductor connection: nominal: 1 mm² nominal: 10 mm min.: 6 mm max.: 12 mm Cross-section for conductor connection: nominal: 1.5 mm² min.: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 2.5 mm² min.: 10 mm max.: 12 mm
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Cross-section for conductor connection: nominal: 0.5 mm² nominal: 10 mm min.: 6 mm max.: 10 mm Cross-section for conductor connection: nominal: 0.75 mm² nominal: 10 mm min.: 6 mm max.: 12 mm Cross-section for conductor connection: nominal: 1 mm² nominal: 10 mm min.: 6 mm max.: 12 mm Cross-section for conductor connection: nominal: 1.5 mm² min.: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 2.5 mm² min.: 10 mm max.: 12 mm
Type of connection	Plug-in connection
Wire connection cross section AWG, max.	AWG 26
Wire connection cross section AWG, min.	AWG 12
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate number (cCSAus)	154685-1460993
Current size C (cCSAus)	20 A
Current size D (cCSAus)	5 A
Voltage size C (cCSAus)	300 V
Voltage size D (cCSAus)	600 V
Wire cross section max. (cCSAusX)	12 AWG
Wire cross section min. (cCSAusX)	26 AWG

Dimensions

TS 35 offset

39 mm

General

Installation advice	Direct mounting
Number of poles	9
Standards	In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 26
Wire connection cross section AWG, min.	AWG 12

Rating data

Rated cross-section	2.5 mm²
Rated voltage	500 V
Rated voltage to adjoining terminal	500 V
Max. voltage of clamp support & pluggable system	690 V
Rated DC voltage	500 V
Rated current	24 A
Current at maximum wires	24 A
Standards	In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	6 kV
Rated impulse withstand voltage to adjacent terminal	6 kV
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

UL rating data

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	12 AWG
Conductor size Factory wiring min. (cURus)	26 AWG
Conductor size Field wiring max. (cURus)	12 AWG
Conductor size Field wiring min. (cURus)	26 AWG
Current size C (cURus)	20 A
Current size D (cURus)	5 A
Voltage size C (cURus)	300 V
Voltage size D (cURus)	600 V

Downloads

Approval/Certificate/Document of Conformity	[DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152130) [CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_185121) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_185122) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64107)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1815550000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1815550000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1815550000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002848
ETIM 7.0	EC002848
ETIM 8.0	EC002848
ETIM 9.0	EC002848
ECLASS 9.0	27-14-11-92
ECLASS 9.1	27-14-11-92
ECLASS 10.0	27-14-11-92
ECLASS 11.0	27-14-11-92
ECLASS 12.0	27-14-11-92
ECLASS 13.0	27-25-03-90

Approvals

Approvals	![CCSAUS](/picture/CCSAUS.gif) ![CE](/picture/CE.gif) ![CURUS](/picture/CURUS.gif) ![DETNORVER](/picture/DETNORVER.gif) ![KEMAKEUR](/picture/KEMAKEUR.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
