Properties
| Version | Z-series, Plug-in connector, Direct mounting |
| Order No. | 1007880000 |

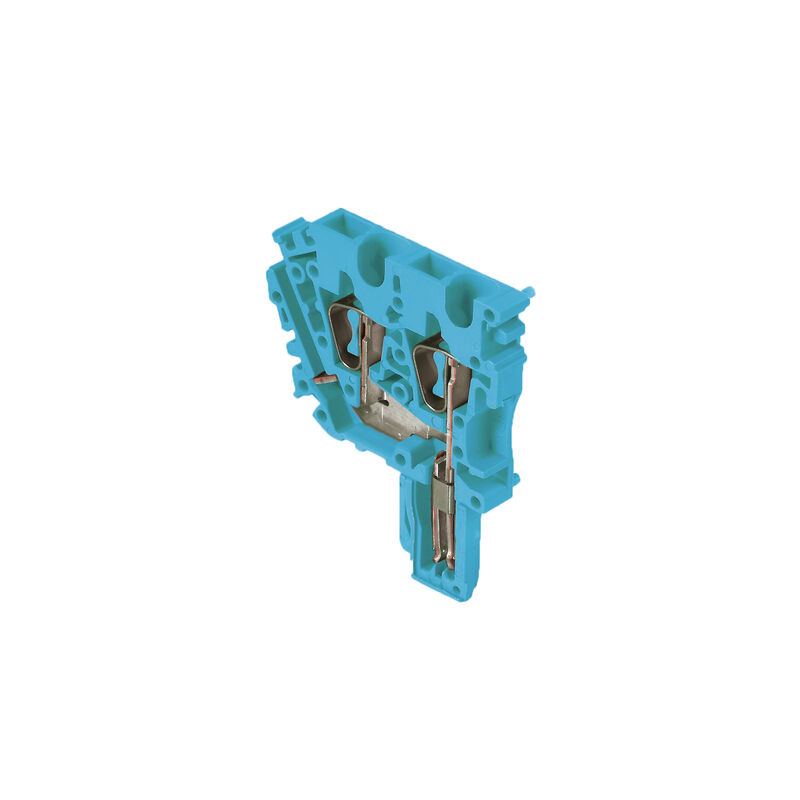

| Type | ZP 2.5/2AN/QV ZAO.RA BL |
| GTIN (EAN) | 4032248711253 |
| Qty. | 50 items |
| Depth | 41 mm |
| Depth (inches) | 1.614 inch |
| Height | 36.5 mm |
| Height (inches) | 1.437 inch |
| Width | 10.2 mm |
| Width (inches) | 0.402 inch |
| Net weight | 0.02 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 |
| Continuous operating temp., max. | 120 |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Version |
Set of connectors
Cross-connector pluggable 2-conductor connection Tension-clamp connection With assembly peg |
| End cover plate required | Yes |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| PE connection | No |
| Installation advice | Direct mounting |
| Open sides | right |
| Type of mounting | Plugged |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.13 mm² |
| Number of connections | 2 |
| Stripping length | 10 mm |
| Type of connection | Plug-in connection |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Certificate number (cCSAus) | 154685-1460993 |
| Current size C (cCSAus) | 20 A |
| Current size D (cCSAus) | 5 A |
| Voltage size C (cCSAus) | 300 V |
| Voltage size D (cCSAus) | 600 V |
| Wire cross section max. (cCSAusX) | 12 AWG |
| Wire cross section min. (cCSAusX) | 26 AWG |
| Installation advice | Direct mounting |
| Number of poles | 1 |
| Standards | In accordance with IEC 60947-7-1 |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 500 V |
| Max. voltage of clamp support & pluggable system | 690 V |
| Rated DC voltage | 500 V |
| Rated current | 24 A |
| Standards | In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Current size C (cURus) | 20 A |
| Current size D (cURus) | 5 A |
| Voltage size C (cURus) | 300 V |
| Voltage size D (cURus) | 600 V |
| Approval/Certificate/Document of Conformity |
[DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152130)
[CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_185121) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_185122) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59334) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1007880000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1007880000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1007880000&norm=0) |
| User Documentation |
[Usage of terminals in EXi atmospheres](https://mdcop.weidmueller.com/mediadelivery/asset/900_73881)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [User Manual ZP 2.5](https://mdcop.weidmueller.com/mediadelivery/asset/900_229219) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| Approvals |      |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
